Dura Double

Dura 52W LED Anti-Corrosive 5ft Double Batten with Microwave Sensor & Corridor Dim Function - 4000K

Code
06718
Next Delivery
21/10/2024 - 200 items
Technical Specification
Volts (V)
220/240
Watts (W)
52
Colour Temp (K)
4000
Dimmable?
Yes
Lumens (lm)
6850
Energy Rating
E

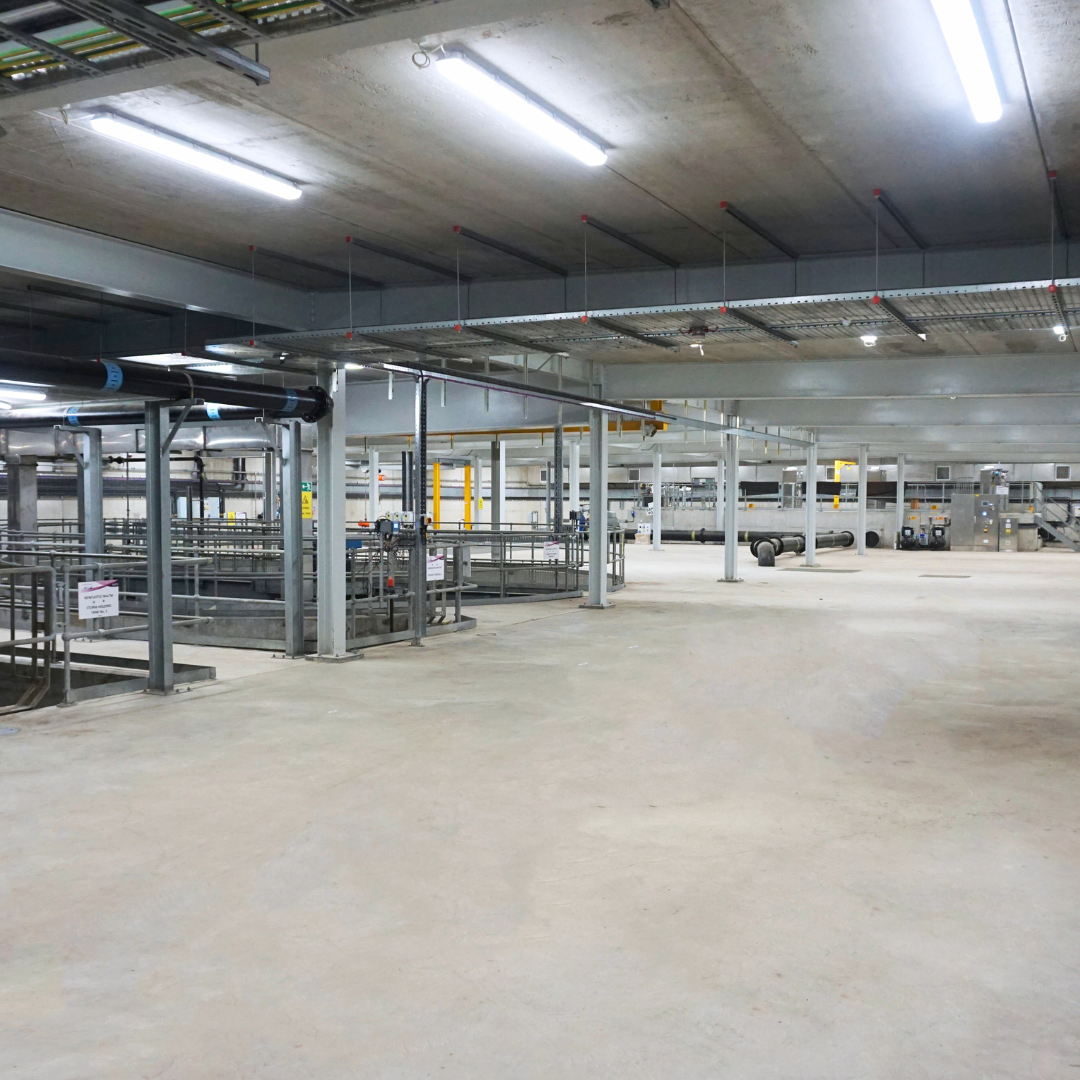

The Dura LED Anti Corrosive Batten is one of BELL’s flagship luminaires. This fully enclosed luminaire comes with stainless steel diffuser clips, ideal for exterior lighting projects that are open to the elements.
Download Specification
Full Specification
Downloads
Name
Dura 52W LED Anti-Corrosive 5ft Double Batten with Microwave Sensor & Corridor Dim Function - 4000K
Volts (V)
220/240
Watts (W)
52
Colour Temp (K)
4000
Dimmable?
Yes
Lumens (lm)
6850
Life Hours
50000
Beam Angle
128°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
1080mA
Energy Consumption (kWh/1000h)
52
IP Rating
IP65
Commodity Code
9405409990
EAN
5013588067186
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.0201525
Outer Box Qty
4
Height (mm)
90
Width (mm)
125
Length (mm)
1530
Outer Box Height (mm)
1610
Outer Box Width (mm)
285
Outer Box Depth (mm)
210
Candelas (cd)
1950
Equivalent Watts (W)
110
Single Carton Height (mm)
1570
Single Carton Width (mm)
135
Single Carton Depth (mm)
95
Outer Box Volume
0.0963585
Individual Product Weight (kg)
2.77
Single Carton Weight (KG)
3.09
Outer Box Weight (kg)
13.3
Plastic Packaging Weight (kg)
0.03
Impact Protection
IK10
Energy Rating
E
Lumens per Watt (lm/W)
132
Inner Box Qty
1
Power Factor
0.97kW
Electric Class
1
Driver Integral?
Yes
Catalogue Page

Instructions

Photometric Data

Product Image
