Dura Double

Dura 60W LED Anti-Corrosive 6ft Double Batten - 4000K

Code
06766
Next Delivery
14/04/2025 - 996 items
Technical Specification
Volts (V)
220/240
Watts (W)
60
Colour Temp (K)
4000
Lumens (lm)
9547

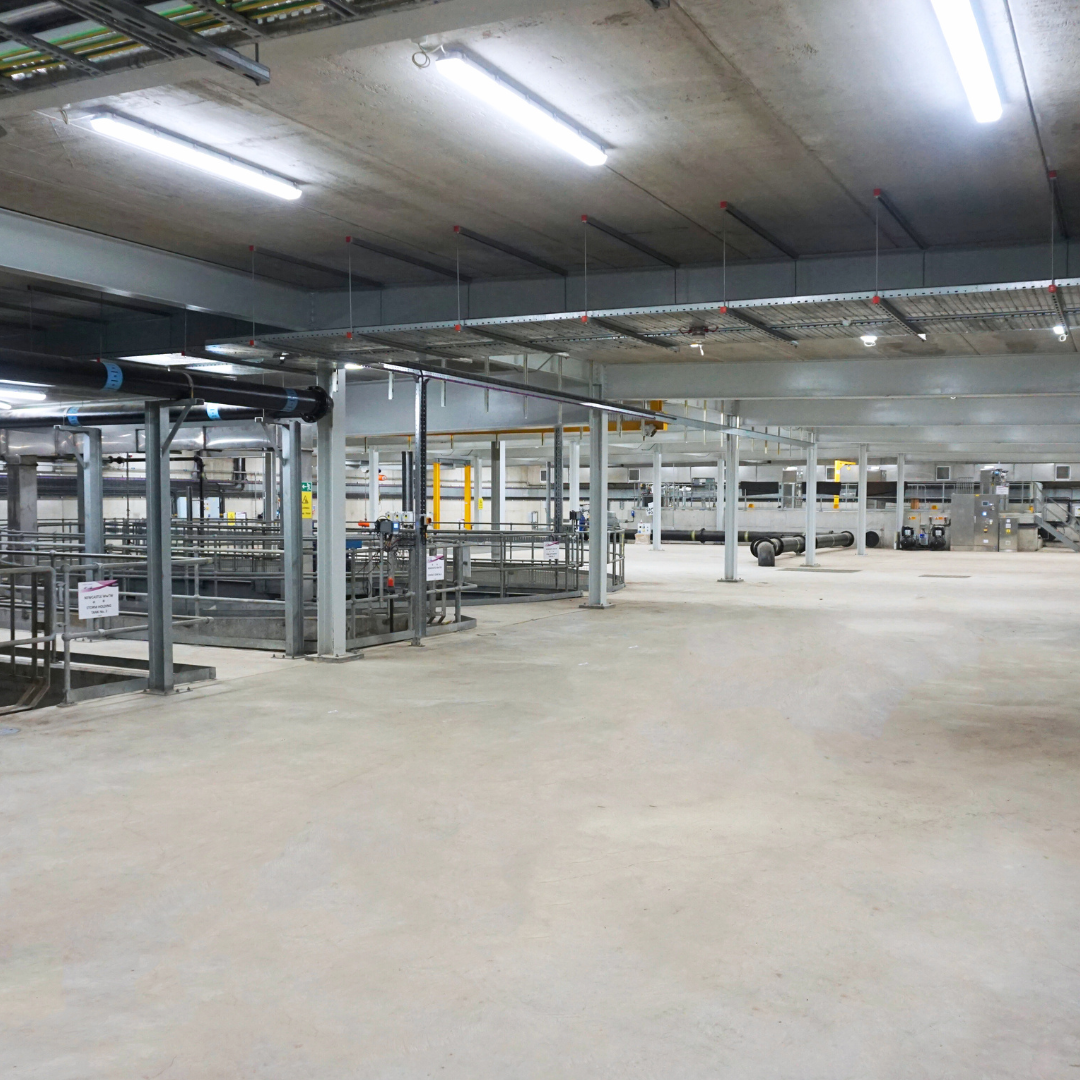

The Dura LED Anti Corrosive Batten is one of BELL’s flagship luminaires. This fully enclosed luminaire comes with stainless steel diffuser clips, ideal for exterior lighting projects that are open to the elements.
Download Specification
Full Specification
Downloads
Name
Dura 60W LED Anti-Corrosive 6ft Double Batten - 4000K
Volts (V)
220/240
Watts (W)
60
Colour Temp (K)
4000
Lumens (lm)
9547
Life Hours
50000
Beam Angle
131°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
720mA
Energy Consumption (kWh/1000h)
60
IP Rating
IP66
Commodity Code
9405423100
EAN
5013588067667
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.023533875
Outer Box Qty
4
Height (mm)
90
Length (mm)
1828
Outer Box Height (mm)
1865
Outer Box Width (mm)
290
Outer Box Depth (mm)
220
Candelas (cd)
2150
Equivalent Watts (W)
140
Single Carton Height (mm)
1835
Single Carton Width (mm)
135
Single Carton Depth (mm)
95
Outer Box Volume
0.118987
Individual Product Weight (kg)
3.3
Single Carton Weight (KG)
3.7
Outer Box Weight (kg)
15.93
Plastic Packaging Weight (kg)
0.04
Impact Protection
IK10
Lumens per Watt (lm/W)
160
Power Factor
0.97
Electric Class
1
Driver Integral?
Yes
Depth (mm)
125
Product Category
LED Luminaires - Plastic
Product Application
LED Batten
Outer Carton Barcode
0676600000004
