Dura Single

Dura 20W LED Anti-Corrosive 4ft Single Batten - 4000K

Code
06722
Technical Specification
Volts (V)
220/240
Watts (W)
20
Colour Temp (K)
4000
Lumens (lm)
3448
Energy Rating
E

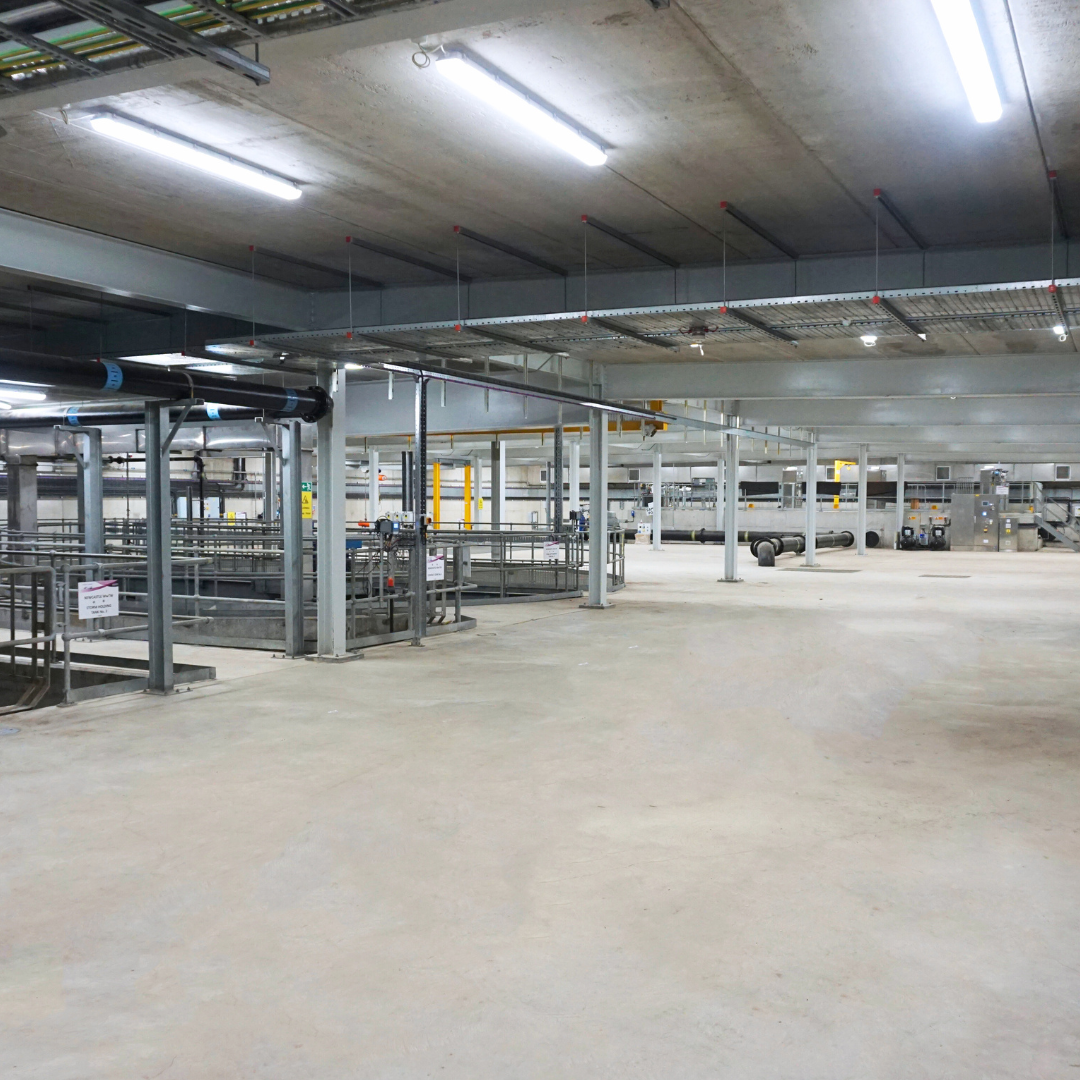

The Dura LED Anti Corrosive Batten is one of BELL’s flagship luminaires. This fully enclosed luminaire comes with stainless steel diffuser clips, ideal for exterior lighting projects that are open to the elements.
Full Specification
Downloads
Name
Dura 20W LED Anti-Corrosive 4ft Single Batten - 4000K
Volts (V)
220/240
Watts (W)
20
Colour Temp (K)
4000
Lumens (lm)
3448
Life Hours
50000
Beam Angle
143°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
540mA
Energy Consumption (kWh/1000h)
20
IP Rating
IP66
Commodity Code
9405409990
EAN
5013588067223
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.0127
Outer Box Qty
6
Height (mm)
90
Width (mm)
90
Length (mm)
1263
Outer Box Height (mm)
1310
Outer Box Width (mm)
310
Outer Box Depth (mm)
220
Candelas (cd)
700
Equivalent Watts (W)
45
Single Carton Height (mm)
1270
Single Carton Width (mm)
100
Single Carton Depth (mm)
100
Individual Product Weight (kg)
1.57
Single Carton Weight (KG)
1.77
Outer Box Weight (kg)
11.95
Plastic Packaging Weight (kg)
0.01
Outer Box Volume
0.08934
Impact Protection
IK10
Energy Rating
E
Lumens per Watt (lm/W)
173
Inner Box Qty
1
Power Factor
0.96kW
Electric Class
1
Driver Integral?
Yes
