Ultra Double

Ultra 40W LED Integrated 4ft Double Batten with Microwave Sensor & Corridor Dim Function - 4000K

Code
10210
Technical Specification
Volts (V)
220/240
40W Ultra LED Integrated Batten - 4000K, Double with Mircowave Sensor + Corridor Dim Function 1230mm (4ft)
Download Specification
Full Specification
Downloads
Name
Ultra 40W LED Integrated 4ft Double Batten with Microwave Sensor & Corridor Dim Function - 4000K
Volts (V)
220/240
Candelas
1400
Life Hours
50000
Beam Angle
128°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
1080mA
Energy Consumption (kWh/1000h)
40
IP Rating
IP20
Commodity Code
9405423990
EAN
5013588102108
Outer Box Qty
6
Height (mm)
82
Length (mm)
1230
Outer Box Height (mm)
260
Outer Box Width (mm)
290
Outer Box Depth (mm)
1250
Outer Box Volume
0.09425
Individual Product Weight (kg)
1.97
Outer Box Weight (kg)
14
Lumens per Watt (lm/W)
176
Electric Class
Class I
Power Factor
>0.9
Primary Material
Steel
Operating Temperature
-30°C - +35°C
Depth (mm)
109
Wattage (W)
40
Equivalent Wattage (W)
90
Colour Temperature (K)
4000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
2.14
Single box Height (mm)
86
Single box Width (mm)
114
Single Box Depth (mm)
1236
Single Box Volume
0.01212
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Battens
EDATA Product Range
Ultra
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
7047
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

Instructions

Product Image

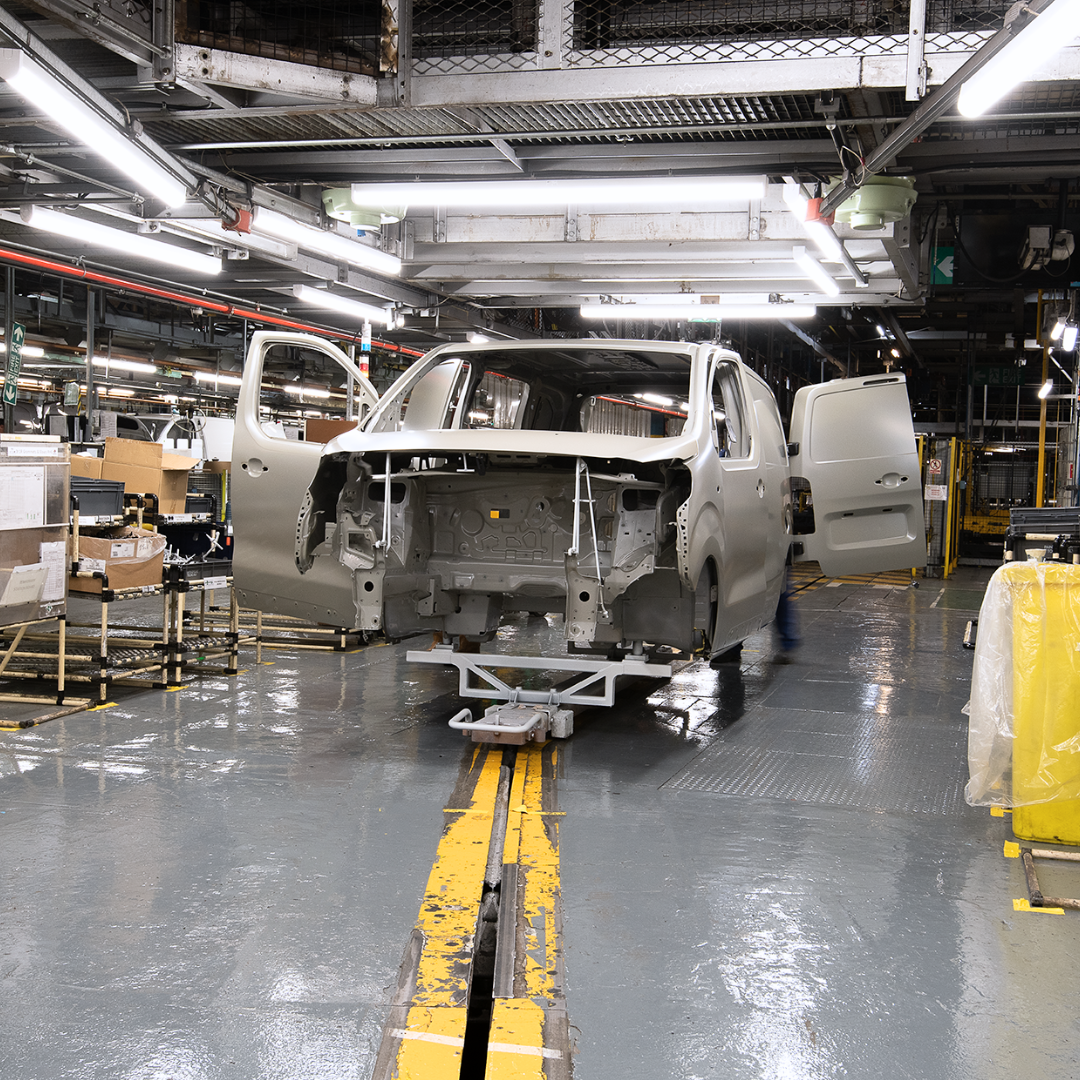

Case Study Image
