Ultra Double

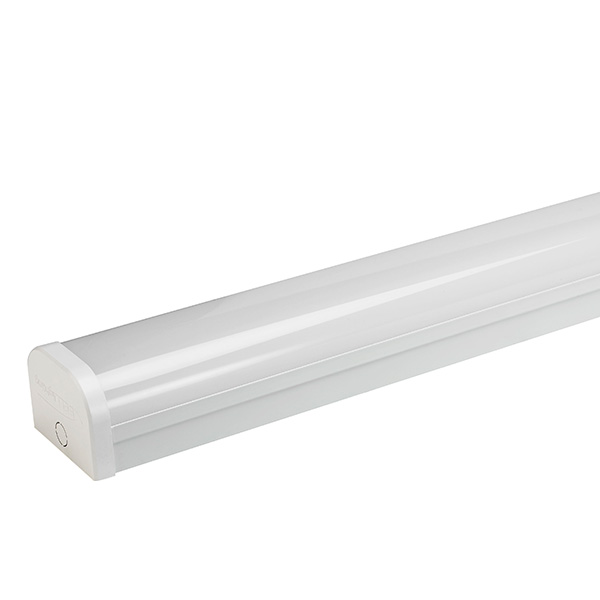

Ultra 60W LED Integrated 5ft Double Batten - 4000K

Code
10218
Technical Specification
Volts (V)
220/240
Watts (W)
60
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
7600
Energy Rating
E
60W Ultra LED Integrated Batten - 4000K, Double 1530mm (5ft)
Download Specification
Full Specification
Downloads
Name
Ultra 60W LED Integrated 5ft Double Batten - 4000K
Volts (V)
220/240
Watts (W)
60
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
7600
Life Hours
50000
Beam Angle
128°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
1320mA
Energy Consumption (kWh/1000h)
60
IP Rating
IP20
Commodity Code
9405409990
EAN
5013588102184
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.01663
Outer Box Qty
4
Height (mm)
82
Width (mm)
109
Length (mm)
1530
Outer Box Height (mm)
1555
Outer Box Width (mm)
250
Outer Box Depth (mm)
210
Candelas (cd)
2000
Equivalent Watts (W)
125
Single Carton Height (mm)
1540
Single Carton Width (mm)
120
Single Carton Depth (mm)
90
Individual Product Weight (kg)
2.37
Single Carton Weight (KG)
2.77
Outer Box Weight (kg)
11.54
Plastic Packaging Weight (kg)
0.02
Outer Box Volume
0.08164
Inner Box Qty
1
Energy Rating
E
Lumens per Watt (lm/W)
127
Electric Class
1
Driver Integral?
Yes
Power Factor
0.98kW
