Ultra Double

Ultra 80W LED Integrated 6ft Double Batten in Emergency - 4000K

Code
10231
Technical Specification
Volts (V)
220/240
80W Ultra LED Integrated Batten - 4000K, Double Emergency 1795mm (6ft)
Download Specification
Full Specification
Downloads
Name
Ultra 80W LED Integrated 6ft Double Batten in Emergency - 4000K
Volts (V)
220/240
Candelas
2850
Life Hours
50000
Beam Angle
134°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
1080mA
Energy Consumption (kWh/1000h)
80
IP Rating
IP20
Commodity Code
9405423990
EAN
5013588102313
Outer Box Qty
4
Height (mm)
82
Length (mm)
1795
Outer Box Height (mm)
1820
Outer Box Width (mm)
250
Outer Box Depth (mm)
210
Individual Product Weight (kg)
2.99
Outer Box Weight (kg)
14.55
Outer Box Volume
0.09555
Lumens per Watt (lm/W)
173
Electric Class
Class I
Power Factor
>0.9
Primary Material
Steel
Operating Temperature
-5°C - +35°C
Depth (mm)
109
Emergency Lumen Output (lm)
432
Wattage (W)
80
Equivalent Wattage (W)
165
Colour Temperature (K)
4000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
3.31
Single box Height (mm)
1805
Single box Width (mm)
120
Single Box Depth (mm)
90
Single Box Volume
0.01949
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Battens
EDATA Product Range
Ultra
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
13813
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
Yes
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Catalogue Page

Instructions

Photometric Data

Product Image

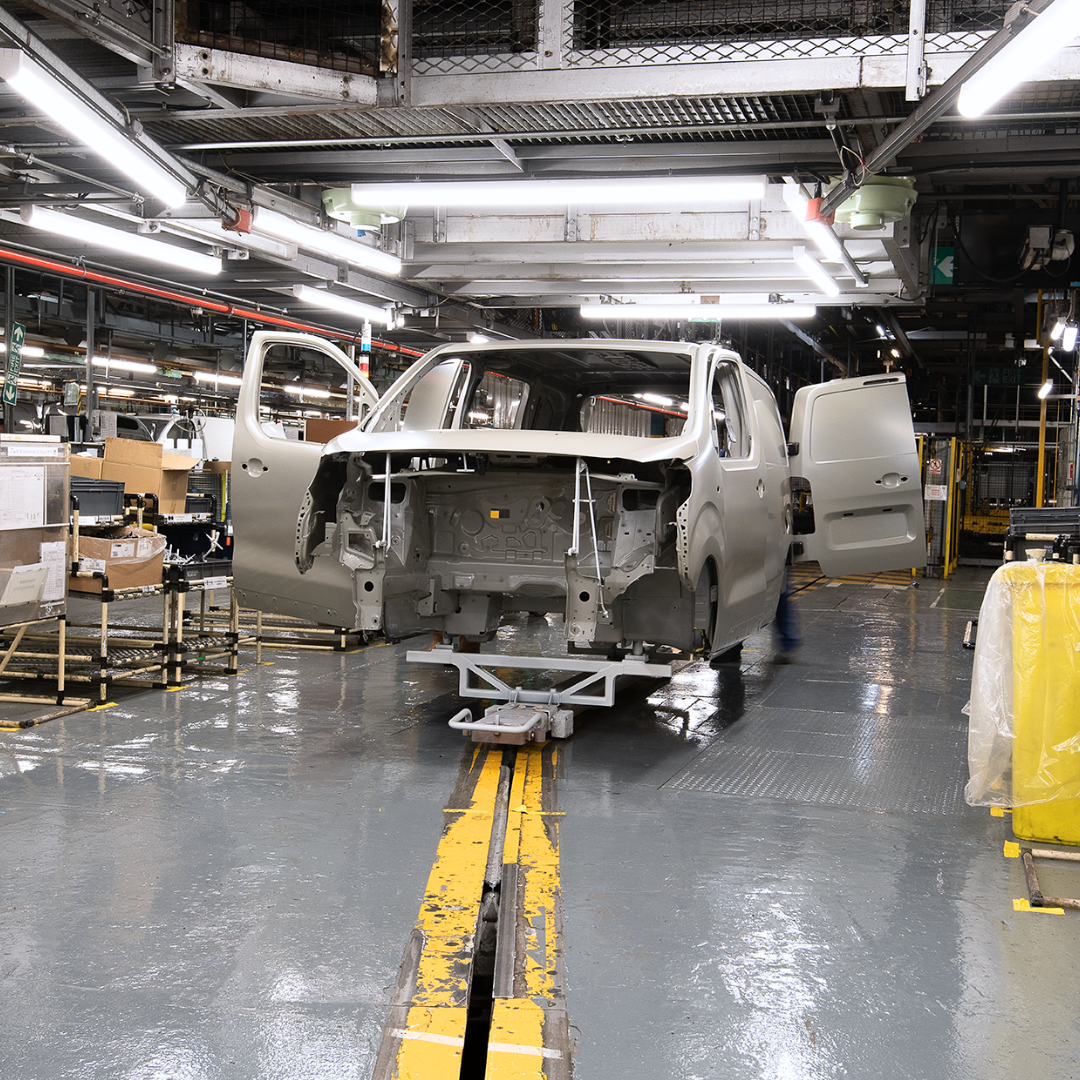

Case Study Image
