Ultra Single

Ultra 20W LED Integrated 4ft Single Batten - 4000K

Code
10200
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:

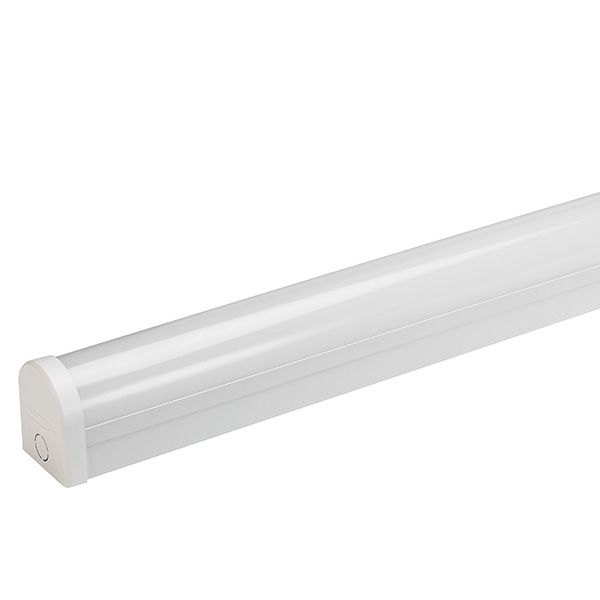

10200V2 - Ultra V2 20W LED Integrated 4ft Single Batten - 4000K View product
Technical Specification
Volts (V)
220/240
20W Ultra LED Integrated Batten - 4000K, Single 1230mm (4ft)
Quantity
Download Specification
Full Specification
Downloads
Name
Ultra 20W LED Integrated 4ft Single Batten - 4000K
Volts (V)
220/240
Candelas
650
Life Hours
50000
Beam Angle
156°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
480mA
Energy Consumption (kWh/1000h)
20
IP Rating
IP20
Commodity Code
9405423990
EAN
5013588102009
Outer Box Qty
6
Height (mm)
82
Length (mm)
1230
Outer Box Height (mm)
1250
Outer Box Width (mm)
250
Outer Box Depth (mm)
210
Individual Product Weight (kg)
1.37
Outer Box Weight (kg)
10.07
Outer Box Volume
0.06563
Lumens per Watt (lm/W)
183
Electric Class
Class I
Power Factor
>0.9
Primary Material
Steel
Operating Temperature
-30°C - +35°C
Depth (mm)
69
Wattage (W)
20
Equivalent Wattage (W)
45
Colour Temperature (K)
4000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
1.54
Single box Height (mm)
1240
Single box Width (mm)
90
Single Box Depth (mm)
75
Single Box Volume
0.00837
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Battens
EDATA Product Range
Ultra
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
3664
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

Instructions

Photometric Data

Product Image

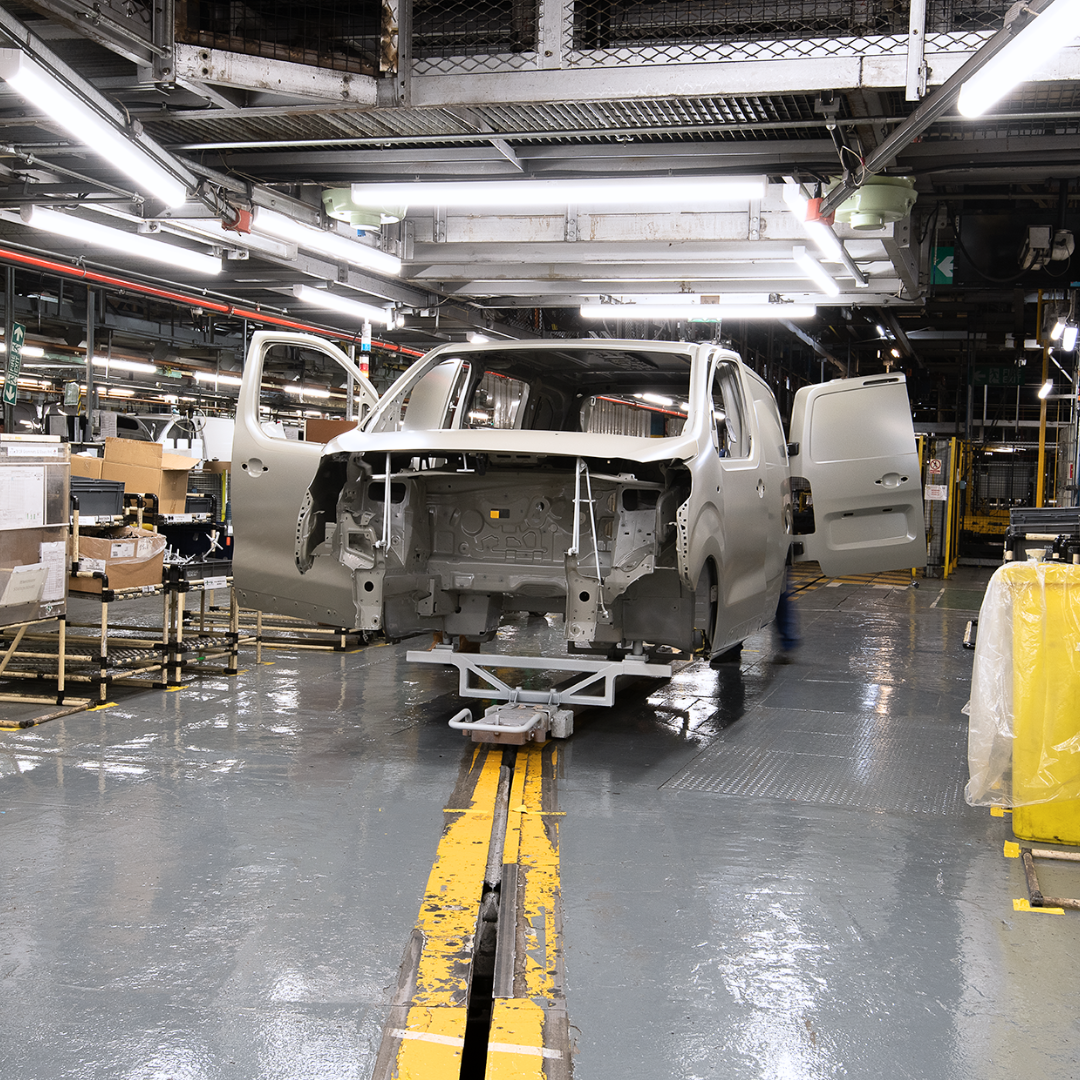

Case Study Image
