Ultra Single

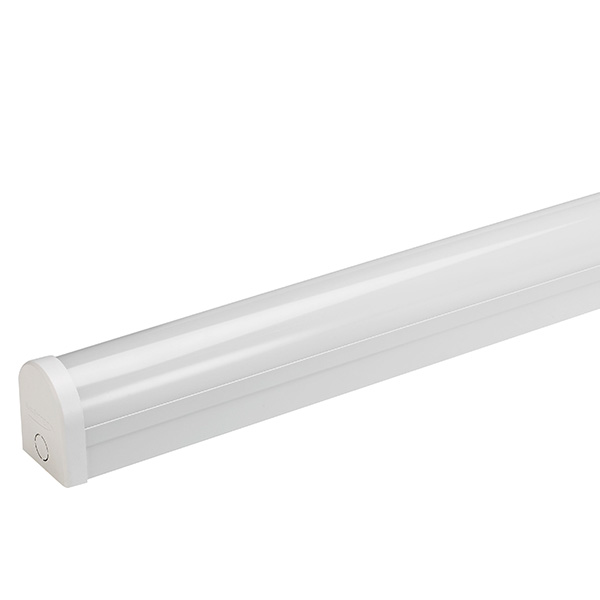

Ultra 30W LED Integrated 5ft Single Batten in Emergency - 4000K

Code
10213
Technical Specification
Volts (V)
220/240
Watts (W)
30
Colour Temp (K)
4000
Lumens (lm)
4410
30W Ultra LED Integrated Batten - 4000K, Single Emergency 1530mm (5ft)
Full Specification
Downloads
Name
Ultra 30W LED Integrated 5ft Single Batten in Emergency - 4000K
Volts (V)
220/240
Watts (W)
30
Colour Temp (K)
4000
Lumens (lm)
4410
Life Hours
50000
Beam Angle
116°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
960mA
Energy Consumption (kWh/1000h)
30
IP Rating
IP20
Commodity Code
9405409990
EAN
5013588102139
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.0104
Outer Box Qty
4
Height (mm)
82
Width (mm)
69
Length (mm)
1530
Outer Box Height (mm)
1550
Outer Box Width (mm)
175
Outer Box Depth (mm)
200
Candelas (cd)
1050
Equivalent Watts (W)
68
Single Carton Height (mm)
1540
Single Carton Width (mm)
90
Single Carton Depth (mm)
75
Individual Product Weight (kg)
1.88
Single Carton Weight (KG)
2.13
Outer Box Weight (kg)
9.35
Plastic Packaging Weight (kg)
0.01
Outer Box Volume
0.05425
Lumens per Watt (lm/W)
147
Inner Box Qty
1
Driver Integral?
Yes
Electric Class
1
Power Factor
0.96kW
