Ultra Single

Ultra 30W LED Integrated 5ft Single Batten with Microwave Sensor - 4000K

Code
10214
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:

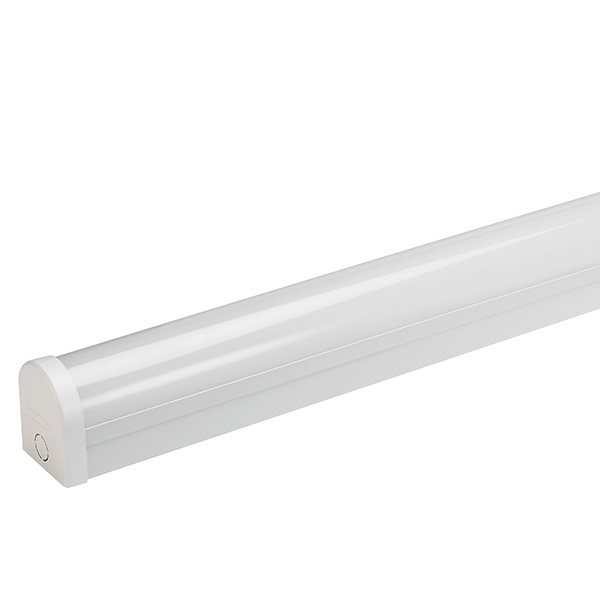

10214V2 - Ultra V2 30W LED Integrated 5ft Single Batten with Microwave Sensor - 4000K View product
Technical Specification
Volts (V)
220/240
30W Ultra LED Integrated Batten - 4000K, Single with Microwave Sensor 1530mm (5ft)
Quantity
Download Specification
Full Specification
Downloads
Name
Ultra 30W LED Integrated 5ft Single Batten with Microwave Sensor - 4000K
Volts (V)
220/240
Candelas
1050
Life Hours
50000
Beam Angle
116°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
960mA
Energy Consumption (kWh/1000h)
30
IP Rating
IP20
Commodity Code
9405423990
EAN
5013588102146
Outer Box Qty
4
Height (mm)
82
Length (mm)
1530
Outer Box Height (mm)
180
Outer Box Width (mm)
200
Outer Box Depth (mm)
1550
Outer Box Volume
0.0558
Individual Product Weight (kg)
1.73
Outer Box Weight (kg)
8.57
Lumens per Watt (lm/W)
181
Electric Class
Class I
Power Factor
>0.9
Primary Material
Steel
Operating Temperature
-30°C - +35°C
Depth (mm)
69
Wattage (W)
30
Equivalent Wattage (W)
68
Colour Temperature (K)
4000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
1.99
Single box Height (mm)
86
Single box Width (mm)
74
Single Box Depth (mm)
1536
Single Box Volume
0.00978
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Battens
EDATA Product Range
Ultra
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
5441
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page
