Ultra Single

Ultra 50W LED Integrated 6ft Single Batten in Emergency - 4000K

Code
10225
Technical Specification
Volts (V)
220/240
Watts (W)
50
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
6350
50W Ultra LED Integrated Batten - 4000K, Single Emergency 1795mm (6ft)
Download Specification
Full Specification
Downloads
Name
Ultra 50W LED Integrated 6ft Single Batten in Emergency - 4000K
Volts (V)
220/240
Watts (W)
50
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
6350
Life Hours
50000
Beam Angle
116°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
1320mA
Energy Consumption (kWh/1000h)
50
IP Rating
IP20
Commodity Code
9405409990
EAN
5013588102252
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.01218375
Outer Box Qty
4
Height (mm)
82
Width (mm)
69
Length (mm)
1795
Outer Box Height (mm)
1810
Outer Box Width (mm)
170
Outer Box Depth (mm)
205
Candelas (cd)
1500
Equivalent Watts (W)
100
Single Carton Height (mm)
1805
Single Carton Width (mm)
90
Single Carton Depth (mm)
75
Outer Box Volume
0.0630785
Individual Product Weight (kg)
2.15
Single Carton Weight (KG)
2.55
Outer Box Weight (kg)
10.44
Plastic Packaging Weight (kg)
0.015
Lumens per Watt (lm/W)
127
Inner Box Qty
1
Driver Integral?
Yes
Electric Class
1
Power Factor
0.97kW
Catalogue Page

Instructions

Photometric Data

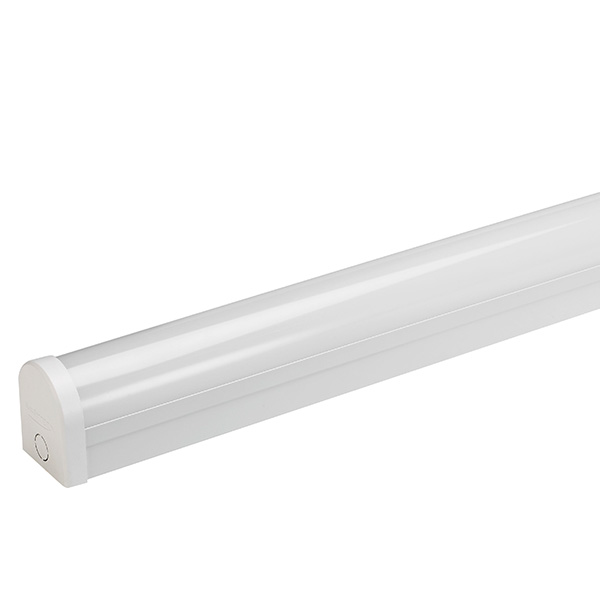

Product Image
