Ultra Single

Ultra 50W LED Integrated 6ft Single Batten with Microwave Sensor - 4000K

Code
10226
Technical Specification
Volts (V)
220/240
Watts (W)
50
Colour Temp (K)
4000
Lumens (lm)
6350
Energy Rating
E
50W Ultra LED Integrated Batten - 4000K, Single with Microwave Sensor 1795mm (6ft)
Download Specification
Full Specification
Downloads
Name
Ultra 50W LED Integrated 6ft Single Batten with Microwave Sensor - 4000K
Volts (V)
220/240
Watts (W)
50
Colour Temp (K)
4000
Lumens (lm)
6350
Life Hours
50000
Beam Angle
116°
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
1320mA
Energy Consumption (kWh/1000h)
50
IP Rating
IP20
Commodity Code
9405409990
EAN
5013588102269
Country Of Origin
CN
UNSPSC Code
39111544
Individual Volume
0.01218
Outer Box Qty
4
Height (mm)
82
Width (mm)
69
Length (mm)
1795
Outer Box Height (mm)
1810
Outer Box Width (mm)
170
Outer Box Depth (mm)
205
Candelas (cd)
1500
Equivalent Watts (W)
100
Single Carton Height (mm)
1805
Single Carton Width (mm)
90
Single Carton Depth (mm)
75
Individual Product Weight (kg)
1.98
Single Carton Weight (KG)
2.38
Outer Box Weight (kg)
9.95
Plastic Packaging Weight (kg)
0.015
Outer Box Volume
0.06308
Inner Box Qty
1
Energy Rating
E
Lumens per Watt (lm/W)
127
Electric Class
1
Driver Integral?
Yes
Power Factor
0.97kW
Catalogue Page

Instructions

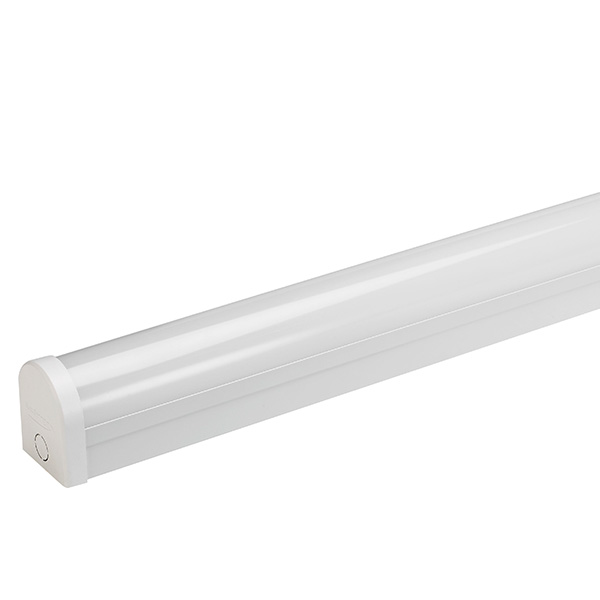

Product Image
