Illumina Linear for Racks

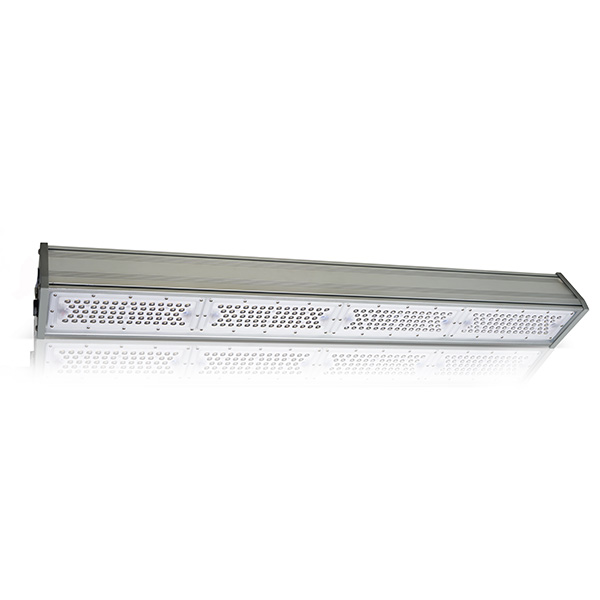

Illumina Linear 200W LED High Rack 30X70° - 4000K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
08950
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:
70343 - Illumina Linear Switchable 100W-150W-200W - High Rack - 4000K View product
Technical Specification
Volts (V)
110/264
The Illumina Linear offers a sleek design coupled with high performance. Perfect for high ceiling warehouses, industrial facilities, exhibition centres, shopping malls & stadiums.
Quantity
Download Specification
Full Specification
Downloads
Name
Illumina Linear 200W LED High Rack 30X70° - 4000K
Volts (V)
110/264
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
LED Drive Current
120mA
Energy Consumption (kWh/1000h)
200
IP Rating
IP65
Commodity Code
9405423990
EAN
5013588089508
Height (mm)
948
Width (mm)
137
Length (mm)
102
Outer Box Height (mm)
1020
Outer Box Width (mm)
200
Outer Box Depth (mm)
160
Outer Box Volume
0.03264
Individual Product Weight (kg)
5.7
Outer Box Weight (kg)
6.5
Lumens per Watt (lm/W)
130
Flex
1.5m
Surge Protection
6kV
Wattage (W)
200
Equivalent Wattage (W)
400
Colour Temperature (K)
4000
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
6.5
Single box Height (mm)
1020
Single box Width (mm)
200
Single Box Depth (mm)
160
Single Box Volume
0.03264
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Warehouse Lighting
EDATA Product Range
IlluminaLinear
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
26000
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Catalogue Page

Instructions

Product Image
