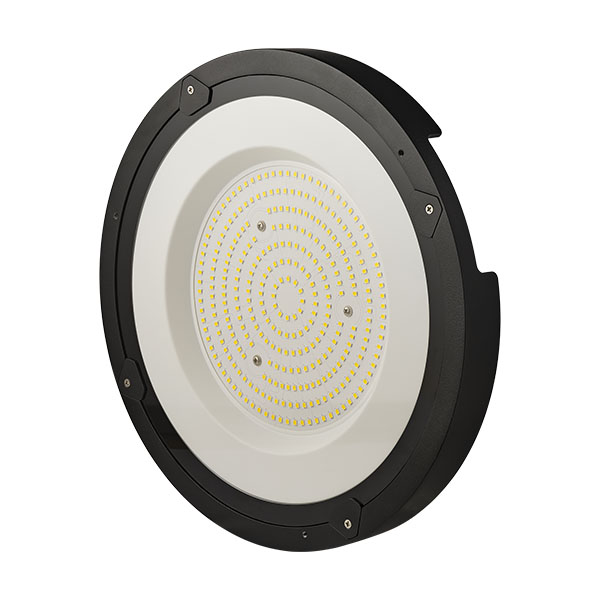

Illumina Muto High/Low Bay

100/150/200W Illumina Muto LED Switchable High Bay - 120° Lens, 4000K

Code
08945
Technical Specification
Volts (V)
220-240
Watts (W)
100/150/200
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
12000-24000
100/150/200W Illumina Muto LED Switchable High Bay - 120° Lens, 4000K
Download Specification
Full Specification
Name
100/150/200W Illumina Muto LED Switchable High Bay - 120° Lens, 4000K
Volts (V)
220-240
Watts (W)
100/150/200
Colour Temp (K)
4000
Dimmable?
No
Lumens (lm)
12000-24000
Life Hours
30,000
Beam Angle
120°
CRI (Ra)
80
Guarantee
3 Years
Switching Cycles
30,000
Frequency (Hz)
50/60
LED Drive Current
900
Energy Consumption (kWh/1000h)
200
IP Rating
IP65
Commodity Code
9405409990
EAN
5013588089454
Country Of Origin
CN
UNSPSC Code
39111546
Height (mm)
60
Diameter (mm)
300
Individual Product Weight (kg)
2.95
Single Carton Weight (KG)
3.14
Single Carton Height (mm)
319
Single Carton Width (mm)
87
Single Carton Depth (mm)
319
Outer Box Weight (kg)
13.23
Outer Box Height (mm)
343
Outer Box Width (mm)
337
Outer Box Depth (mm)
386
Outer Box Qty
4
Individual Volume
0.00885
Outer Box Volume
0.04462
No additional downloads available
