Illumina Muto High/Low Bay

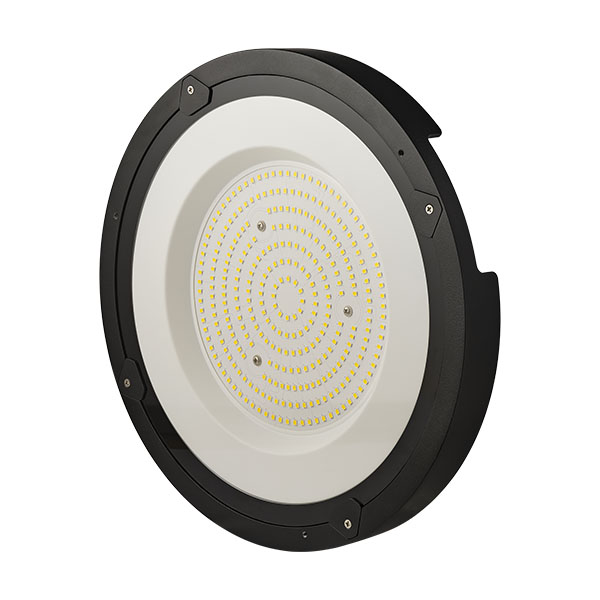

Illumina Muto 100/120/150W LED Switchable High Bay - 120° Lens - 4000K

Code
08946
Technical Specification
Volts (V)
220/240
Watts (W)
100/120/150
Colour Temp (K)
4000
Lumens (lm)
11500-17250
100/120/150W Illumina Muto LED Switchable High Bay - 120° Lens, 4000K
Download Specification
Full Specification
Downloads
Name
Illumina Muto 100/120/150W LED Switchable High Bay - 120° Lens - 4000K
Volts (V)
220/240
Watts (W)
100/120/150
Colour Temp (K)
4000
Lumens (lm)
11500-17250
Life Hours
30000
Beam Angle
120°
CRI (Ra)
80
Guarantee
3 Years
Switching Cycles
30000
Frequency (Hz)
50/60
LED Drive Current
900mA
Energy Consumption (kWh/1000h)
150
IP Rating
IP65
Commodity Code
9405409990
EAN
5013588089461
Country Of Origin
CN
UNSPSC Code
39111546
Height (mm)
60
Diameter (mm)
260
Individual Product Weight (kg)
2.22
Single Carton Weight (KG)
2.38
Single Carton Height (mm)
279
Single Carton Width (mm)
87
Single Carton Depth (mm)
279
Outer Box Weight (kg)
10.07
Outer Box Height (mm)
303
Outer Box Width (mm)
297
Outer Box Depth (mm)
386
Outer Box Qty
4
Individual Volume
0.00677
Outer Box Volume
0.03474
Inner Box Qty
1
Impact Protection
IK8
Equivalent Watts (W)
150-250
Lumens per Watt (lm/W)
115
Flex
1m
Catalogue Page

Instructions

Photometric Data

Product Image
