CFL Square 2/4 Pin

Fluorescent 16W Square - 2 Pin - 3500K

Code
04170
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:

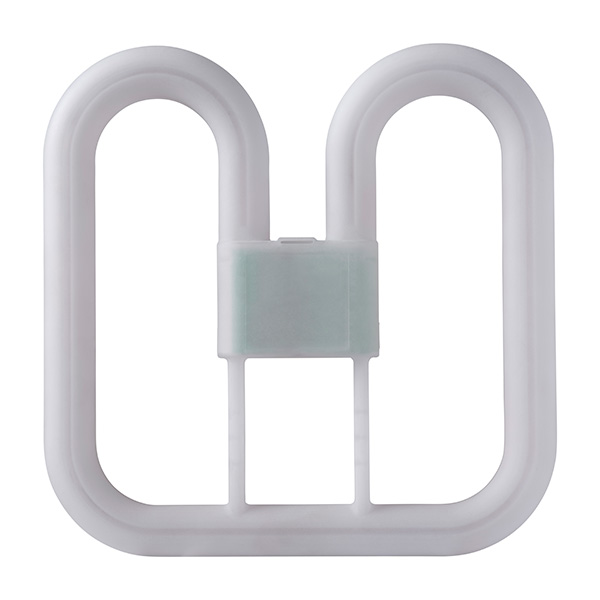

60457 - LED 8W 2D - 2 Pin - 3500K View product
Technical Specification
Cap
GR8
Energy Rating
G
Our CFL Square Lamps are the perfect low-profile bulb for surface mounted fittings, corridors, bathrooms and bulkheads. Available in Warm White, White & Cool White, the CFL Square Lamps are a tried and tested product suitable for both domestic & commercial applications.
Quantity
Download Specification
Full Specification
Downloads
Name
Fluorescent 16W Square - 2 Pin - 3500K
Cap
GR8
Life Hours
10000
Beam Angle
360°
Energy Rating
G
CRI (Ra)
80
Switching Cycles
5000
Energy Consumption (kWh/1000h)
20
Commodity Code
8539319090
EAN
5013588041704
Outer Box Qty
20
Width (mm)
135
Diameter (mm)
14
Outer Box Height (mm)
180
Outer Box Width (mm)
325
Outer Box Depth (mm)
335
Individual Product Weight (kg)
0.0644
Outer Box Weight (kg)
2.569
Outer Box Volume
0.0196
Height (mm)
135
Depth (mm)
30
Lumens per Watt (lm/W)
66
Frequency (Hz)
50/60
Guarantee
1 Year
Wattage (W)
16
Colour Temperature (K)
3500
Minimum Order Quantity
20
Single Box Weight (kg)
0.09711
Single box Height (mm)
30
Single box Width (mm)
155
Single Box Depth (mm)
155
Single Box Volume
0.00072
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
Lamps
EDATA Product Range
Square
EDATA Order Unit
Unit
EDATA Quantity Interval
20
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
1050
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
