Arial Pro IP65 - Casambi

Arial Pro 20W IP65 LED CCT Downlight in Emergency (1Y) - Casambi Dimming Enabled

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82151
Technical Specification
Volts (V)
220/240
The Arial Pro LED Downlight is a sleek looking luminaire designed to replace cumbersome CFL fittings.
Download Specification
Full Specification
Name
Arial Pro 20W IP65 LED CCT Downlight in Emergency (1Y) - Casambi Dimming Enabled
EAN
5063695001856
Volts (V)
220/240
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
500mA
Energy Consumption (kWh/1000h)
20
IP Rating
IP65
Height (mm)
117
Diameter (mm)
240
Lumens per Watt (lm/W)
129-144
Commodity Code
9405423100
Individual Product Weight (kg)
1.747
Outer Box Height (mm)
450
Outer Box Width (mm)
515
Outer Box Depth (mm)
515
Outer Box Qty
12
Outer Box Volume
0.11935
Operating Temperature
-5°C - +35°C
Emergency Lumen Output (lm)
434 (3000K) / 483 (4000K) / 432 (6000K)
Wattage (W)
20
Emergency Wattage (W)
3.4
Colour Temperature (K)
3000/4000/6000
Minimum Order Quantity
1
Single Box Weight (kg)
2.35
Single box Height (mm)
143
Single box Width (mm)
250
Single Box Depth (mm)
250
Single Box Volume
0.00894
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
2612 (3000K) / 2885 (4000K) / 2585 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
LED Downlights
EDATA Product Range
Arial Pro
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years
Linears
No
Skyline Target
No

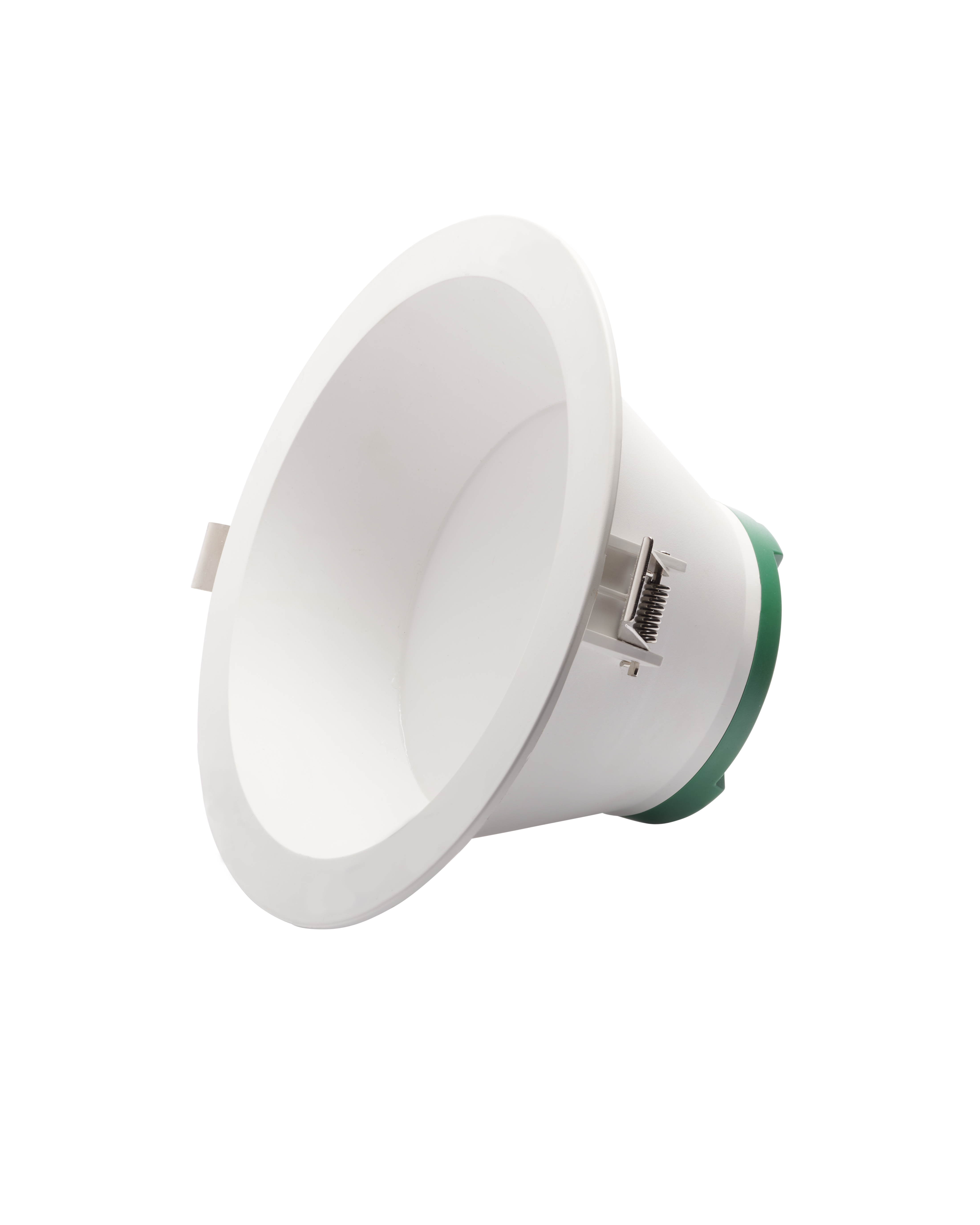

Product Image
