Powertron Medium Asymmetric Beam (MAB)

Skyline Powertron 1800W LED Asymmetric (MAB) Floodlight - 4200K

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
11833
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)
Please contact our Lighting Design Team through [email protected] for LDT files which include shields and other optional attachments.
Download Specification
Full Specification
Downloads
Name
Skyline Powertron 1800W LED Asymmetric (MAB) Floodlight - 4200K
Commodity Code
9405423990
EAN
5013588118338
Volts (V)
200-400 (Single/Cross Phase)
Life Hours
100000
CRI (Ra)
70
Switching Cycles
200000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
1800
IP Rating
IP66
Height (mm)
1100
Width (mm)
605
Depth (mm)
332
Individual Product Weight (kg)
Including Driver - 36.3 / Remote Driver - 30.4 (Weights Do Not Include Visor)
Lumens per Watt (lm/W)
156
Windage
0.12m² at 0° / 0.26m² at 15° / 0.39m² at 30° / 0.49m² at 45° / 0.56m² at 60° / 0.59m² at 75°
Power Factor
>0.9
Operating Temperature
-30°C to +50°C
Surge Protection
10kV
Dimming Option
DALI
Standard Deviation Colour Matching
5-step MacAdam ellipse
LED Drive Current
850mA
Electric Class
Class I
Wattage (W)
1800
Colour Temperature (K)
4200
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
35 (Remote Driver)
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Floodlights
EDATA Product Range
Skyline Powertron
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
280450
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Corrosion Rating
1500 hour salt spray - C5 Corrosion Rating
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
10 Years
Linears
No
Skyline Target
No
Catalogue Page

Instructions

Photometric Data

Product Image

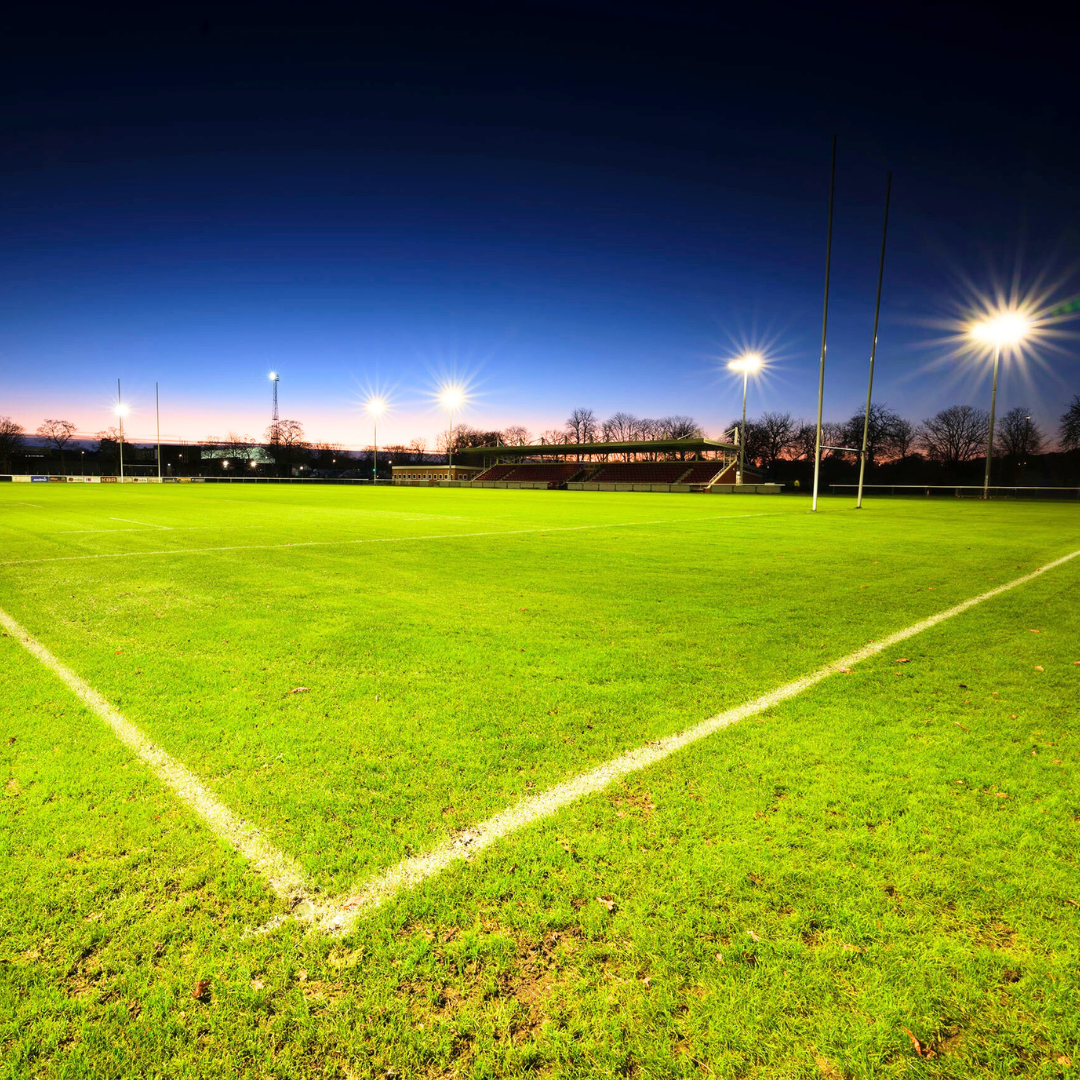

Case Study Image
