Powertron Slim Asymmetric Beam (SAB)

Skyline Powertron 600W LED Marine Grade Asymmetric (SAB) Floodlight - Casambi Enabled - 5700K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
82018
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)

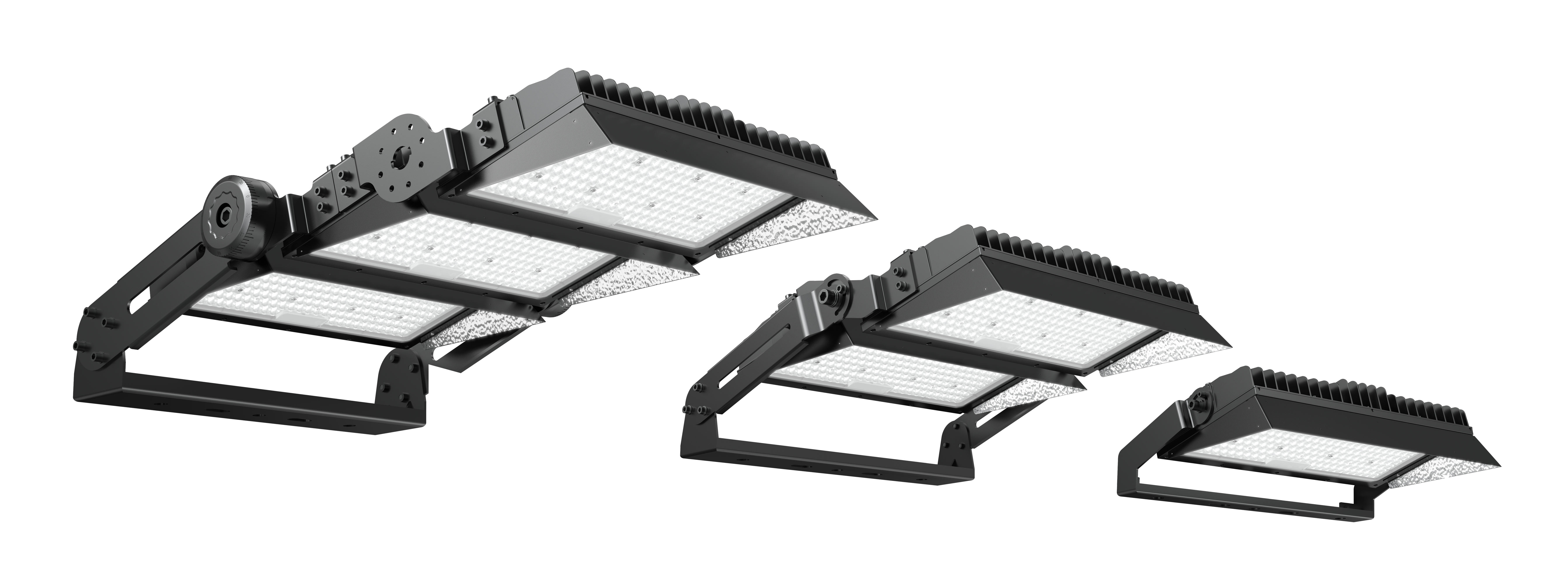

The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering lumen output. The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.
Download Specification
Full Specification
Downloads
Name
Skyline Powertron 600W LED Marine Grade Asymmetric (SAB) Floodlight - Casambi Enabled - 5700K
EAN
5063695000514
Commodity Code
9405423990
Surge Protection
10kV
Operating Temperature
-30°C to +50°C
Power Factor
>0.9
Volts (V)
200-400 (Single/Cross Phase)
Dimming Option
DALI
Life Hours
100000
CRI (Ra)
70
Switching Cycles
200000
Frequency (Hz)
50/60
IP Rating
IP66
Energy Consumption (kWh/1000h)
600
Individual Product Weight (kg)
Including Driver - 13.2 / Remote Driver - 8.9 (Weights Do Not Include Visor)
Height (mm)
474
Width (mm)
605
Depth (mm)
172
Windage
0.08m² at 0° / 0.12m² at 15° / 0.15m² at 30° / 0.17m² at 45° / 0.18m² at 60° & 75°
Lumens per Watt (lm/W)
152
Standard Deviation Colour Matching
5-step MacAdam ellipse
Electric Class
Class I
Wattage (W)
600
Equivalent Wattage (W)
1000
Colour Temperature (K)
5700
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
9.8 (Remote Driver)
Single box Height (mm)
655
Single box Width (mm)
445
Single Box Depth (mm)
205
Single Box Volume
0.059752375
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
91365
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Corrosion Rating
1500 hour salt spray - C5 Corrosion Rating
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
LED Floodlights
EDATA Product Range
Skyline Powertron
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
10 Years
Linears
No
Skyline Target
No
Instructions

Product Image
