Skyline Slim+ Photocell

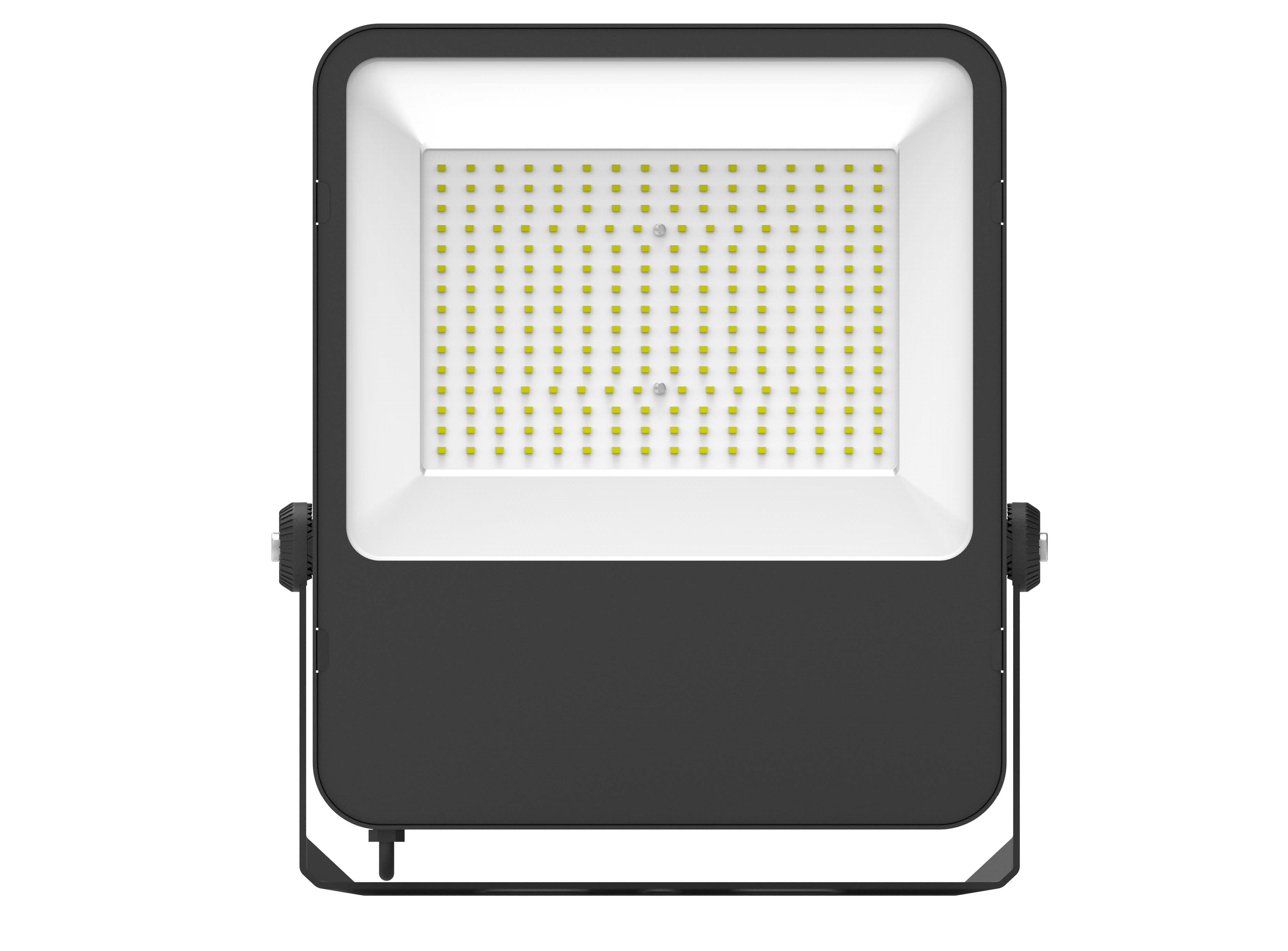

Skyline Slim+ 200W LED Floodlight with Photocell - 4000K

Code
10994
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:
72039 - Skyline Omni 100/150/200W Wattage Switchable LED Floodlight with Photocell Switch - Symmetri View product
Technical Specification
Volts (V)
240
200W Skyline Slim+ Floodlight - Photocell
Quantity
Download Specification
Description
Full Specification
Downloads
200W Skyline Slim+ Floodlight - Photocell
Name
Skyline Slim+ 200W LED Floodlight with Photocell - 4000K
Volts (V)
240
Life Hours
50000
Beam Angle
110°
CRI (Ra)
80
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
1850mA
Energy Consumption (kWh/1000h)
200
IP Rating
IP65
Height (mm)
410
Width (mm)
355
Depth (mm)
60
Commodity Code
9405423990
Outer Box Height (mm)
448
Outer Box Width (mm)
372
Outer Box Depth (mm)
160
Outer Box Qty
2
Outer Box Volume
0.02666
EAN
5013588109947
Lumens per Watt (lm/W)
120
Flex
1m
Power Factor
>0.9
Operating Temperature
-30°C to +35°C
Wattage (W)
200
Equivalent Wattage (W)
400
Colour Temperature (K)
4000
IK Rating
IK08
Single box Height (mm)
416
Single box Width (mm)
355
Single Box Depth (mm)
70
Single Box Volume
0.01034
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Floodlights
EDATA Product Range
Skyline Slim+
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
24000
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Minimum Order Quantity
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
5 Years
Linears
No
Skyline Target
No
