Dura Double

Dura 20W LED Anti-Corrosive 2ft Double Batten - 4000K

Code
10256
Technical Specification
Volts (V)
220/240
The Dura LED Anti Corrosive Batten is one of BELL’s flagship luminaires. This fully enclosed luminaire comes with stainless steel diffuser clips, ideal for exterior lighting projects that are open to the elements.
Download Specification
Full Specification
Downloads
Name
Dura 20W LED Anti-Corrosive 2ft Double Batten - 4000K
Volts (V)
220/240
Candelas
700
Life Hours
50000
Beam Angle
127°
CRI (Ra)
85
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
480mA
Energy Consumption (kWh/1000h)
20
IP Rating
IP66
Commodity Code
9405423100
EAN
5013588102566
Outer Box Qty
8
Height (mm)
90
Length (mm)
654
Outer Box Height (mm)
695
Outer Box Width (mm)
290
Outer Box Depth (mm)
410
Individual Product Weight (kg)
1.34
Outer Box Weight (kg)
11.7
Outer Box Volume
0.08264
Lumens per Watt (lm/W)
173
Power Factor
0.97
Electric Class
Class I
Depth (mm)
125
Wattage (W)
20
Equivalent Wattage (W)
40
Colour Temperature (K)
4000
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
1.49
Single box Height (mm)
660
Single box Width (mm)
135
Single Box Depth (mm)
95
Single Box Volume
0.00846
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Battens
EDATA Product Range
Dura
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
3448
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
Yes
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years (2 Years On Site)
Linears
No
Skyline Target
No
Catalogue Page

Instructions

Photometric Data

Product Image

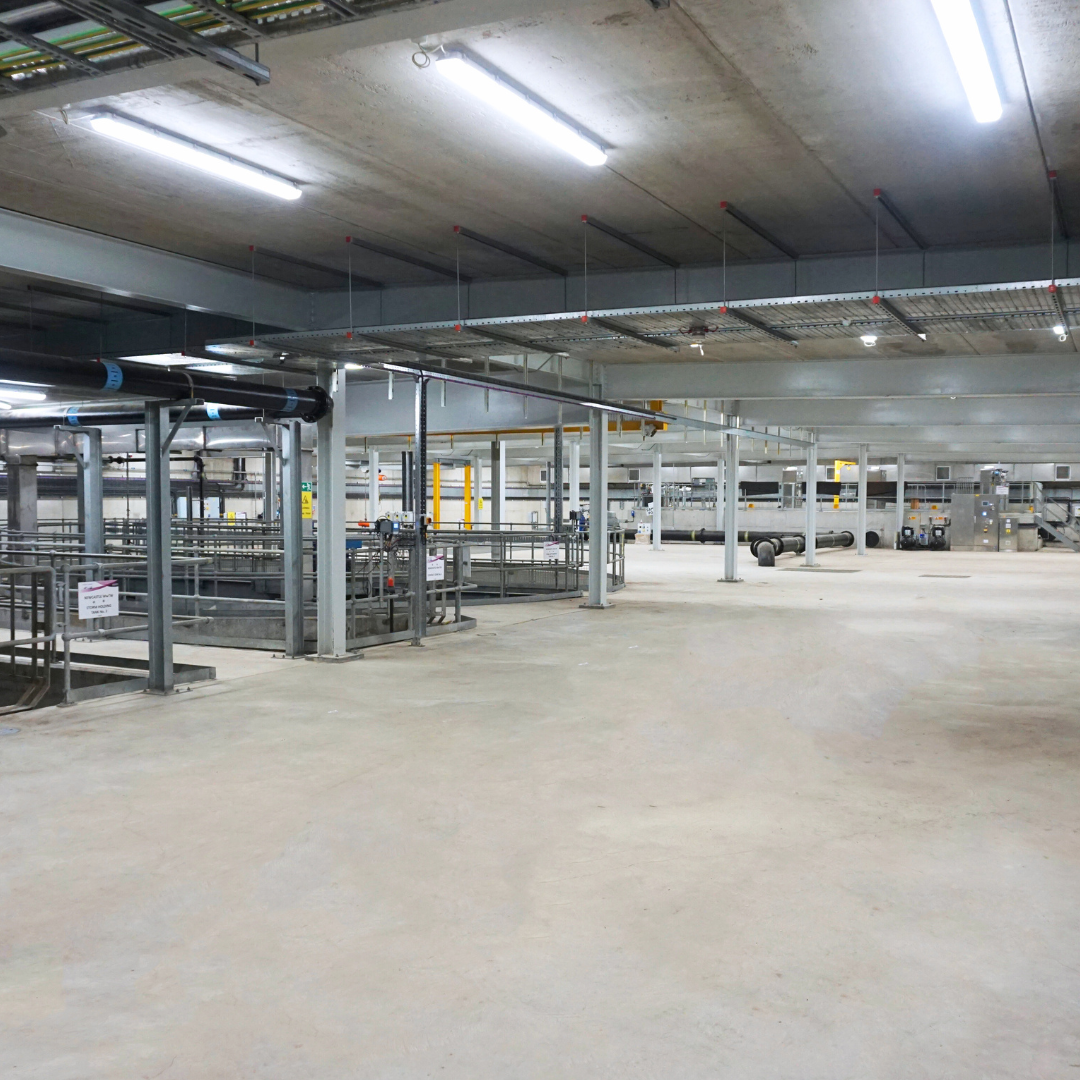

Case Study Image
