Ultra Casambi

Ultra 30W LED Integrated 5ft Single Batten in Emergency - Casambi Dimming Enabled - 4000K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
82108
Technical Specification
Volts (V)
220/240
The Ultra Batten is a versatile general-purpose luminaire. With a sleek look, this Ultra Batten is an ideal candidate for office, classroom and corridor installations.
Download Specification
Full Specification
Name
Ultra 30W LED Integrated 5ft Single Batten in Emergency - Casambi Dimming Enabled - 4000K
EAN
5063695001412
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
80
Switching Cycles
50000
Frequency (Hz)
50/60
IP Rating
IP20
Electric Class
Class I
Commodity Code
9405423990
Outer Box Weight (kg)
9.35
Outer Box Height (mm)
1550
Outer Box Width (mm)
175
Outer Box Depth (mm)
200
Outer Box Qty
4
Outer Box Volume
0.05425
Individual Product Weight (kg)
1.88
Height (mm)
82
Length (mm)
1530
Lumens per Watt (lm/W)
181
Beam Angle
116°
Energy Consumption (kWh/1000h)
30
Power Factor
>0.9
Primary Material
Steel
Operating Temperature
-5°C - +35°C
Depth (mm)
69
Wattage (W)
30
Equivalent Wattage (W)
68
Colour Temperature (K)
4000
Candelas
1050
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
2.13
Single box Height (mm)
1540
Single box Width (mm)
90
Single Box Depth (mm)
75
Single Box Volume
0.0104
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
5441
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
Yes
Ultra V2 Batten
No
EDATA Product Family
LED Battens
EDATA Product Range
Ultra
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years
Linears
No
Skyline Target
No
Sports Halls
No
CFL/HID Alternative
No
Merit Batten
No

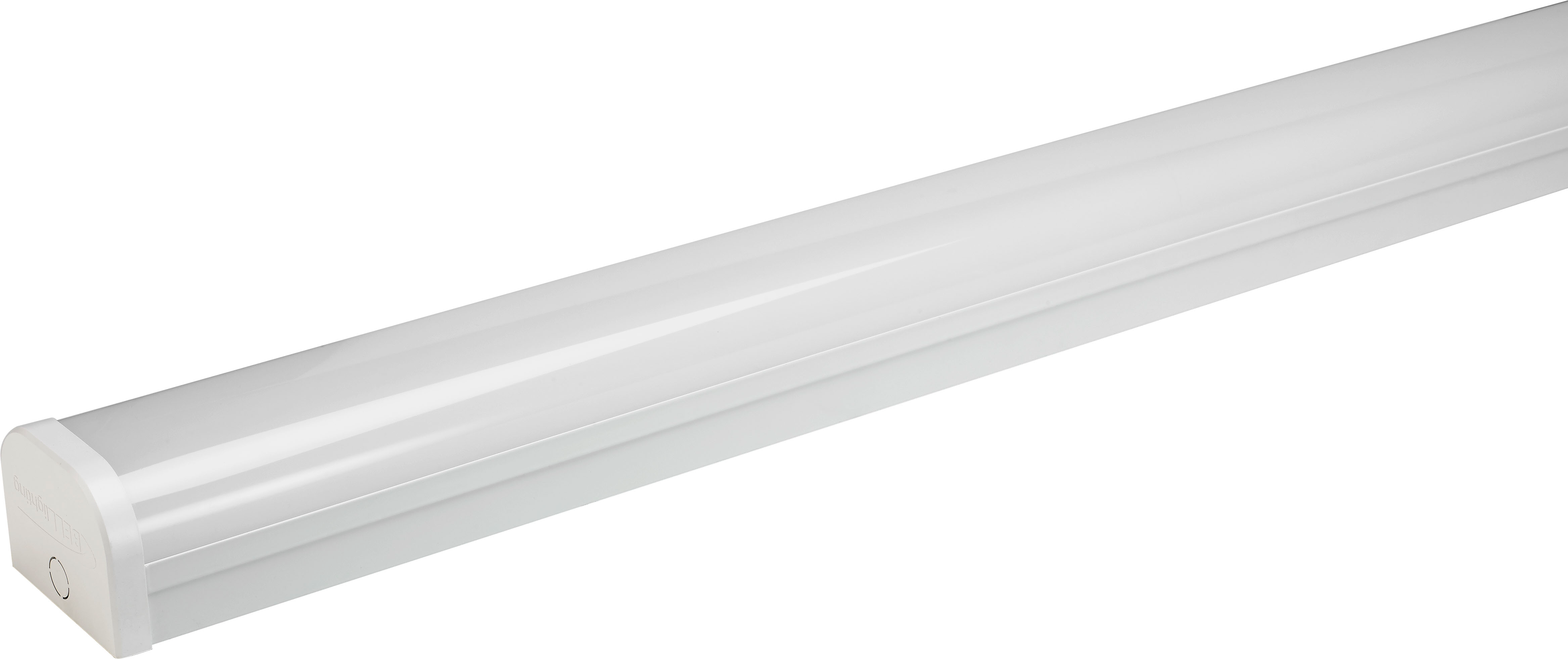

Product Image
