Ultra Endure Emergency

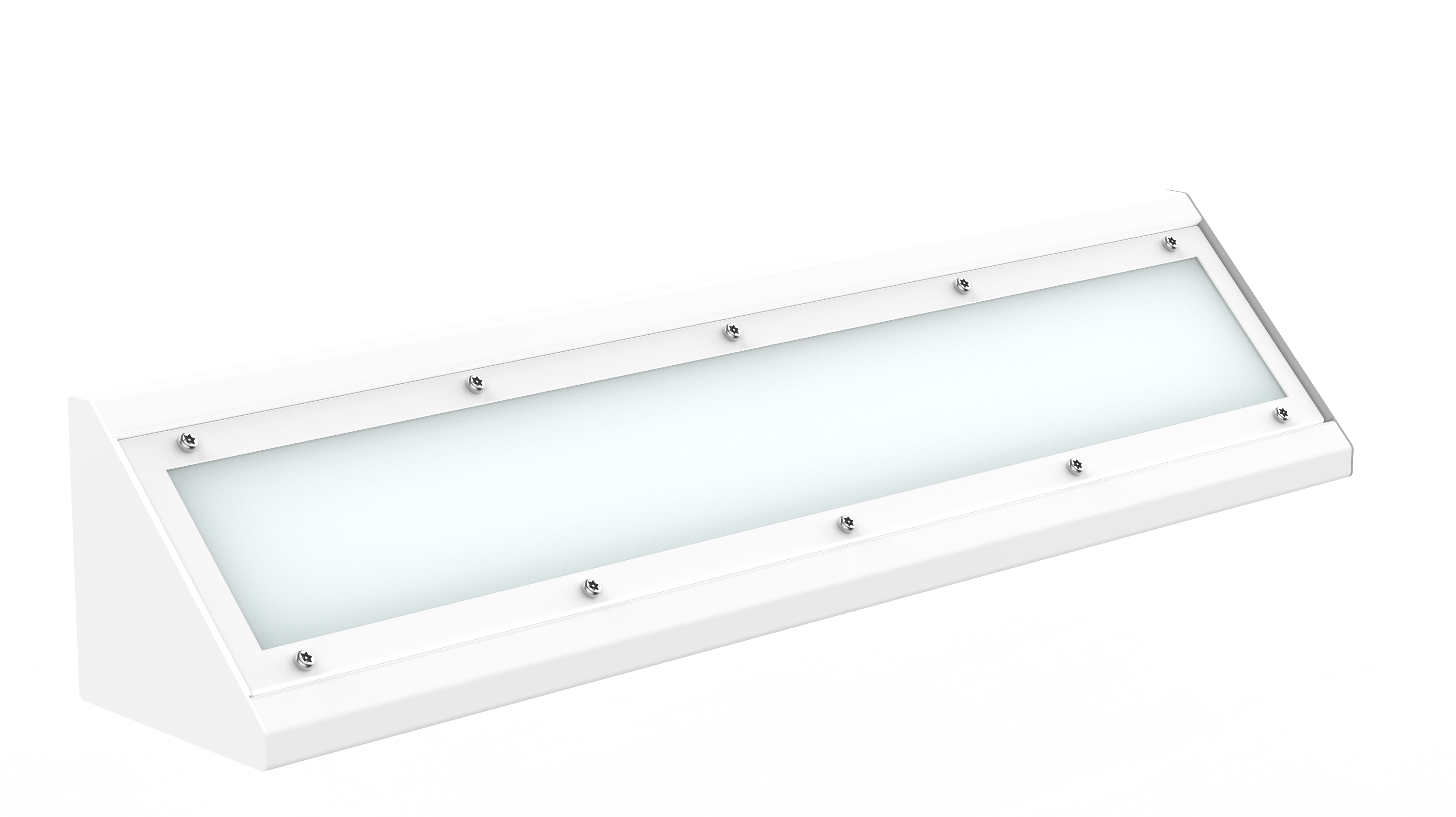

Ultra Endure 60W LED CCT Anti-Ligature 4ft White Batten Cornice in Emergency with DALI Dimming

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
70181
Technical Specification
Volts (V)
220/240
The Ultra Endure LED Batten is CCT and anti-ligature, available in both Black and White. Also available in emergency and with DALI Dimming.
Download Specification
Full Specification
Downloads
Name
Ultra Endure 60W LED CCT Anti-Ligature 4ft White Batten Cornice in Emergency with DALI Dimming
Volts (V)
220/240
Dimming Option
DALI
Life Hours
100000
Beam Angle
100°
CRI (Ra)
85
Switching Cycles
300000
Frequency (Hz)
50/60
LED Drive Current
188-450mA
Energy Consumption (kWh/1000h)
60
IP Rating
IP65
Height (mm)
120
Width (mm)
167
Length (mm)
1200
Commodity Code
9405423100
EAN
5013588701813
Outer Box Qty
2
Operating Temperature
-5°C - +35°C
Emergency Lumen Output (lm)
304 (3000K) / 332 (4000K) / 311 (6000K)
Wattage (W)
60
Equivalent Wattage (W)
90
Colour Temperature (K)
3000/4000/6000
Candelas
2756
IK Rating
IK10
Minimum Order Quantity
1
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
7286 (3000K) / 7805 (4000K) / 7459 (6000K)
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Individual Product Weight (kg)
6.42
Single Box Weight (kg)
6.67
Single box Height (mm)
212
Single box Width (mm)
148
Single Box Depth (mm)
1252
Single Box Volume
0.039282752
Outer Box Weight (kg)
12
Outer Box Height (mm)
300
Outer Box Width (mm)
227
Outer Box Depth (mm)
1265
Outer Box Volume
0.0861465
EDATA Product Family
LED Battens
EDATA Product Range
Ultra Endure
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
10 Years (5 Years Battery Warranty, 2 Years On Site)
Linears
Yes
Skyline Target
No
Catalogue Page

Instructions

Product Image
