Ultra V2 Double

Ultra V2 80W LED Integrated 6ft Double Batten with Microwave Sensor - 4000K

Code
10232V2
Technical Specification
Volts (V)
220/240
The Ultra Batten is a versatile general-purpose luminaire. With a sleek look, this Ultra Batten is an ideal candidate for office, classroom and corridor installations.
Download Specification
Full Specification
Downloads
Name
Ultra V2 80W LED Integrated 6ft Double Batten with Microwave Sensor - 4000K
Commodity Code
9405423990
EAN
5013588000602
Volts (V)
220/240
Life Hours
50000
Beam Angle
120°
CRI (Ra)
80
Switching Cycles
50000
Frequency (Hz)
50/60
IP Rating
IP20
LED Drive Current
350mA
Energy Consumption (kWh/1000h)
80
Height (mm)
70
Length (mm)
1755
Individual Product Weight (kg)
2.7
Outer Box Qty
4
Outer Box Width (mm)
210
Outer Box Height (mm)
165
Outer Box Depth (mm)
1790
Outer Box Weight (kg)
12.3
Electric Class
Class I
Power Factor
>0.9
Primary Material
Steel
Operating Temperature
-30°C - +35°C
Depth (mm)
90
Lumens per Watt (lm/W)
150
Outer Box Volume
0.0620235
Wattage (W)
80
Colour Temperature (K)
4000
Candelas
3450
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
3.05
Single box Height (mm)
75
Single box Width (mm)
95
Single Box Depth (mm)
1760
Single Box Volume
0.01254
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
UOM For Battery Weight
KG
Lumen output (lm)
12000
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
Yes
EDATA Product Family
LED Battens
EDATA Product Range
Ultra
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years (2 Years On Site)
Linears
No
Skyline Target
No
Sports Halls
No
CFL/HID Alternative
No
Merit Batten
No
Catalogue Page

Instructions

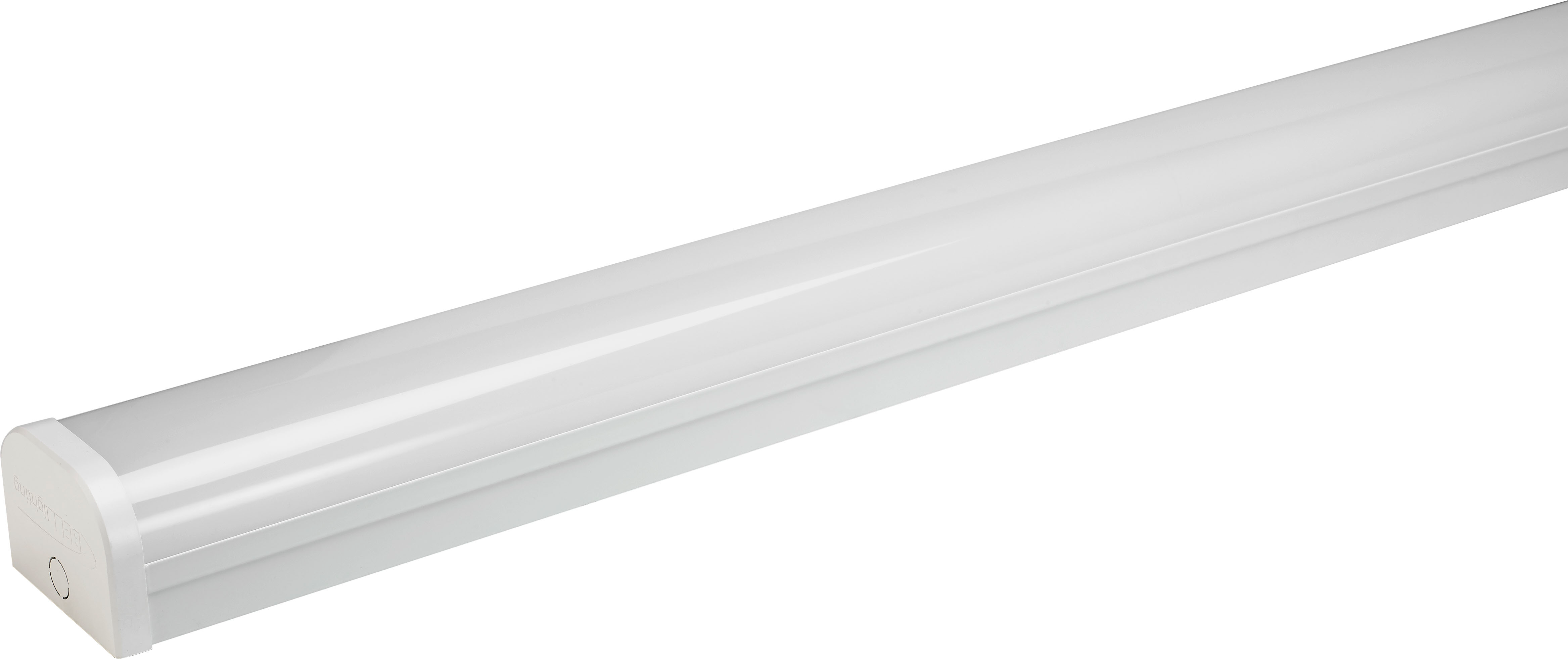

Product Image
