Arial Genesis UGR<19

Arial Genesis 30/36W LED UGR<19 600x600 TpA Panel - 4000K

Code
70008
Technical Specification
Volts (V)
220/240
The Arial Genesis is a cost-effective LED panel with the added benefit of switchable wattage.
Download Specification
Full Specification
Downloads
Name
Arial Genesis 30/36W LED UGR<19 600x600 TpA Panel - 4000K
Volts (V)
220/240
Life Hours
50000
Beam Angle
100°
CRI (Ra)
80
Switching Cycles
100000
Frequency (Hz)
50/60
LED Drive Current
750-900mA
Energy Consumption (kWh/1000h)
36
IP Rating
IP20
Commodity Code
9405423990
EAN
5013588700083
Outer Box Weight (kg)
8.5
Outer Box Height (mm)
640
Outer Box Width (mm)
670
Outer Box Depth (mm)
181
Outer Box Qty
4
Outer Box Volume
0.0776128
Lumens per Watt (lm/W)
119-120
Height (mm)
595
Width (mm)
595
Depth (mm)
32
Individual Product Weight (kg)
1.7
Wattage (W)
30/36
Colour Temperature (K)
4000
Single Box Weight (kg)
1.95
Single box Height (mm)
620
Single box Width (mm)
650
Single Box Depth (mm)
41
Single Box Volume
0.016523
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
UOM For Battery Weight
KG
Lumen output (lm)
3600-4300
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
LED Panels
EDATA Product Range
Arial Genesis
EDATA Quantity Interval
1
Minimum Order Quantity
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
3 Years
Linears
No
Skyline Target
No
Sports Halls
No
CFL/HID Alternative
No
Merit Batten
No
Instructions

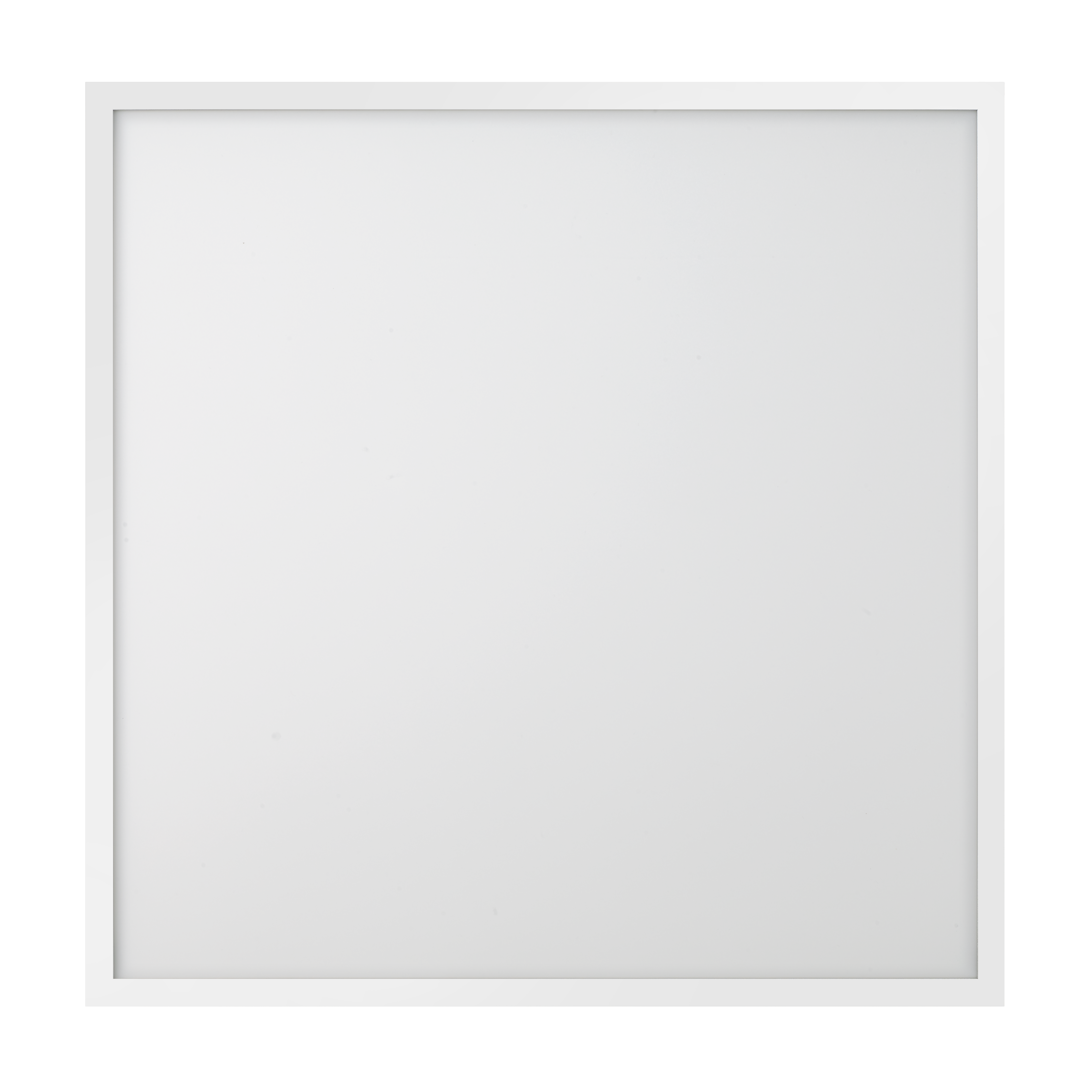

Product Image
