Arial Multi Plus Emergency

Arial Plus Multi Backlit 36W LED UGR<19 1200x300 White Panel in Emergency (1Y) with 1-10V Dimming - 4000K

This product is made to order, however we are out of stock of some components.
i
Please contact sales for accurate lead times for this item.
Code
11778
Technical Specification
Volts (V)
220/240
The Arial Plus Multi is our leading wattage switchable panel, ideal for areas that require high lux levels. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
Download Specification
Full Specification
Downloads
Name
Arial Plus Multi Backlit 36W LED UGR<19 1200x300 White Panel in Emergency (1Y) with 1-10V Dimming - 4000K
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
85
Switching Cycles
25000
Frequency (Hz)
50/60
IP Rating
IP40
Height (mm)
1195
Width (mm)
295
Depth (mm)
25
Commodity Code
9405423990
EAN
5013588117782
Outer Box Height (mm)
1295
Outer Box Width (mm)
340
Outer Box Depth (mm)
250
Outer Box Qty
5
Outer Box Volume
0.110075
Individual Product Weight (kg)
3.037
Lumens per Watt (lm/W)
129
Dimming Option
1-10V
Energy Consumption (kWh/1000h)
36
Unified Glare Rating
<19
Primary Material
Steel
Operating Temperature
0°C-35°C
Emergency Lumen Output (lm)
469
Wattage (W)
36
Colour Temperature (K)
4000
TP(a)/TP(b)
TP(a)
Minimum Order Quantity
1
Single Box Weight (kg)
3.537
Single box Height (mm)
1282
Single box Width (mm)
325
Single Box Depth (mm)
52
Single Box Volume
0.0216658
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Panels
EDATA Product Range
Arial Plus Multi
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
4656
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
Yes
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years (2 Years On Site, 1 Year Battery Warranty)
Linears
No
Skyline Target
No
Catalogue Page

Instructions

Product Image

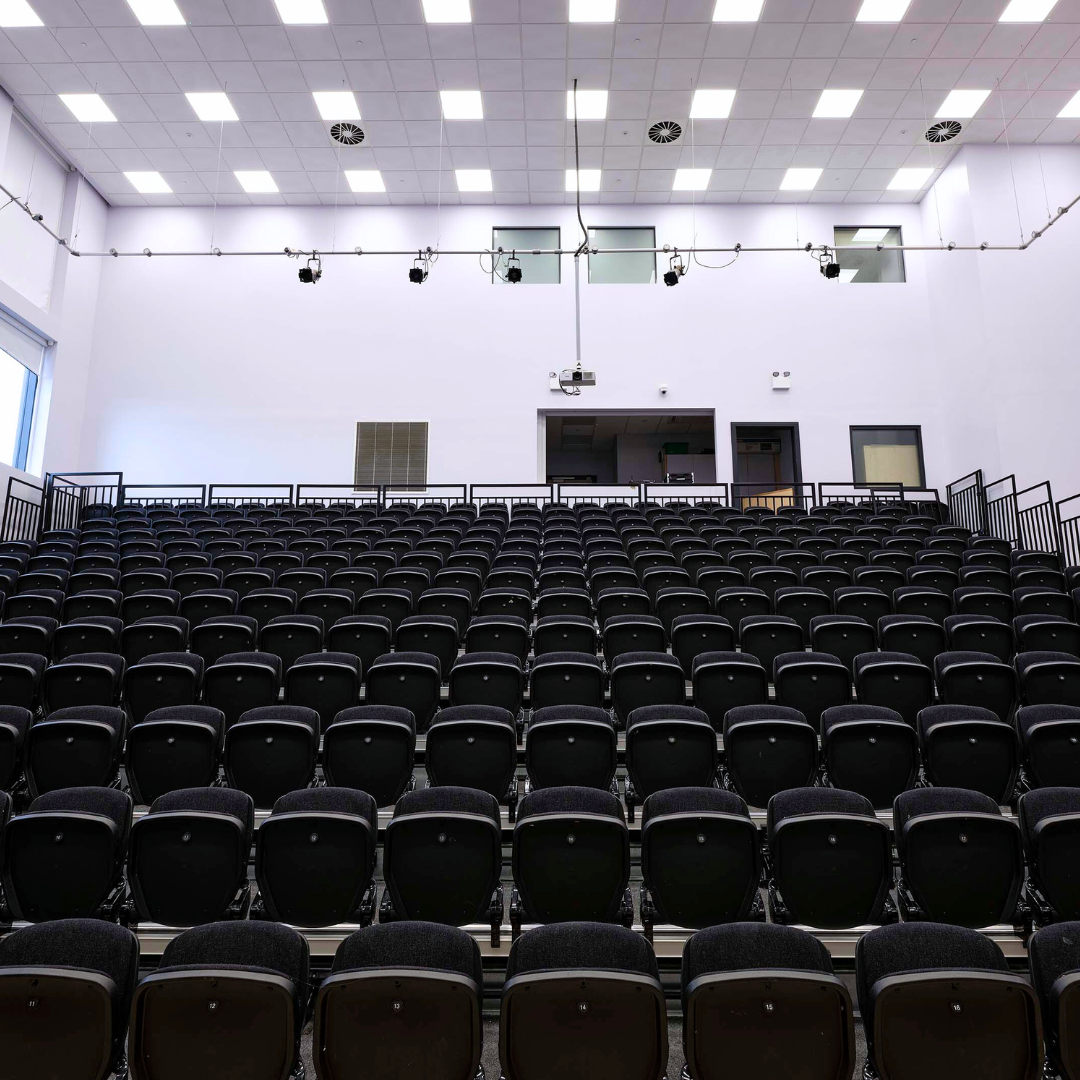

Case Study Image
