Muro Wallpack Standard

Muro 22W LED CCT Wallpack - Casambi Dimming Enabled

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
82049
Technical Specification
Volts (V)
220/240
Designed to be used where the aesthetics of the light fitting, along with a tough robust construction, is needed. The fittings are IP65 and IK8 compliant, supplied complete with an opal diffuser for even light distribution.
Download Specification
Full Specification
Name
Muro 22W LED CCT Wallpack - Casambi Dimming Enabled
EAN
5063695000828
Volts (V)
220/240
Life Hours
35000
Beam Angle
113°
CRI (Ra)
80
Switching Cycles
30000
Frequency (Hz)
50/60
LED Drive Current
510mA
Energy Consumption (kWh/1000h)
22
IP Rating
IP65
Height (mm)
305
Width (mm)
255
Commodity Code
9405423100
Individual Product Weight (kg)
1.04
Primary Material
Polycarbonate
Operating Temperature
-30°C - +35°C
Lumens per Watt (lm/W)
106-121
Length (mm)
100
Wattage (W)
22
Colour Temperature (K)
3000/4000/6000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
1.12
Single box Height (mm)
310
Single box Width (mm)
260
Single Box Depth (mm)
105
Single Box Volume
0.008463
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
2329 (3000K) - 2652 (4000K) - 2418 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
LED Wallpacks
EDATA Product Range
Muro
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Outer Box Qty
10
Outer Box Weight (kg)
12.4
Outer Box Height (mm)
650
Outer Box Width (mm)
550
Outer Box Depth (mm)
280
Outer Box Volume
0.1001
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
Yes
Warranty
3 Years
Linears
No
Skyline Target
No

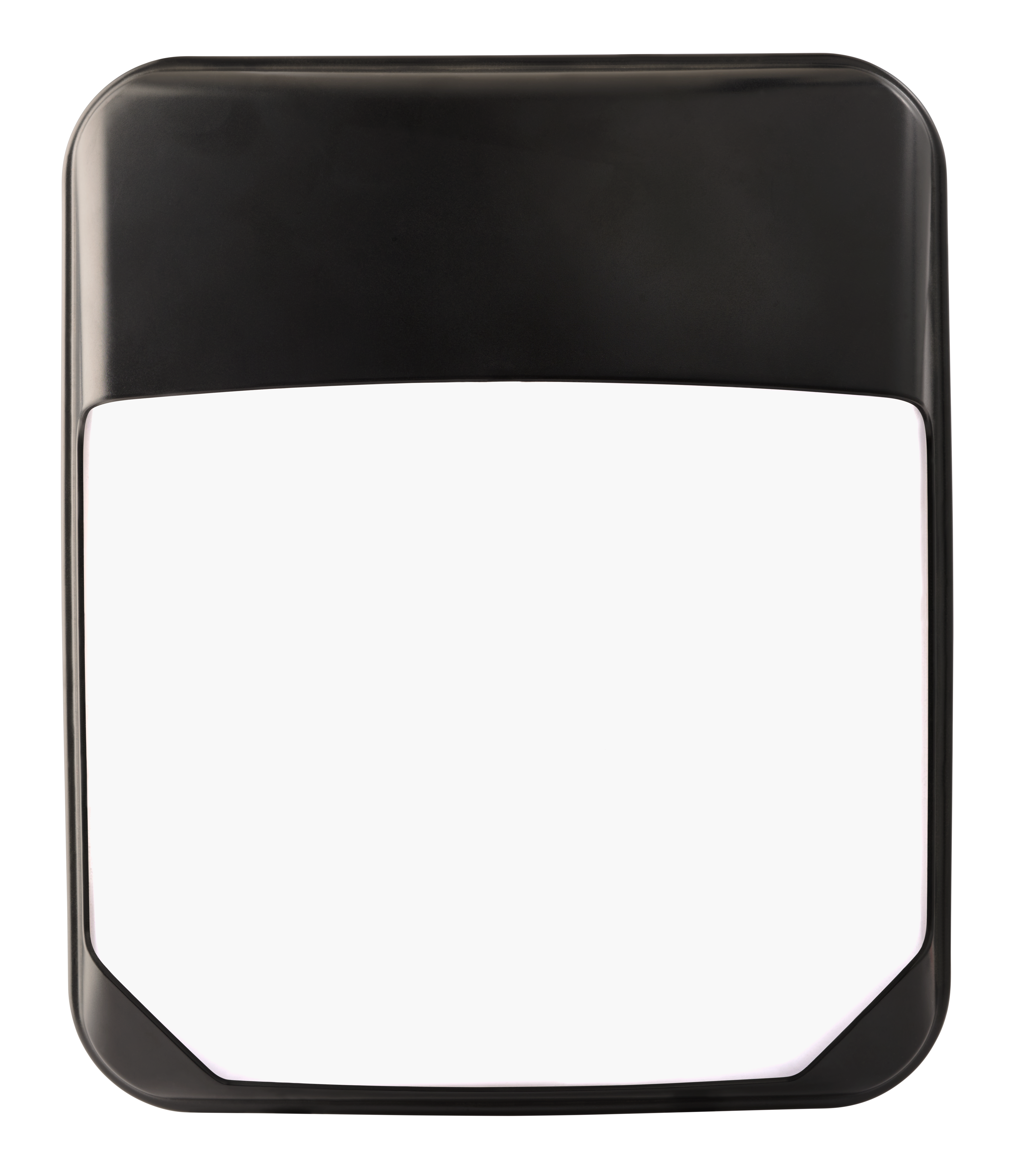

Product Image
