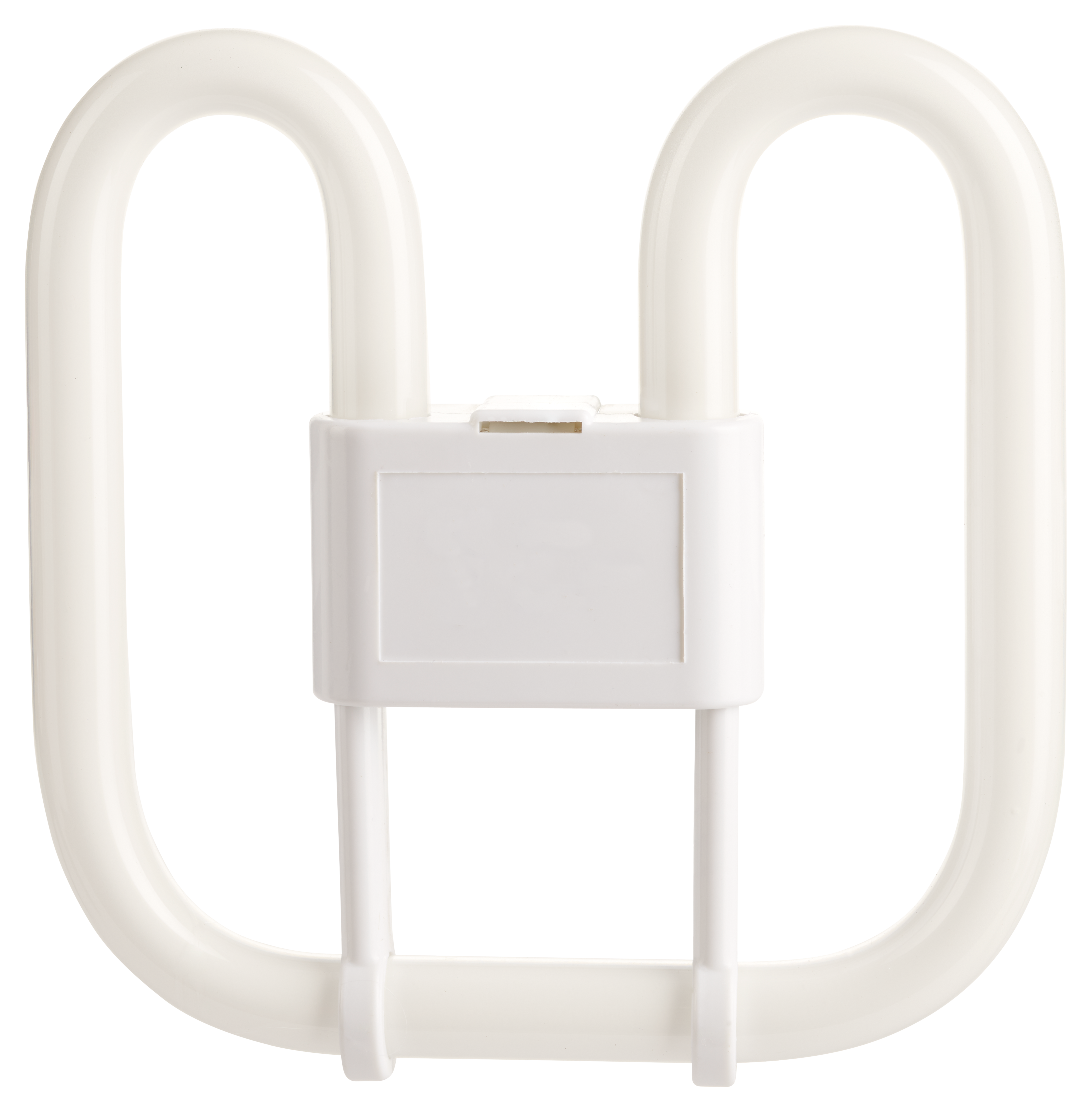

CFL Square 2/4 Pin

Fluorescent 28W Square - 4 Pin - 2700K

Code
04186
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:

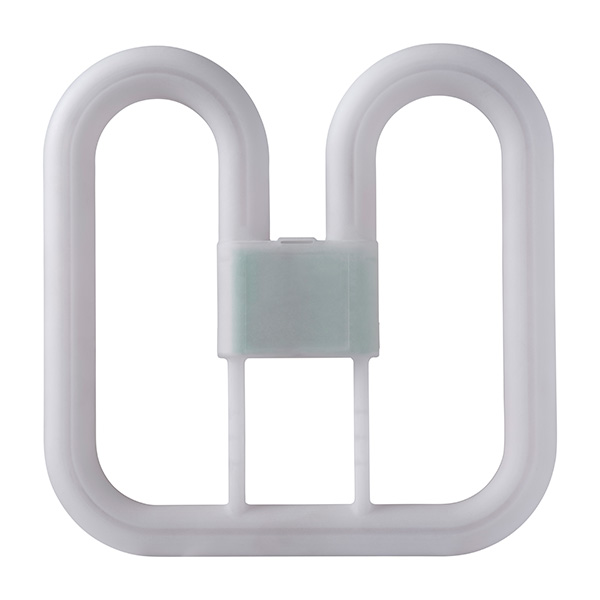

60460 - LED 14W 2D - 4 Pin - 2700K View product
Technical Specification
Cap
GR10q
Energy Rating
G
Our CFL Square Lamps are the perfect low-profile bulb for surface mounted fittings, corridors, bathrooms and bulkheads. Available in Warm White, White & Cool White, the CFL Square Lamps are a tried and tested product suitable for both domestic & commercial applications.
Quantity
Download Specification
Full Specification
Downloads
Name
Fluorescent 28W Square - 4 Pin - 2700K
Cap
GR10q
Life Hours
10000
Beam Angle
360°
Energy Rating
G
CRI (Ra)
80
Switching Cycles
5000
Energy Consumption (kWh/1000h)
31
Commodity Code
8539319090
EAN
5013588041865
Outer Box Qty
20
Width (mm)
205
Diameter (mm)
19
Outer Box Height (mm)
245
Outer Box Width (mm)
375
Outer Box Depth (mm)
460
Individual Product Weight (kg)
0.128
Outer Box Weight (kg)
5.018
Outer Box Volume
0.04226
Height (mm)
205
Depth (mm)
30
Lumens per Watt (lm/W)
74
Frequency (Hz)
50/60
Wattage (W)
28
Colour Temperature (K)
2700
Single Box Weight (kg)
0.19406
Single box Height (mm)
34
Single box Width (mm)
220
Single Box Depth (mm)
220
Single Box Volume
0.00165
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
Lamps
EDATA Product Range
Fluorescent Square
EDATA Order Unit
Unit
EDATA Quantity Interval
20
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
2050
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
Yes
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Minimum Order Quantity
20
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
1 Year
Linears
No
Skyline Target
No
