LED Glass BLS

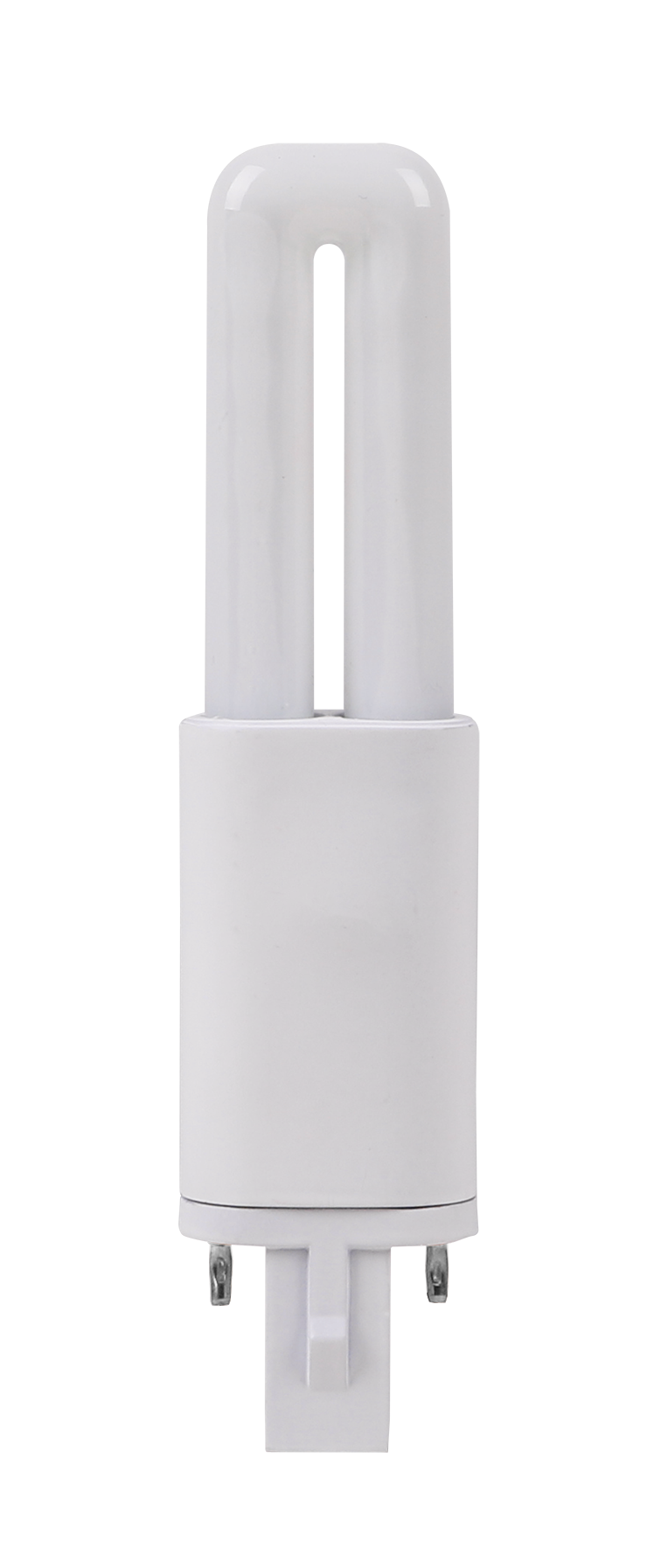

LED 3W Glass BLS - 2 Pin - Bypass - 4000K (Equivalent to 7W)

Code
71000
Technical Specification
Volts (V)
240
Cap
G23
Energy Rating
E
Our Glass LED BL lamps combine a traditional look with the benefits of LED technology, making them the ideal replacement for old fluorescent lamps.
Download Specification
Full Specification
Downloads
Name
LED 3W Glass BLS - 2 Pin - Bypass - 4000K (Equivalent to 7W)
Volts (V)
240
Cap
G23
Life Hours
25000
Beam Angle
360°
Energy Rating
E
CRI (Ra)
80
Switching Cycles
12500
Frequency (Hz)
50/60
LED Drive Current
65mA
Energy Consumption (kWh/1000h)
3
Width (mm)
30
Length (mm)
137
Commodity Code
8539520000
EAN
5013588002460
Inner Box Height (mm)
225
Inner Box Width (mm)
170
Inner Box Depth (mm)
155
Outer Box Height (mm)
360
Outer Box Width (mm)
245
Outer Box Depth (mm)
330
Inner Box Qty
50
Outer Box Qty
200
Outer Box Volume
0.029106
Inner Box Volume
0.00592875
Lumens per Watt (lm/W)
123
Wattage (W)
3
Equivalent Wattage (W)
7
Colour Temperature (K)
4000
Minimum Order Quantity
1
Single box Height (mm)
21
Single box Width (mm)
32
Single Box Depth (mm)
145
Single Box Volume
0.00009744
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
370
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
Lamps
EDATA Product Range
LED BL
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
3 Years
Linears
No
Skyline Target
No
Catalogue Page

Product Image
