LED Metal Halide

LED 38W GES Metal Halide/Son-T - 3000K

Code
61017
Technical Specification
Volts (V)
220/240
Cap
GES
Energy Rating
B
BELL LED Metal Halide/SON alternative lamps offer a simple, cost-effective LED solution with a quick return on investment, designed to replace High-Intensity Discharge (HID) lamps. This next-generation LED post-top lighting provides all the advantages of LED-to-HID replacement, such as energy efficiency and long lifespan, while delivering immediate savings with a low upfront cost. BELL LED Metal Halide/SON alternative lamps are engineered to match the size and light distribution of traditional HID lamps, and with our high-power LED filament technology, the difference is seamless. Additionally, their unique IP65-rated design allows them to be used in both indoor and outdoor applications.
Download Specification
Full Specification
Name
LED 38W GES Metal Halide/Son-T - 3000K
EAN
5013588610177
Commodity Code
8539322000
Volts (V)
220/240
Cap
GES
Life Hours
25000
Beam Angle
330°
Energy Rating
B
CRI (Ra)
70
Switching Cycles
20000
Frequency (Hz)
50/60
LED Drive Current
165mA
Energy Consumption (kWh/1000h)
38
Height (mm)
207
Width (mm)
46
Diameter (mm)
46
Lumens per Watt (lm/W)
189
Individual Product Weight (kg)
0.142
Outer Box Weight (kg)
1.153
Outer Box Height (mm)
237
Outer Box Width (mm)
171
Outer Box Depth (mm)
255
Outer Box Qty
6
Outer Box Volume
0.010334385
Surge Protection
2kV
Wattage (W)
38
Equivalent Wattage (W)
100
Colour Temperature (K)
3000
Single Box Weight (kg)
0.191
Single box Height (mm)
245
Single box Width (mm)
60
Single Box Depth (mm)
60
Single Box Volume
0.000882
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
7200
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
Lamps
EDATA Product Range
High Power Lamps
EDATA Quantity Interval
1
Minimum Order Quantity
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
3 Years
Linears
No
Skyline Target
No
Standard Deviation Colour Matching
6-step MacAdam ellipse
Dimmable
No
Depth (mm)
46

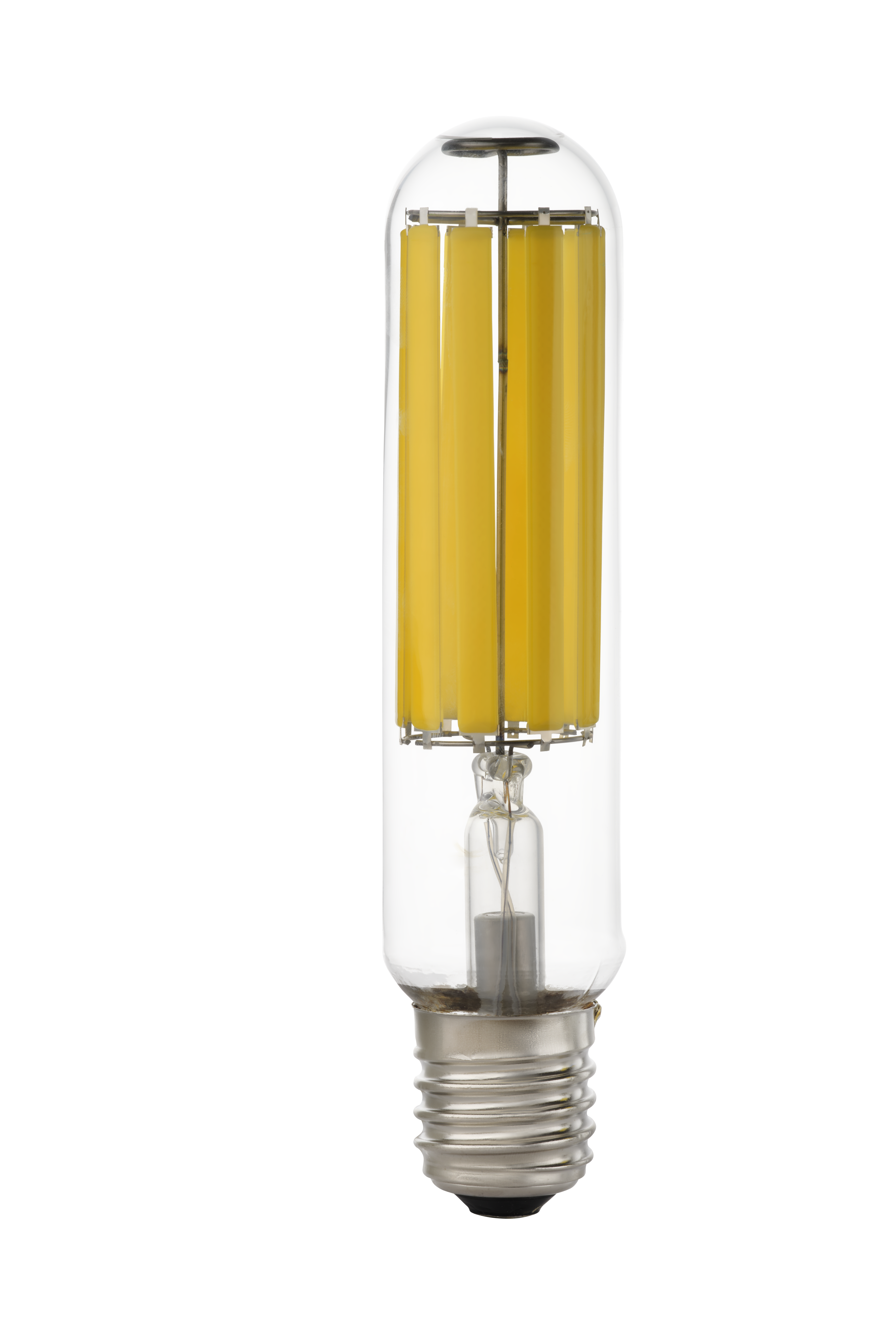

Product Image
