Arial Pro IP44

Arial Pro 16W IP44 LED CCT Downlight with DALI Dimming

Code
10963
Technical Specification
Volts (V)
220/240
The Arial Pro LED Downlight is a sleek looking luminaire designed to replace cumbersome CFL fittings. With a 7 year guarantee across both the IP44 & IP65 range, the Arial Pro can be installed in a variety of applications with the confidence of knowing this product will stand the test of time.
Download Specification
Full Specification
Downloads
Name
Arial Pro 16W IP44 LED CCT Downlight with DALI Dimming
Volts (V)
220/240
Life Hours
50000
Beam Angle
90°
CRI (Ra)
85
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
400mA
Energy Consumption (kWh/1000h)
16
IP Rating
IP44
Commodity Code
9405423100
EAN
5013588109633
Outer Box Qty
12
Height (mm)
102
Diameter (mm)
190
Outer Box Height (mm)
400
Outer Box Width (mm)
415
Outer Box Depth (mm)
415
Outer Box Weight (kg)
10
Outer Box Volume
0.06889
Individual Product Weight (kg)
0.4
Electric Class
Class II
Power Factor
>0.9
Dimming Option
DALI
Operating Temperature
-5°C - +35°C
Lumens per Watt (lm/W)
127-142
Wattage (W)
16
Equivalent Wattage (W)
80
Colour Temperature (K)
3000/4000/6000
Minimum Order Quantity
1
Single Box Weight (kg)
0.55
Single box Height (mm)
126
Single box Width (mm)
200
Single Box Depth (mm)
200
Single Box Volume
0.00504
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Downlights
EDATA Product Range
Arial Pro
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
2044 (3000K) / 2272 (4000K) / 2035 (6000K)
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years (2 Years On Site)
Linears
No
Skyline Target
No
Catalogue Page

Instructions

Photometric Data

Product Image

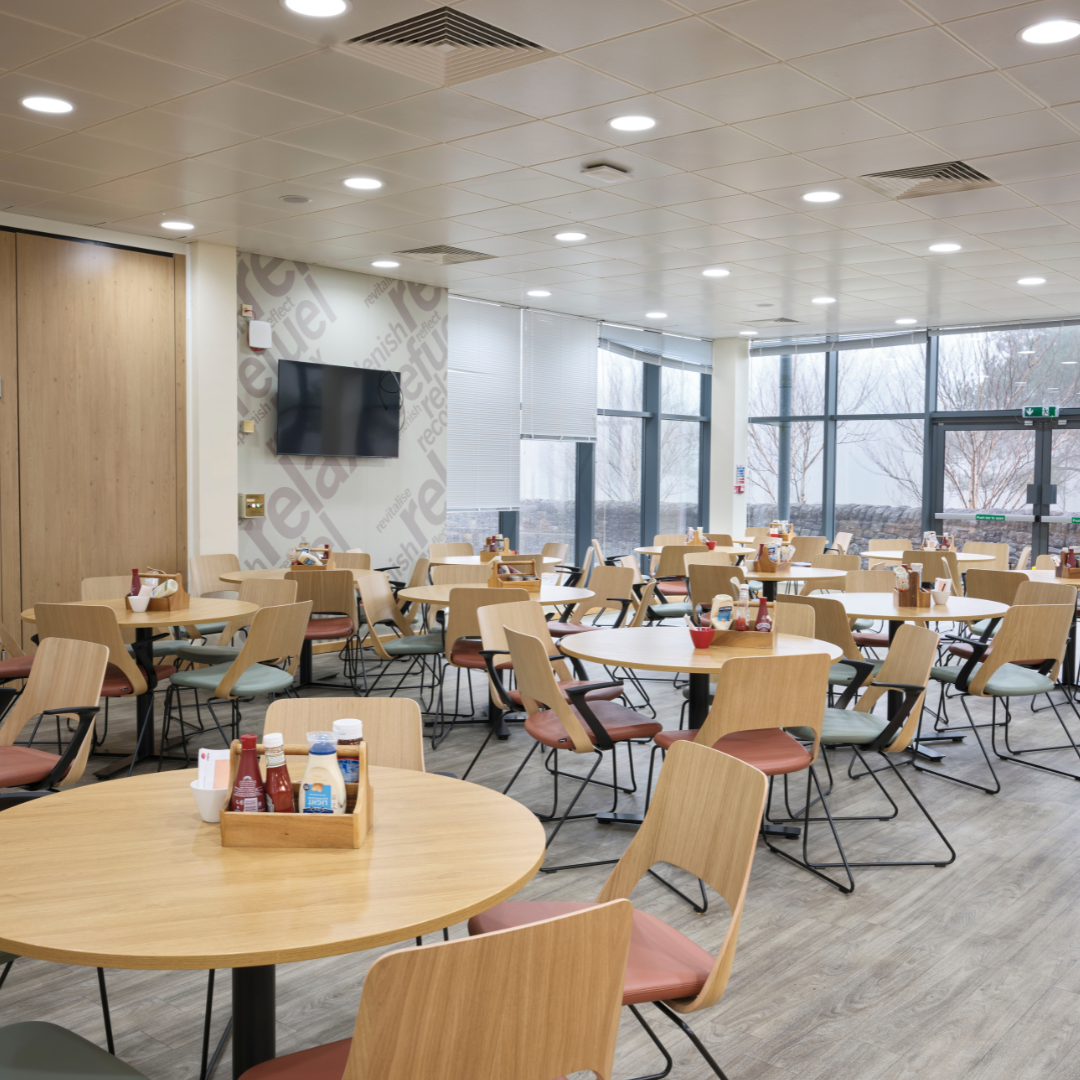

Case Study Image
