Firestay Duo Downlights

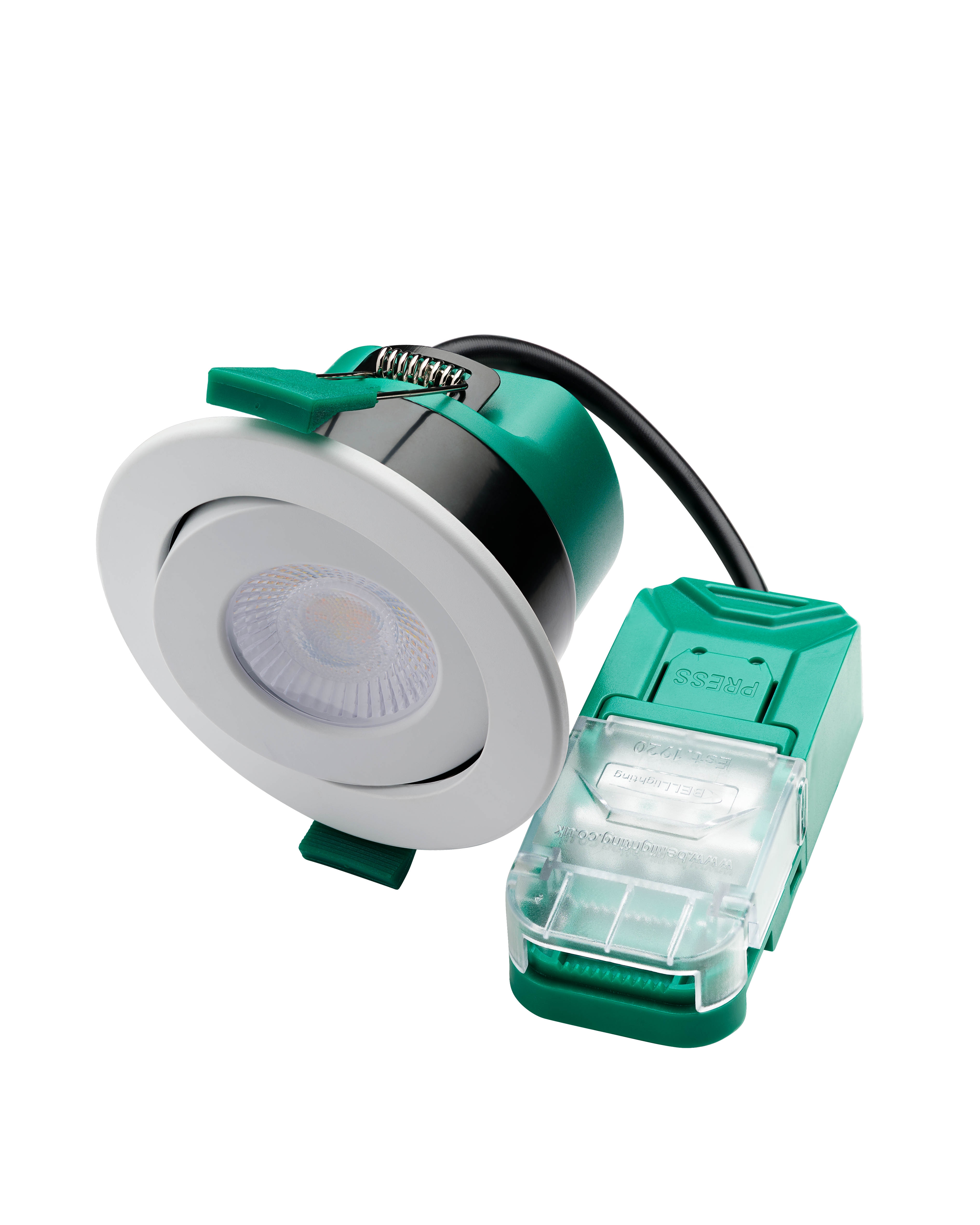

Firestay Duo 4/6W LED CCT Wattage Switchable Centre Tilt Downlight

Code
11380
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:

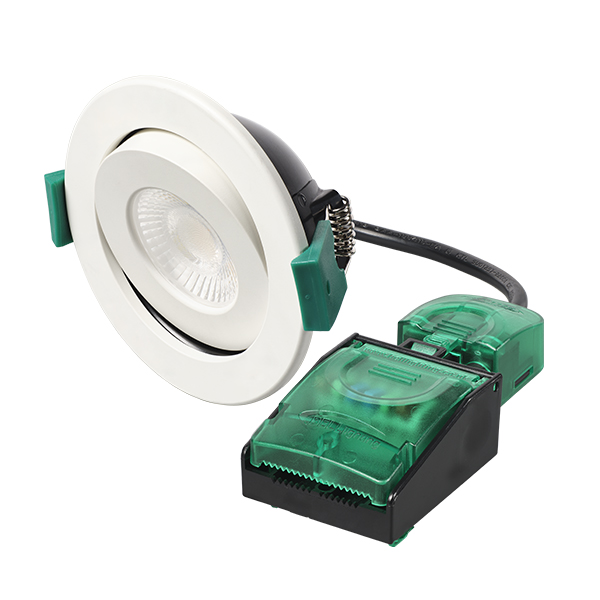

11380V2 - Firestay Duo 4/6W C/Tilt - 4 CCT, 2 Wattage Switchable, LED Downlight 60° (Bezels Sold S View product
Technical Specification
Volts (V)
220/240
Watts (W)
4/6
Colour Temp (K)
2700/3000/4000/6000
Lumens (lm)
415-620
  • Firestay Certification: 30, 60 and 90 minute solid joist ceilings, 30 minute I-Joist & Metal Web ceiling systems
  • 8 in 1 Fixture: 4 colour temperatures, 2 wattages
  • Front CCT switch
  • White, Satin, Chrome, Brass, Antique Brass & Matt Black bezels available
  • Tool-Free termination
  • Must be completed with bezel accessory sold separately
Quantity
Download Specification
Description
Full Specification
Downloads

The Firestay Duo LED CCT is a High Output Downlight ideal for high ceilings or any project requiring high intensity light, 4 way colour and 2 wattages switchable straight out of the box.

With a 7 year product warranty, the front facing switch enables the user to seamlessly change the colour temperature (2700/3000/4000/6000K) to suit the mood of any space while the rear facing wattage switch enable you to instantly dictate the light level of any commercial or residential premises.

Name
Firestay Duo 4/6W LED CCT Wattage Switchable Centre Tilt Downlight
Volts (V)
220/240
Watts (W)
4/6
Colour Temp (K)
2700/3000/4000/6000
Lumens (lm)
415-620
Candelas (cd)
565
Life Hours
50000
Beam Angle
60°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
LED Drive Current
90mA
Energy Consumption (kWh/1000h)
6
IP Rating
IP65
Downlight Cut Out (mm)
80
Height (mm)
61
Diameter (mm)
100
Commodity Code
9405423100
EAN
5013588113807
Country Of Origin
CN
UNSPSC Code
39111515
Single Carton Weight (KG)
0.32
Single Carton Height (mm)
107
Single Carton Width (mm)
110
Single Carton Depth (mm)
80
Individual Volume
0.00094
Inner Box Weight (kg)
3.4
Inner Box Height (mm)
547
Inner Box Width (mm)
225
Inner Box Depth (mm)
90
Outer Box Height (mm)
567
Outer Box Width (mm)
245
Outer Box Depth (mm)
223
Inner Box Qty
10
Outer Box Qty
20
Individual Product Weight (kg)
0.28
Outer Box Weight (kg)
7.1
Plastic Packaging Weight (kg)
0.04
Outer Box Volume
0.03098
Inner Box Volume
0.01108
Lumens per Watt (lm/W)
104
Impact Protection
IK7
Product Category
LED Luminaires - Plastic
Product Application
LED Downlight
Inner Carton Barcode
1138000000010
Outer Carton Barcode
1138000000020
Dimming Option
Leading & Trailing Edge (Trailing Edge Recommended)
