Firestay Duo Downlights

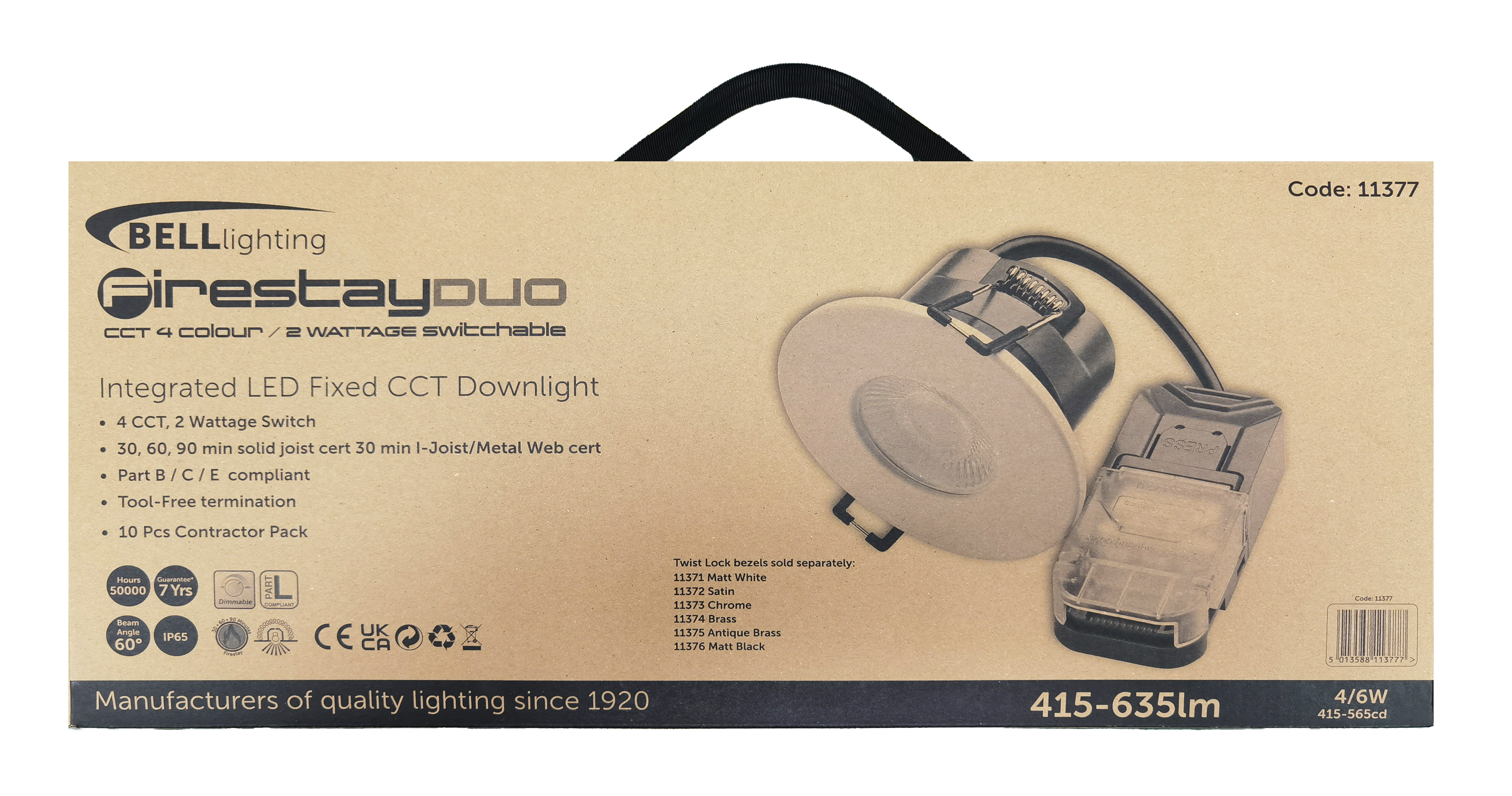

Firestay Duo 4/6W LED CCT Wattage Switchable Downlight Contractor Pack (x10)

Code
11377
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:
11377V2 - Firestay Duo 4/6W - 4 CCT & 2 Wattage Switchable LED Downlight Contractor Pack (x10) with View product
Technical Specification
Volts (V)
220/240
Energy Rating
F
  • Firestay Certification: 30, 60 and 90 minute solid joist ceilings, 30 minute I-Joist & Metal Web ceiling systems
  • 8 in 1 Fixture: 4 colour temperatures, 2 wattages
  • Front CCT switch
  • White, Satin, Chrome, Brass, Antique Brass & Matt Black bezels available
  • Tool-Free termination
Quantity
Download Specification
Description
Full Specification
Downloads

The Firestay Duo LED CCT is a High Output Downlight ideal for high ceilings or any project requiring high intensity light, 4 way colour and 2 wattages switchable straight out of the box.

With a 7 year product warranty, the front facing switch enables the user to seamlessly change the colour temperature (2700/3000/4000/6000K) to suit the mood of any space while the rear facing wattage switch enable you to instantly dictate the light level of any commercial or residential premises.

Name
Firestay Duo 4/6W LED CCT Wattage Switchable Downlight Contractor Pack (x10)
Volts (V)
220/240
Life Hours
50000
Beam Angle
60°
CRI (Ra)
80
Switching Cycles
100000
Frequency (Hz)
50/60
LED Drive Current
90mA
Energy Consumption (kWh/1000h)
6
IP Rating
IP65
Height (mm)
53
Diameter (mm)
90
Commodity Code
9405920090
EAN
5013588113777
Outer Box Qty
20
Individual Product Weight (kg)
2.15
Outer Box Weight (kg)
11.73
Outer Box Height (mm)
540
Outer Box Width (mm)
252
Outer Box Depth (mm)
385
Outer Box Volume
0.05239
Lumens per Watt (lm/W)
104
Energy Rating
F
Dimming Option
Leading & Trailing Edge (Trailing Edge Recommended)
Wattage (W)
4/6
Colour Temperature (K)
2700/3000/4000/6000
Candelas
565
IK Rating
IK07
Single Box Weight (kg)
3.9
Single box Height (mm)
515
Single box Width (mm)
227
Single Box Depth (mm)
70
Single Box Volume
0.00818
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Downlights
EDATA Product Range
Firestay Duo
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
415-620
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Minimum Order Quantity
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years
Linears
No
Skyline Target
No
Catalogue Page

Instructions

Product Image
