Powertron Narrow Asymmetric Beam (NAB)

Skyline Powertron 1200W LED Asymmetric (NAB) Floodlight - 4200K

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
11331
Technical Specification
Volts (V)
180/440
Watts (W)
1200
Colour Temp (K)
4200
Lumens (lm)
188650
Dimmable?
No

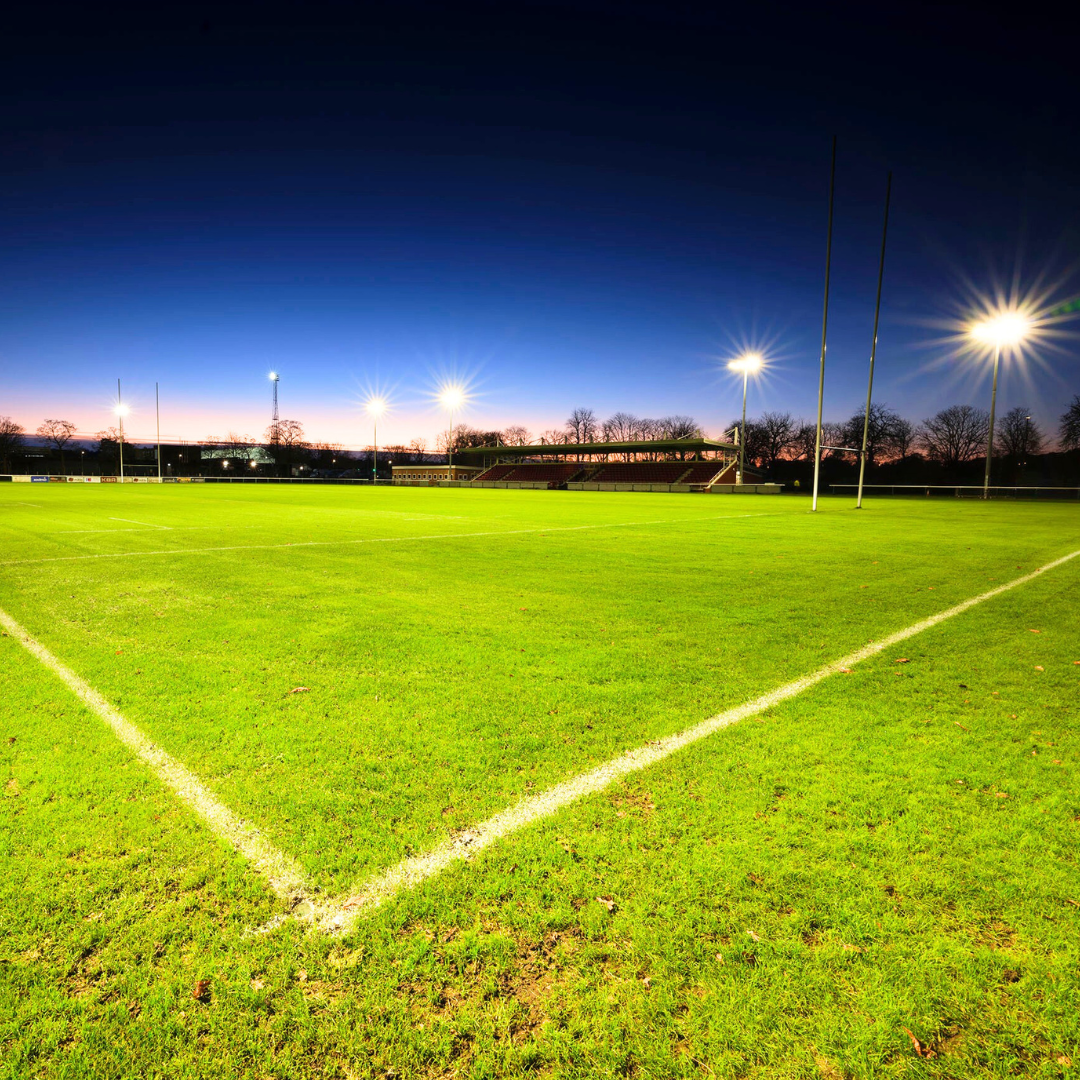

The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering 260,000 lumen output (1800W). The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.
Download Specification
Description
Full Specification
Downloads

The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering 260,000 lumen output (1800W). The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.

  • Up to 146 Lm/W
  • Fully adjustable angled mounting bracket
  • Suitable for multiple row columns installation
  • Angle markings on bracket for easy alignment
  • Full cut-off horizontal asymmetric floodlight
  • Low weight & windage
  • Optional ULR Shields available for 0° upward light, glare and obstructive light reduction
  • Remote driver box, can be mounted on ground level for easy maintenance
Name
Skyline Powertron 1200W LED Asymmetric (NAB) Floodlight - 4200K
Volts (V)
180/440
Watts (W)
1200
Colour Temp (K)
4200
Lumens (lm)
188650
Life Hours
100000
CRI (Ra)
70
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
1200
IP Rating
IP66
Height (mm)
785
Width (mm)
605
Depth (mm)
253
Commodity Code
9405423990
EAN
5013588113319
Country Of Origin
CN
UNSPSC Code
39111626
Dimmable?
No
Individual Product Weight (kg)
Including Driver - 28 / Remote Driver - 22.5 (Weights Do Not Include Visor)
Impact Protection
IK8
Outer Box Qty
1
Equivalent Watts (W)
2000
Lumens per Watt (lm/W)
157
