Powertron Narrow Asymmetric Beam (NAB)

Skyline Powertron 600W LED Asymmetric (NAB) Floodlight - 4200K

This product is made to order.
i
We have stock to build the quantity shown, but there is a 5-10 day lead time for delivery.
Code
11330
Technical Specification
Volts (V)
200-400 (Single/Cross Phase)
Watts (W)
600
Colour Temp (K)
4200
Lumens (lm)
94200

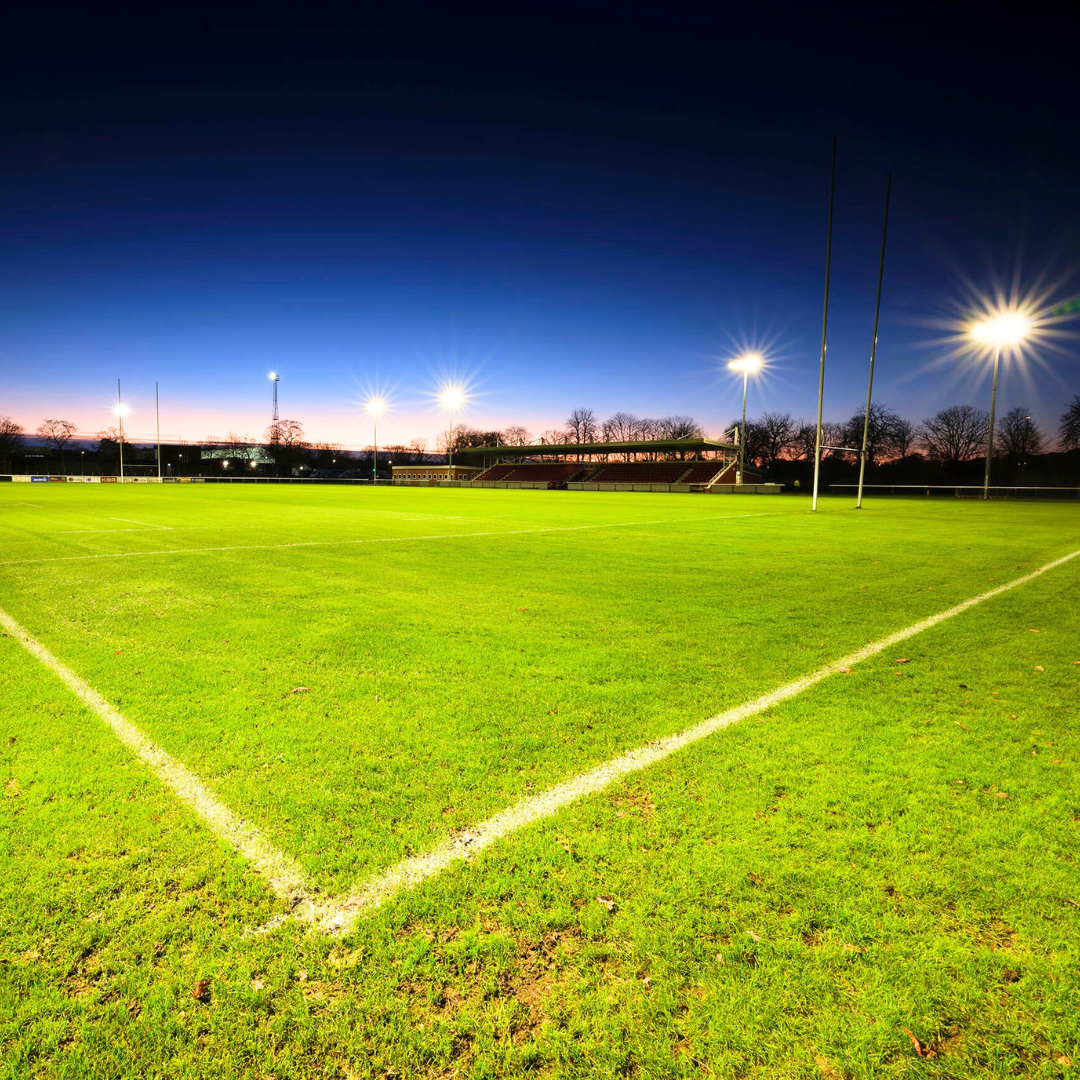

The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering 260,000 lumen output (1800W). The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.

Description
Full Specification
Downloads

The Skyline Powertron Asymmetric LED Floodlight is the highest lumen output floodlight ever produced by BELL. The black powder coated die cast aluminium construction gives an ultra-modern aesthetic combined with a staggering 260,000 lumen output (1800W). The rugged, robust construction of the Powertron makes this fitting ideal for external sports facilities open to the elements.

  • Up to 146 Lm/W
  • Fully adjustable angled mounting bracket
  • Suitable for multiple row columns installation
  • Angle markings on bracket for easy alignment
  • Full cut-off horizontal asymmetric floodlight
  • Low weight & windage
  • Optional ULR Shields available for 0° upward light, glare and obstructive light reduction
  • Remote driver box, can be mounted on ground level for easy maintenance




Name
Skyline Powertron 600W LED Asymmetric (NAB) Floodlight - 4200K
Volts (V)
200-400 (Single/Cross Phase)
Watts (W)
600
Colour Temp (K)
4200
Lumens (lm)
94200
Life Hours
100000
CRI (Ra)
70
Guarantee
10 Years
Switching Cycles
200000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
600
IP Rating
IP66
Height (mm)
474
Width (mm)
605
Depth (mm)
172
Commodity Code
9405423990
EAN
5013588113302
Country Of Origin
CN
UNSPSC Code
39111626
Individual Product Weight (kg)
Including Driver - 13.2 / Remote Driver - 8.9 (Weights Do Not Include Visor)
Impact Protection
IK8
Outer Box Qty
1
Equivalent Watts (W)
1000
Lumens per Watt (lm/W)
157
Windage
0.07m² at 0° / 0.1m² at 15° / 0.14m² at 30°
Product Category
LED Luminaires - Not Plastic
Product Application
Sports Lighting
LED Chip
OSRAM 3737
Power Factor
>0.9
Operating Temperature
-30°C to +35°C
Lumens Maintenance Ratio
80
Surge Protection
10KV
Driver Integral?
No
Dimming Option
Dali
