Skyline Virtus Asymmetric

Skyline Virtus 100/150/200W Wattage Switchable Asymmetric Floodlight - 4000K

Code
11489
Technical Specification
Volts (V)
110/240
Watts (W)
100/150/200
Colour Temp (K)
4000
Lumens (lm)
15461 (100W) / 22471 (150W) / 30424 (200W)
Designed and engineered in the UK specifically to meet the requirements for sports lighting and to reduce light pollution levels. The Skyline Virtus is a high specification floodlight, wattage switchable as standard with a 50,000 hour lifespan, 7 year warranty and 2 year on site warranty.
Download Specification
Full Specification
Downloads
Name
Skyline Virtus 100/150/200W Wattage Switchable Asymmetric Floodlight - 4000K
Volts (V)
110/240
Watts (W)
100/150/200
Colour Temp (K)
4000
Lumens (lm)
15461 (100W) / 22471 (150W) / 30424 (200W)
Life Hours
50000
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
200
IP Rating
IP66
Height (mm)
447
Width (mm)
359
Depth (mm)
75
Country Of Origin
CN
Individual Product Weight (kg)
5.2
Commodity Code
9405423990
EAN
5013588114897
UNSPSC Code
39111626
Impact Protection
IK8
Equivalent Watts (W)
250-500
Lumens per Watt (lm/W)
150-155
LED Drive Current
139mA
Flex
1.5m
Power Factor
>0.9
Product Category
LED Luminaires - Not Plastic
Product Application
Sports Lighting
LED Chip
Nichia GRT-V1
Surge Protection
10KV
Operating Temperature
-30°C to +35°C
Lumens Maintenance Ratio
80
Windage
0.112mv²
Single Carton Weight (KG)
6.2
Single Carton Height (mm)
480
Single Carton Width (mm)
390
Single Carton Depth (mm)
115
Individual Volume
0.021528
Catalogue Page

Instructions

Photometric Data

Product Image

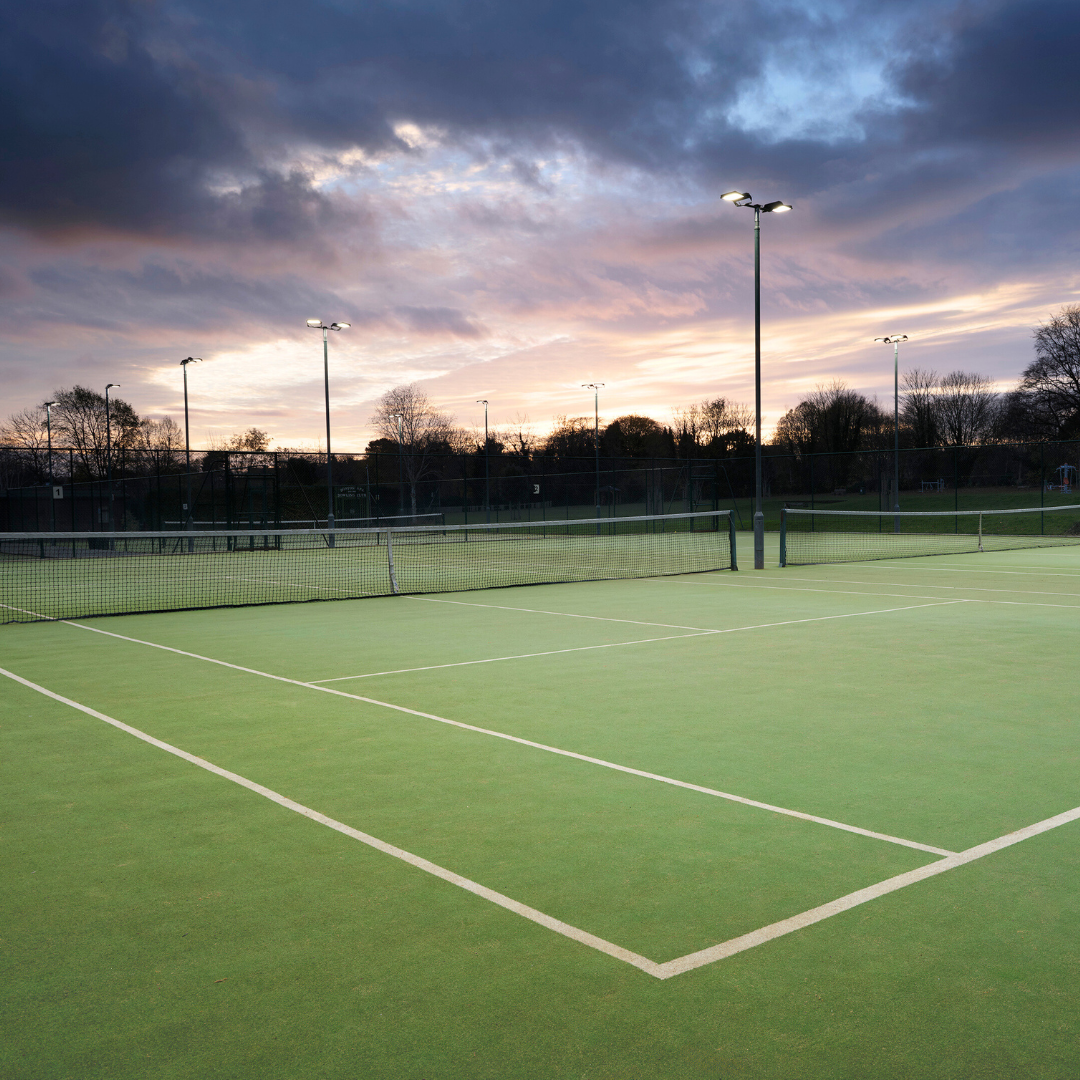

Case Study Image
