Skyline Virtus Asymmetric

Skyline Virtus 150/225/300W Wattage Switchable Asymmetric Floodlight - 4000K

Code
11491
Technical Specification
Volts (V)
110/240
Watts (W)
150/225/300
Colour Temp (K)
4000
Lumens (lm)
22471 (150W) / 34568 (225W) / 46090 (300W)
Designed and engineered in the UK specifically to meet the requirements for sports lighting and to reduce light pollution levels. The Skyline Virtus is a high specification floodlight, wattage switchable as standard with a 50,000 hour lifespan, 7 year warranty and 2 year on site warranty.
Download Specification
Full Specification
Downloads
Name
Skyline Virtus 150/225/300W Wattage Switchable Asymmetric Floodlight - 4000K
Volts (V)
110/240
Watts (W)
150/225/300
Colour Temp (K)
4000
Lumens (lm)
22471 (150W) / 34568 (225W) / 46090 (300W)
Life Hours
50000
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
300
IP Rating
IP66
Height (mm)
495
Width (mm)
419
Depth (mm)
75
Country Of Origin
CN
Commodity Code
9405423990
EAN
5013588114910
Individual Product Weight (kg)
6.4
UNSPSC Code
39111626
Impact Protection
IK8
Equivalent Watts (W)
750
Lumens per Watt (lm/W)
150-154
LED Drive Current
132mA
Flex
1.5m
Power Factor
>0.9
Product Category
LED Luminaires - Not Plastic
Product Application
Sports Lighting
LED Chip
Nichia GRT-V1
Surge Protection
10KV
Operating Temperature
-30°C to +35°C
Lumens Maintenance Ratio
80
Windage
0.144m²
Single Carton Weight (KG)
7.4
Single Carton Height (mm)
525
Single Carton Width (mm)
450
Single Carton Depth (mm)
115
Individual Volume
0.02716875
Catalogue Page

Instructions

Photometric Data

Product Image

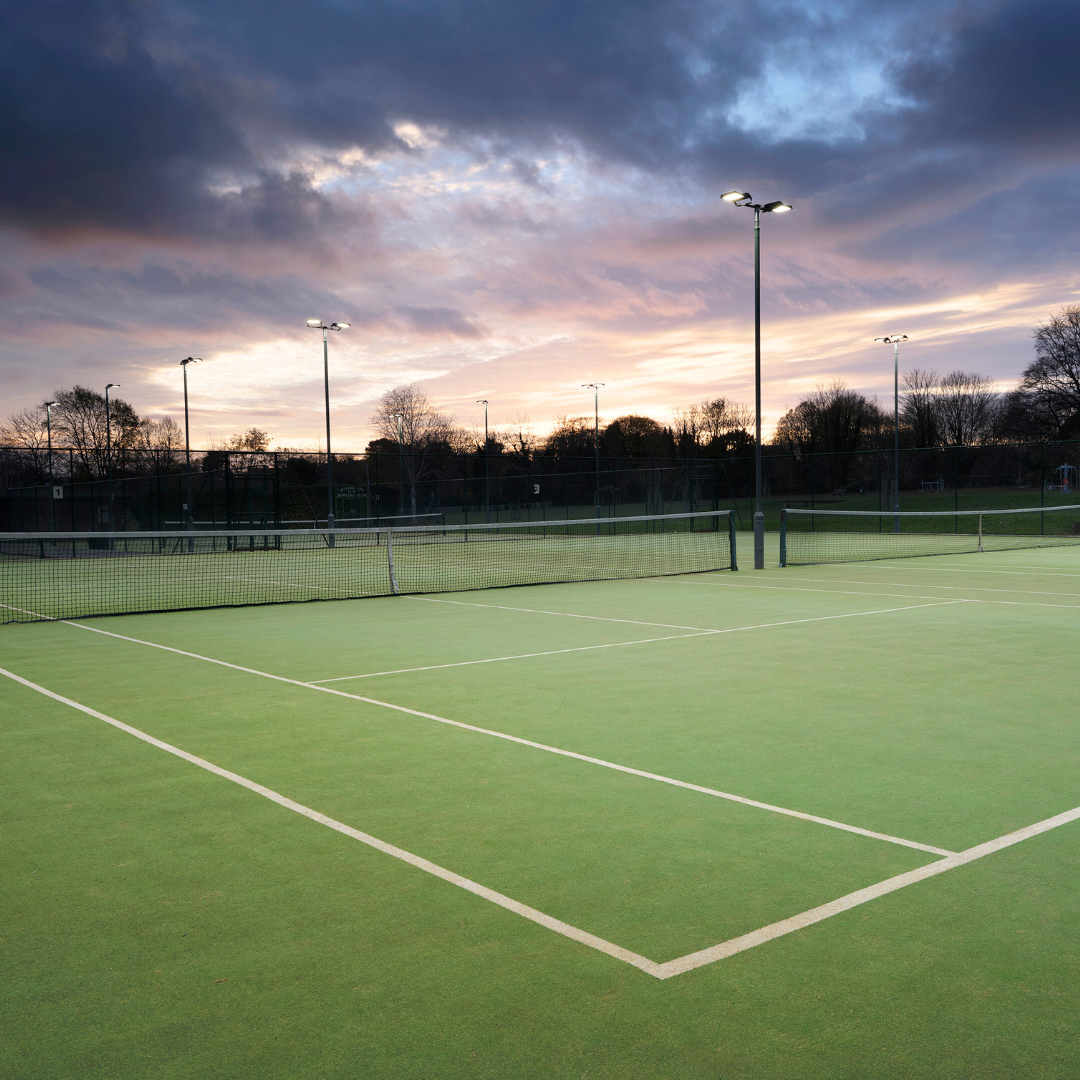

Case Study Image
