Dura CCT V2

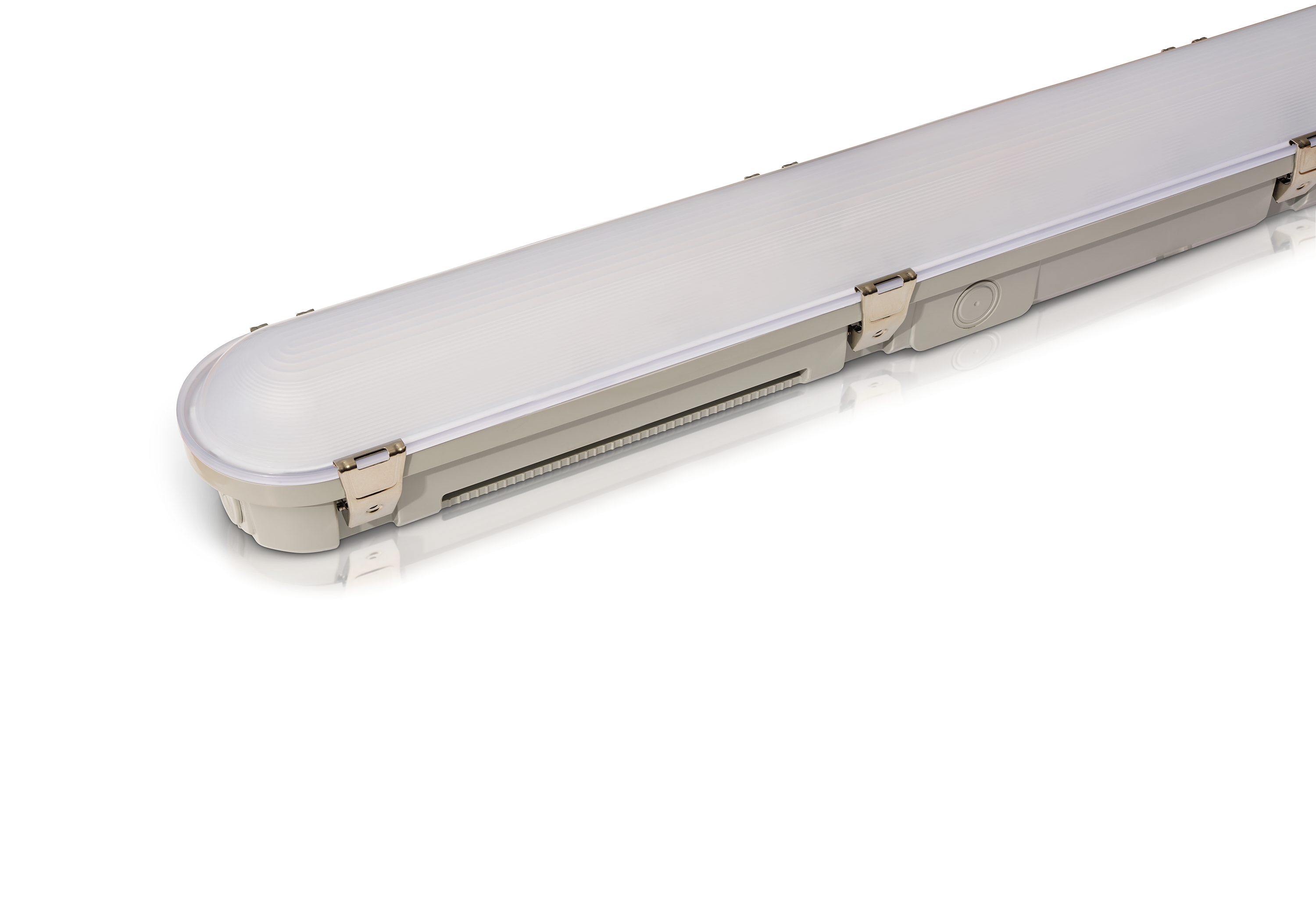

Dura 16/21/26/32W Wattage Switchable LED CCT V2 Anti-Corrosive 4ft Batten

Code
10275V2
Next Delivery
31/05/2025 - 804 items
Technical Specification
Volts (V)
220/240
Watts (W)
16/21/26/32
Colour Temp (K)
3000/4000/6000
Lumens (lm)
16W = 2579 (3/4/6000K) / 21W = 3311 (3000K) - 3369 (4000K) - 3311 (6000K) / 26W = 3874 (3000K) - 4186 (4000K) - 3952 (6000K) / 32W = 4553 (3000K) - 5051 (4000K) - 4967 (6000K)
The Dura LED CCT Anti-Corrosive Batten is part of on of BELL's flagship luminaire families. This fitting takes the reliability of the Dura Batten and adds CCT & wattage switchable functionality.
Download Specification
Full Specification
Downloads
Name
Dura 16/21/26/32W Wattage Switchable LED CCT V2 Anti-Corrosive 4ft Batten
EAN
5013588002804
Country Of Origin
CN
Product Category
LED Luminaires - Plastic
Product Application
LED Batten
Commodity Code
9405423100
Volts (V)
220/240
Watts (W)
16/21/26/32
Colour Temp (K)
3000/4000/6000
Life Hours
50000
Beam Angle
120°
CRI (Ra)
85
Switching Cycles
25000
Frequency (Hz)
50/60
LED Drive Current
90mA
Energy Consumption (kWh/1000h)
32
IP Rating
IP66
Electric Class
1
Height (mm)
78
Width (mm)
96
Length (mm)
1270
Diameter (mm)
20
Individual Product Weight (kg)
1.45
Single Carton Weight (KG)
1.6
Single Carton Height (mm)
83
Single Carton Width (mm)
100
Single Carton Depth (mm)
1275
Individual Volume
0.0105825
Outer Box Weight (kg)
10.8
Outer Box Height (mm)
180
Outer Box Width (mm)
315
Outer Box Depth (mm)
1290
Outer Box Qty
6
Outer Box Volume
0.073143
Outer Carton Barcode
10275V2000006
Guarantee
7 Years
Lumens (lm)
16W = 2579 (3/4/6000K) / 21W = 3311 (3000K) - 3369 (4000K) - 3311 (6000K) / 26W = 3874 (3000K) - 4186 (4000K) - 3952 (6000K) / 32W = 4553 (3000K) - 5051 (4000K) - 4967 (6000K)
Lumens per Watt (lm/W)
142-161
Lumens Maintenance Ratio
L80 B10
Impact Protection
IK10
LED Chip
Samsung
Primary Material
Polycarbonate
Operating Temperature
-30°C - +35°C
UNSPSC Code
39111544
