Dura CCT

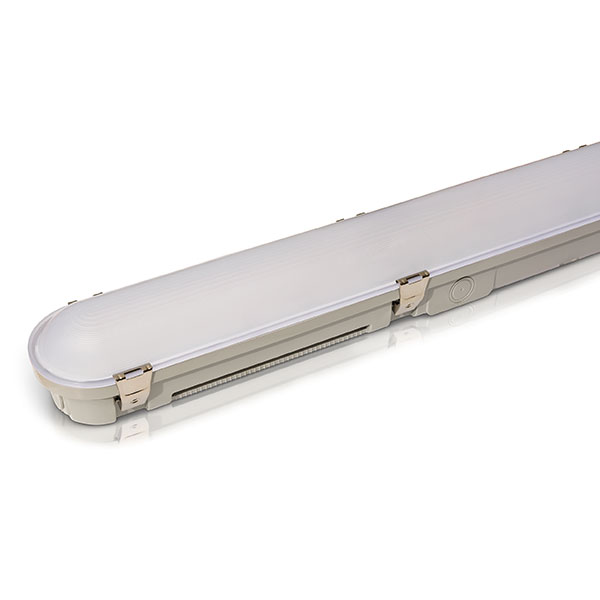

Dura 25/50W Wattage Switchable LED CCT Anti-Corrosive 5ft Batten

Code
10276
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:
10276V2 - Dura 25/33/42/50W Wattage Switchable LED CCT Anti-Corrosive 5ft Batten View product
Technical Specification
Volts (V)
220/240
The Dura LED CCT Anti-Corrosive Batten is part of on of BELL's flagship luminaire families. This fitting takes the reliability of the Dura Batten and adds CCT & wattage switchable functionality.
Quantity
Download Specification
Full Specification
Downloads
Name
Dura 25/50W Wattage Switchable LED CCT Anti-Corrosive 5ft Batten
Volts (V)
220/240
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
IP Rating
IP66
Individual Product Weight (kg)
2.1
Outer Box Weight (kg)
15.46
Outer Box Height (mm)
1585
Outer Box Width (mm)
205
Outer Box Depth (mm)
230
Commodity Code
9405423100
Outer Box Volume
0.07473
Outer Box Qty
6
EAN
5013588102764
Height (mm)
90
Length (mm)
1530
Lumens per Watt (lm/W)
148-169
Depth (mm)
90
Primary Material
Polycarbonate
Operating Temperature
-30°C - +35°C
Wattage (W)
25/50
Colour Temperature (K)
3000/4000/6000
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
2.41
Single box Height (mm)
1570
Single box Width (mm)
100
Single Box Depth (mm)
90
Single Box Volume
0.01413
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Battens
EDATA Product Range
Dura
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
25W = 3901 (3000K) - 4224 (4000K) - 3703 (6000K) / 50W = 7801 (3000K) - 8448 (4000K) - 7890 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

Instructions

Photometric Data

Product Image
