Ultra Slim V2

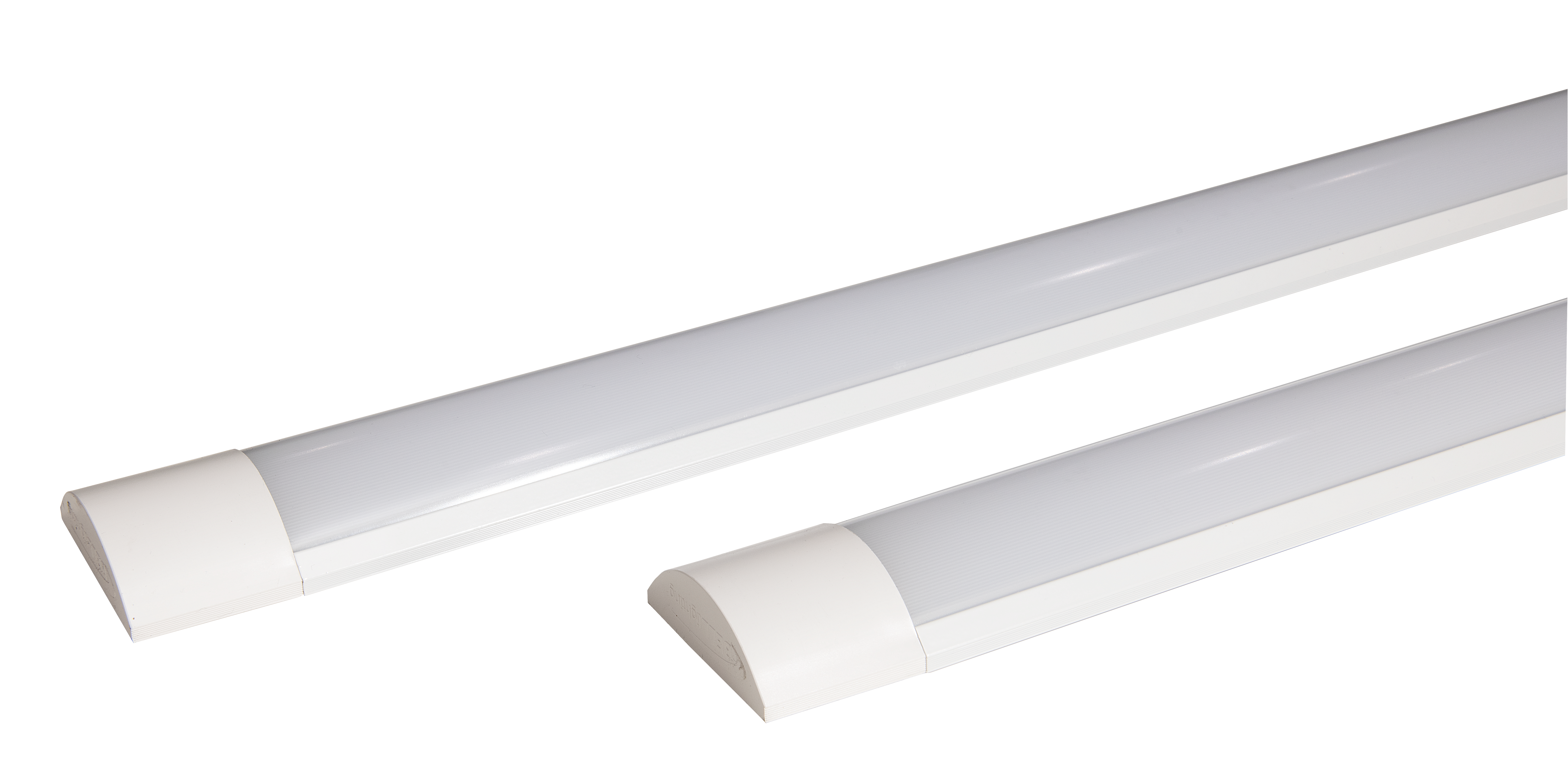

Ultra Slim V2 23/34W LED Integrated Power Selectable 4ft Batten - 4000K

Code
10270V2
Technical Specification
Volts (V)
220/240
The Ultra Slim V2 LED Integrated Batten is a cost-effective shatterproof luminaire, ideal for domestic applications. The Ultra Slim V2's streamlined design gives the ability to seamlessly illuminate small spaces without the need for a large luminaire.
Download Specification
Full Specification
Downloads
Name
Ultra Slim V2 23/34W LED Integrated Power Selectable 4ft Batten - 4000K
Commodity Code
9405423100
EAN
5013588001999
Volts (V)
220/240
Life Hours
50000
Beam Angle
120°
CRI (Ra)
80
Switching Cycles
50000
Frequency (Hz)
50/60
LED Drive Current
165mA/245mA
Energy Consumption (kWh/1000h)
34
IP Rating
IP20
Height (mm)
26
Width (mm)
75
Length (mm)
1230
Electric Class
Class II
Individual Product Weight (kg)
0.45
Lumens per Watt (lm/W)
140
Outer Box Weight (kg)
0.8
Outer Box Height (mm)
1225
Outer Box Width (mm)
350
Outer Box Depth (mm)
180
Outer Box Qty
20
Outer Box Volume
0.077175
Guarantee
5 Years
Wattage (W)
23/34
Equivalent Wattage (W)
95
Colour Temperature (K)
4000
Single Box Weight (kg)
0.105
Single box Height (mm)
1210
Single box Width (mm)
79
Single Box Depth (mm)
33
Single Box Volume
0.00315447
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
UOM For Battery Weight
KG
Lumen output (lm)
3220 (23W) / 4760 (34W)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
