Arial Multi Plus

Arial Plus Multi Backlit LED UGR<19 1200x300 White Panel - 4000K

Code
11772
Next Delivery
01/06/2025 - 504 items
Technical Specification
Volts (V)
220/240
Watts (W)
20/26/30/36
Colour Temp (K)
4000
Lumens (lm)
2685 (20W) / 3434 (26W) / 3915 (30W) / 4656 (36W)
The Arial Plus Multi is our leading wattage switchable panel. With a high lumen output of up to 125 lumens per watt, this panel is ideal for areas that require high lux levels. The Arial Plus Multi can be installed in areas where TPa rated lighting products are essential, such as emergency exit routes including stairways and corridors.
Download Specification
Full Specification
Downloads
Name
Arial Plus Multi Backlit LED UGR<19 1200x300 White Panel - 4000K
Volts (V)
220/240
Watts (W)
20/26/30/36
Colour Temp (K)
4000
Lumens (lm)
2685 (20W) / 3434 (26W) / 3915 (30W) / 4656 (36W)
Life Hours
50000
CRI (Ra)
85
Guarantee
7 Years
Switching Cycles
25000
Frequency (Hz)
50/60
IP Rating
IP40
Height (mm)
1195
Width (mm)
295
Depth (mm)
25
Commodity Code
9405423990
EAN
5013588117720
Country Of Origin
CN
UNSPSC Code
39111544
Individual Product Weight (kg)
1.85
Single Carton Weight (KG)
2.4
Single Carton Height (mm)
1282
Single Carton Width (mm)
325
Single Carton Depth (mm)
36
Individual Volume
0.0149994
Outer Box Weight (kg)
14.5
Outer Box Height (mm)
1295
Outer Box Width (mm)
340
Outer Box Depth (mm)
250
Outer Box Qty
4
Outer Box Volume
0.110075
Lumens per Watt (lm/W)
129-134
EPREL Registration Number
1766677
Product Category
LED Luminaires - Not Plastic
Product Application
Commercial / Education / Offices
Outer Carton Barcode
1177200000004
Driver Manufacturer
BELL
Operating Temperature
0°C-35°C
Lumens Maintenance Ratio
L80 B10
TPa/TPb
TPa
Diffuser Material
Polycarbonate
LED Chip
Philips
Energy Consumption (kWh/1000h)
36
Unified Glare Rating
<19
Primary Material
Steel
Catalogue Page

Instructions

Photometric Data

Product Image

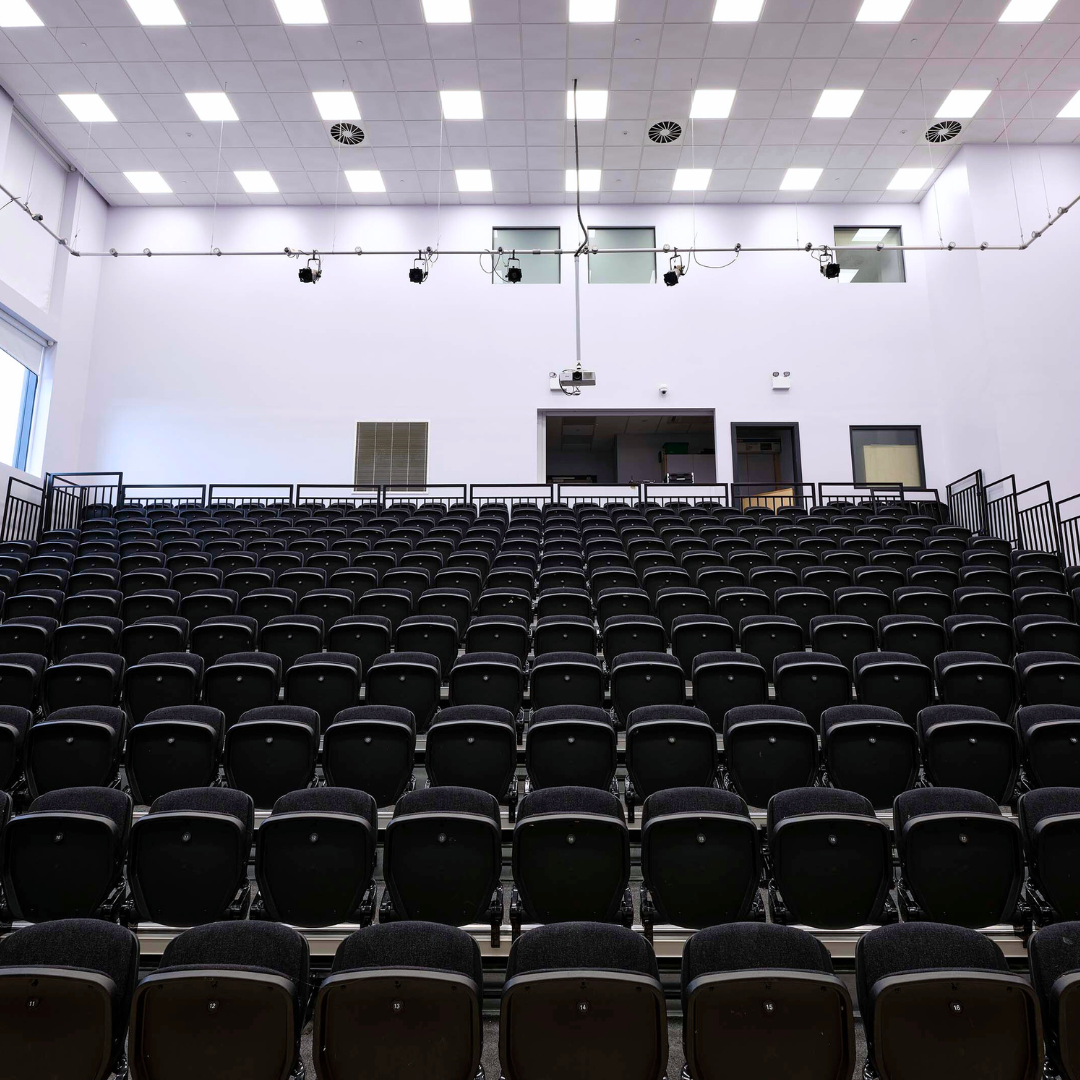

Case Study Image
