Lumo Asymmetric Wallpack

Lumo 13/16/18/20/25W LED CCT Asymmetric Wallpack

Code
11500
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:

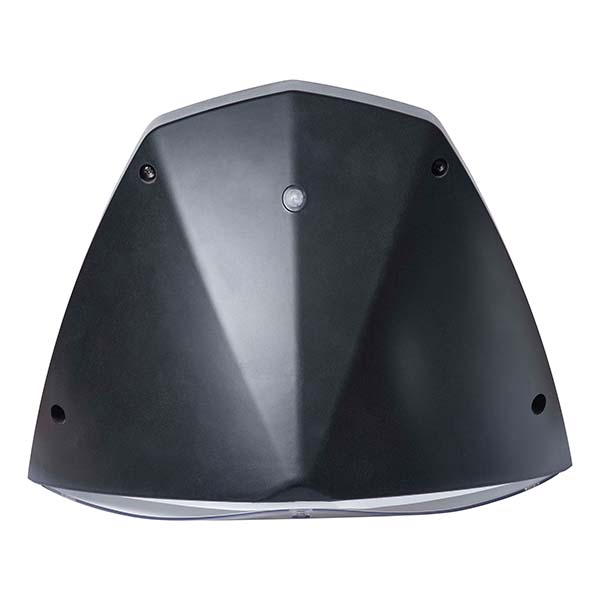

70120 - Lumo 2 CCT 14/17/21/24W LED Asymmetric Wallpack View product
Technical Specification
Volts (V)
220/240
Designed to be used where the aesthetics of the light fitting, along with a tough robust construction is needed. The fittings are IP66 and IK8 compliant, supplied complete with an opal diffuser for even light distribution. Available in Standard / Photocell / Emergency / Emergency Photocell versions.
Quantity
Download Specification
Full Specification
Downloads
Name
Lumo 13/16/18/20/25W LED CCT Asymmetric Wallpack
Volts (V)
220/240
Life Hours
50000
Switching Cycles
50000
Frequency (Hz)
50/60
LED Drive Current
78mA
Energy Consumption (kWh/1000h)
25
IP Rating
IP66
Height (mm)
238
Width (mm)
212
Depth (mm)
138
Commodity Code
9405423100
EAN
5013588115009
Outer Box Height (mm)
500
Outer Box Width (mm)
355
Outer Box Depth (mm)
280
Outer Box Qty
4
Outer Box Volume
0.0497
Individual Product Weight (kg)
1.9
CRI (Ra)
80
Lumens per Watt (lm/W)
123-133
Wattage (W)
13/16/18/20/25
Equivalent Wattage (W)
50
Colour Temperature (K)
3000/4000/6000
IK Rating
IK08
Minimum Order Quantity
1
Single Box Weight (kg)
2.2
Single box Height (mm)
260
Single box Width (mm)
235
Single Box Depth (mm)
160
Single Box Volume
0.00978
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED Wallpacks
EDATA Product Range
Lumo
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
13W = 1669 (3000K) / 1684 (4000K) / 1603 (6000K) - 16W = 2078 (3000K) / 2207 (4000K) / 2153 (6000K) - 18W = 2341 (3000K) / 2500 (4000K) / 2427 (6000K) - 20W = 2538 (3000K) / 2720 (4000K) / 2632 (6000K) - 25W = 3080 (3000K) / 3341 (4000K) / 3190 (6000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
Yes
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years
