Illumina Atlas

Illumina Atlas 120/160/200W LED High Bay - 120° Lens - 4000K

Code
11454
Next Delivery
28/12/2025 - 700 items
Technical Specification
Volts (V)
220/240
The Illumina Atlas Switchable Wattage High Bay is a highly efficient versatile LED luminaire, ideally suited to a wide range of industrial applications for both new installations and retrofit applications.
Download Specification
Full Specification
Downloads
Name
Illumina Atlas 120/160/200W LED High Bay - 120° Lens - 4000K
Volts (V)
220/240
Life Hours
70000
Beam Angle
120°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
200
IP Rating
IP65
Height (mm)
165
Diameter (mm)
330
Commodity Code
9405423990
EAN
5013588114545
Individual Product Weight (kg)
2.3
Lumens per Watt (lm/W)
145-162
Operating Temperature
-30°C - +50°C
LED Drive Current
131mA
Wattage (W)
120/160/200
Equivalent Wattage (W)
600
Colour Temperature (K)
4000
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
2.9
Single box Height (mm)
335
Single box Width (mm)
335
Single Box Depth (mm)
182
Single Box Volume
0.02042495
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED High Bay
EDATA Product Range
Illumina Atlas
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
19431 (120W) / 24436 (160W) / 28956 (200W)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Catalogue Page

Instructions

Photometric Data

Product Image

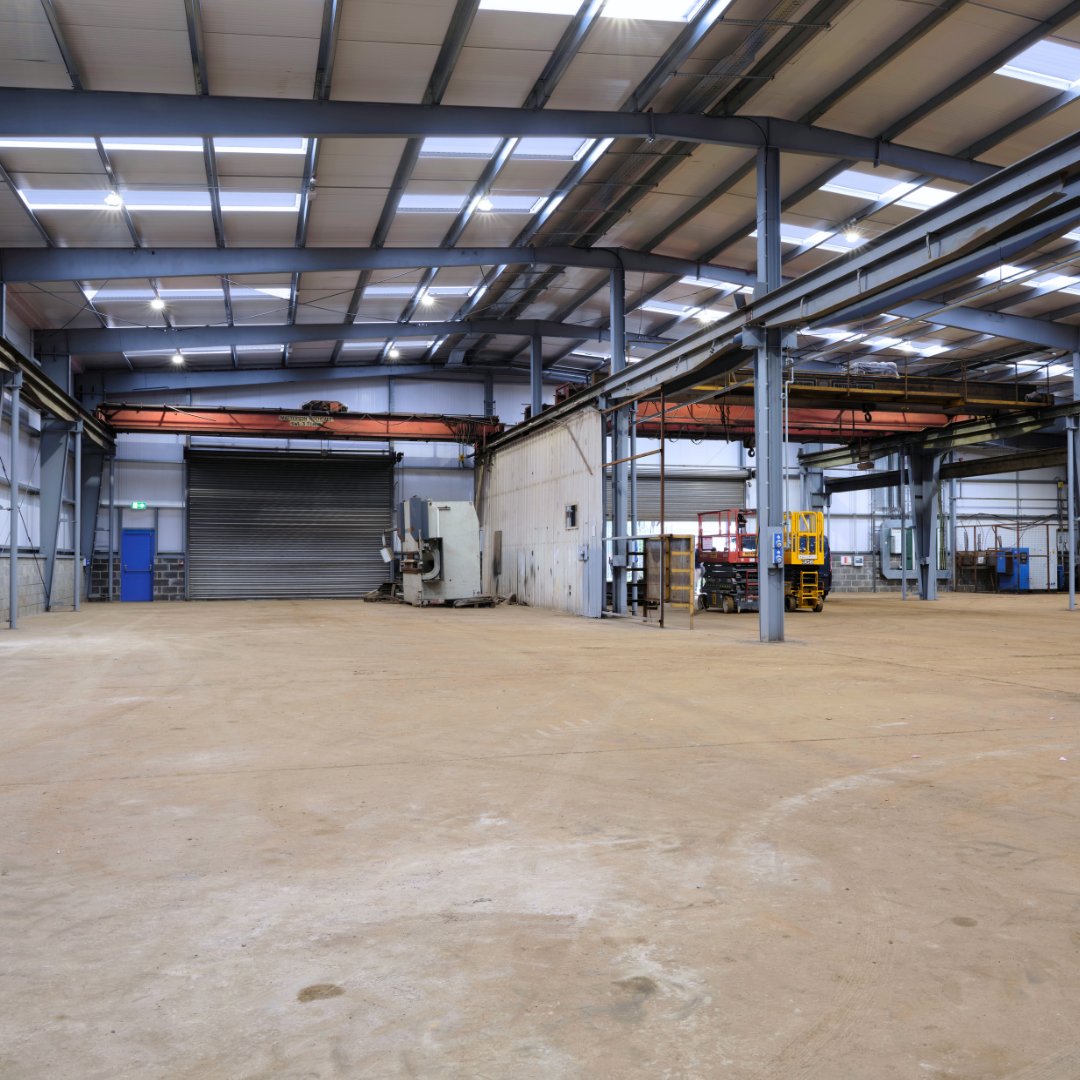

Case Study Image
