Illumina Atlas

Illumina Atlas 60/80/100W LED High Bay - 120° Lens - 4000K

Code
11450
Technical Specification
Volts (V)
220/240
Watts (W)
60/80/100
Colour Temp (K)
4000
Lumens (lm)
9689 (60W) / 12477 (80W) / 14841 (100W)
The Illumina Atlas Switchable Wattage High Bay is a highly efficient versatile LED luminaire, ideally suited to a wide range of industrial applications for both new installations and retrofit applications.
Download Specification
Full Specification
Downloads
Name
Illumina Atlas 60/80/100W LED High Bay - 120° Lens - 4000K
Volts (V)
220/240
Watts (W)
60/80/100
Colour Temp (K)
4000
Lumens (lm)
9689 (60W) / 12477 (80W) / 14841 (100W)
Life Hours
70000
Beam Angle
120°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
100
IP Rating
IP65
Height (mm)
156
Diameter (mm)
253
Commodity Code
9405423990
EAN
5013588114507
Country Of Origin
CN
UNSPSC Code
39111546
Individual Product Weight (kg)
1.8
Single Carton Weight (KG)
2.3
Single Carton Height (mm)
258
Single Carton Width (mm)
258
Single Carton Depth (mm)
168
Individual Volume
0.011182752
Impact Protection
IK10
Equivalent Watts (W)
250
Lumens per Watt (lm/W)
148-161
Product Application
Commercial / Industrial / Warehousing
Operating Temperature
-30°C - +50°C
Product Category
LED Luminaires - Not Plastic
LED Drive Current
129mA
Catalogue Page

Instructions

Photometric Data

Product Image

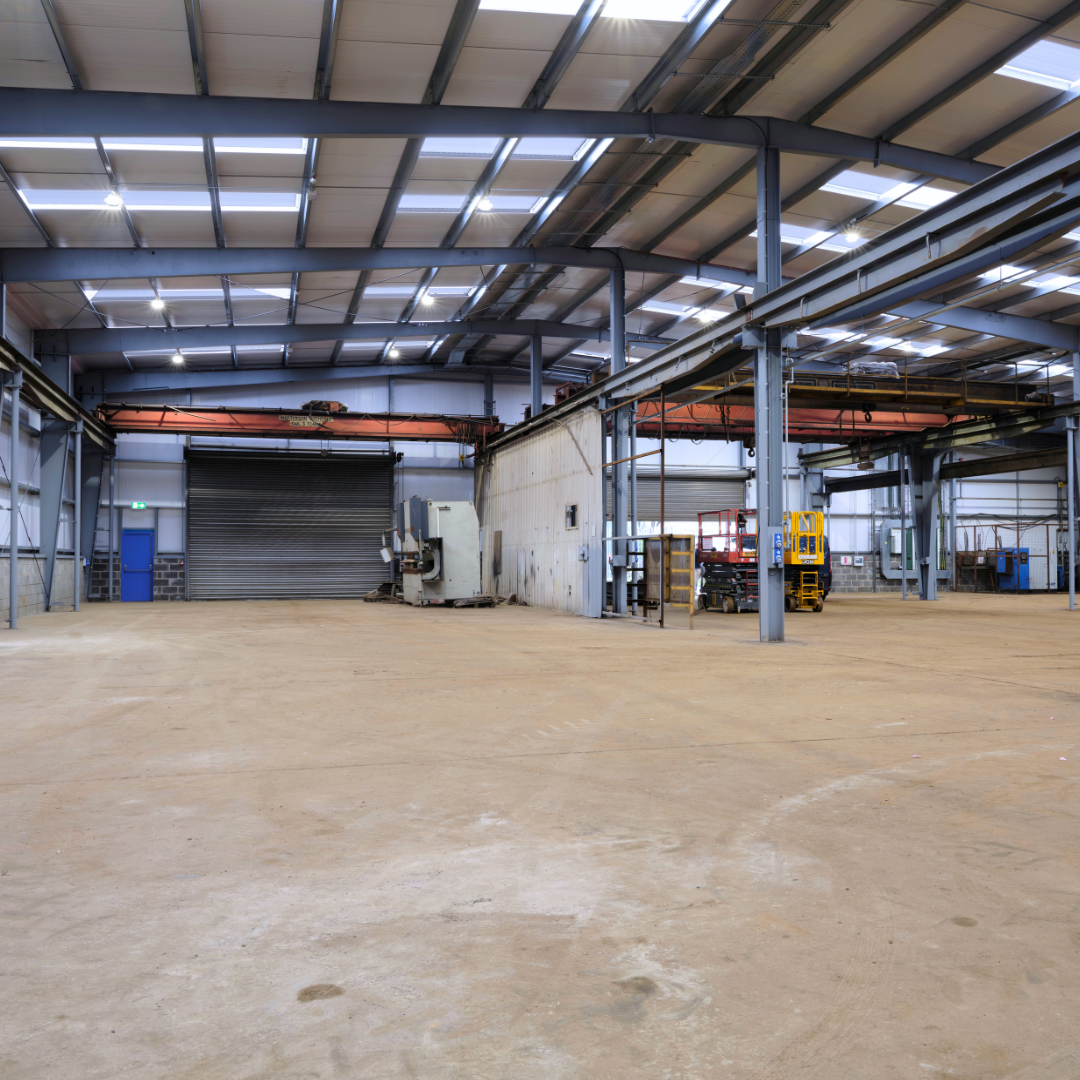

Case Study Image
