Illumina Atlas

Illumina Atlas 90/120/150W LED High Bay - 120° Lens - 4000K

Code
11452
Technical Specification
Volts (V)
220/240
Watts (W)
90/120/150
Colour Temp (K)
4000
Lumens (lm)
15282 (90W) / 19376 (120W) / 23158 (150W)
The Illumina Atlas Switchable Wattage High Bay is a highly efficient versatile LED luminaire, ideally suited to a wide range of industrial applications for both new installations and retrofit applications.
Download Specification
Full Specification
Downloads
Name
Illumina Atlas 90/120/150W LED High Bay - 120° Lens - 4000K
Volts (V)
220/240
Watts (W)
90/120/150
Colour Temp (K)
4000
Lumens (lm)
15282 (90W) / 19376 (120W) / 23158 (150W)
Life Hours
50000
Beam Angle
120°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
150
IP Rating
IP65
Height (mm)
161
Diameter (mm)
285
Commodity Code
9405423990
EAN
5013588114521
Country Of Origin
CN
UNSPSC Code
39111546
Individual Product Weight (kg)
2
Single Carton Weight (KG)
2.6
Single Carton Height (mm)
290
Single Carton Width (mm)
290
Single Carton Depth (mm)
174
Individual Volume
0.0146334
Impact Protection
IK10
Equivalent Watts (W)
400
Lumens per Watt (lm/W)
154-170
Product Application
Commercial / Industrial / Warehousing
Operating Temperature
-30°C - +50°C
Product Category
LED Luminaires - Not Plastic
LED Drive Current
120mA
Catalogue Page

Instructions

Photometric Data

Product Image

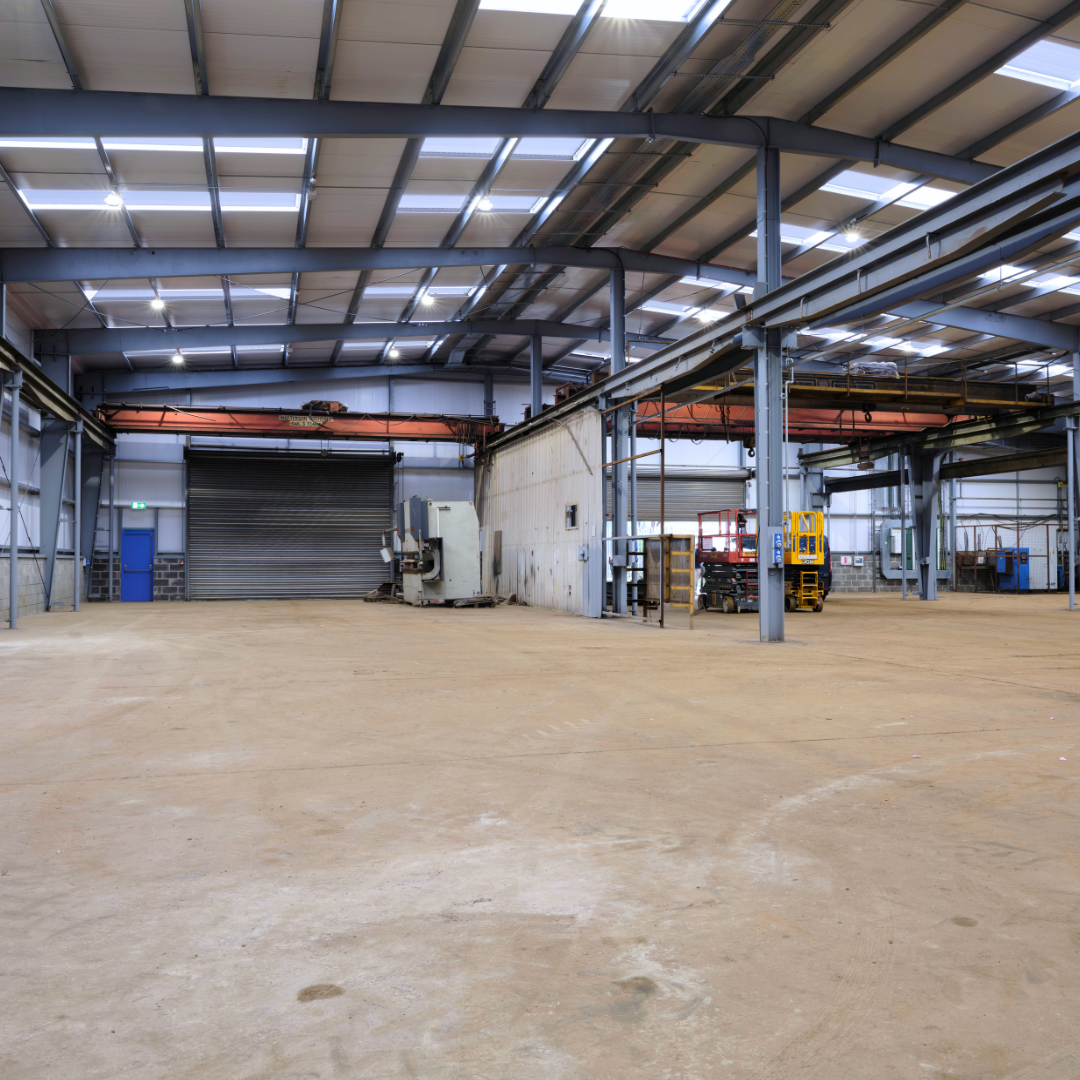

Case Study Image
