Illumina Atlas

Illumina Atlas 90/120/150W LED High Bay - 90° Lens - 4000K

Code
11453
Technical Specification
Volts (V)
220/240
The Illumina Atlas Switchable Wattage High Bay is a highly efficient versatile LED luminaire, ideally suited to a wide range of industrial applications for both new installations and retrofit applications.
Download Specification
Full Specification
Downloads
Name
Illumina Atlas 90/120/150W LED High Bay - 90° Lens - 4000K
Volts (V)
220/240
Life Hours
70000
Beam Angle
90°
CRI (Ra)
80
Guarantee
7 Years
Switching Cycles
100000
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
150
IP Rating
IP65
Height (mm)
161
Diameter (mm)
285
Commodity Code
9405423990
EAN
5013588114538
Individual Product Weight (kg)
2
Lumens per Watt (lm/W)
155-170
Operating Temperature
-30°C - +50°C
LED Drive Current
120mA
Wattage (W)
90/120/150
Equivalent Wattage (W)
400
Colour Temperature (K)
4000
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
2.6
Single box Height (mm)
290
Single box Width (mm)
290
Single Box Depth (mm)
174
Single Box Volume
0.0146334
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
LED High Bay
EDATA Product Range
Illumina Atlas
EDATA Order Unit
Unit
EDATA Quantity Interval
1
UOM For Battery Weight
KG
Lumen output (lm)
15318 (90W) / 19422 (120W) / 23213 (150W)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Catalogue Page

Instructions

Photometric Data

Product Image

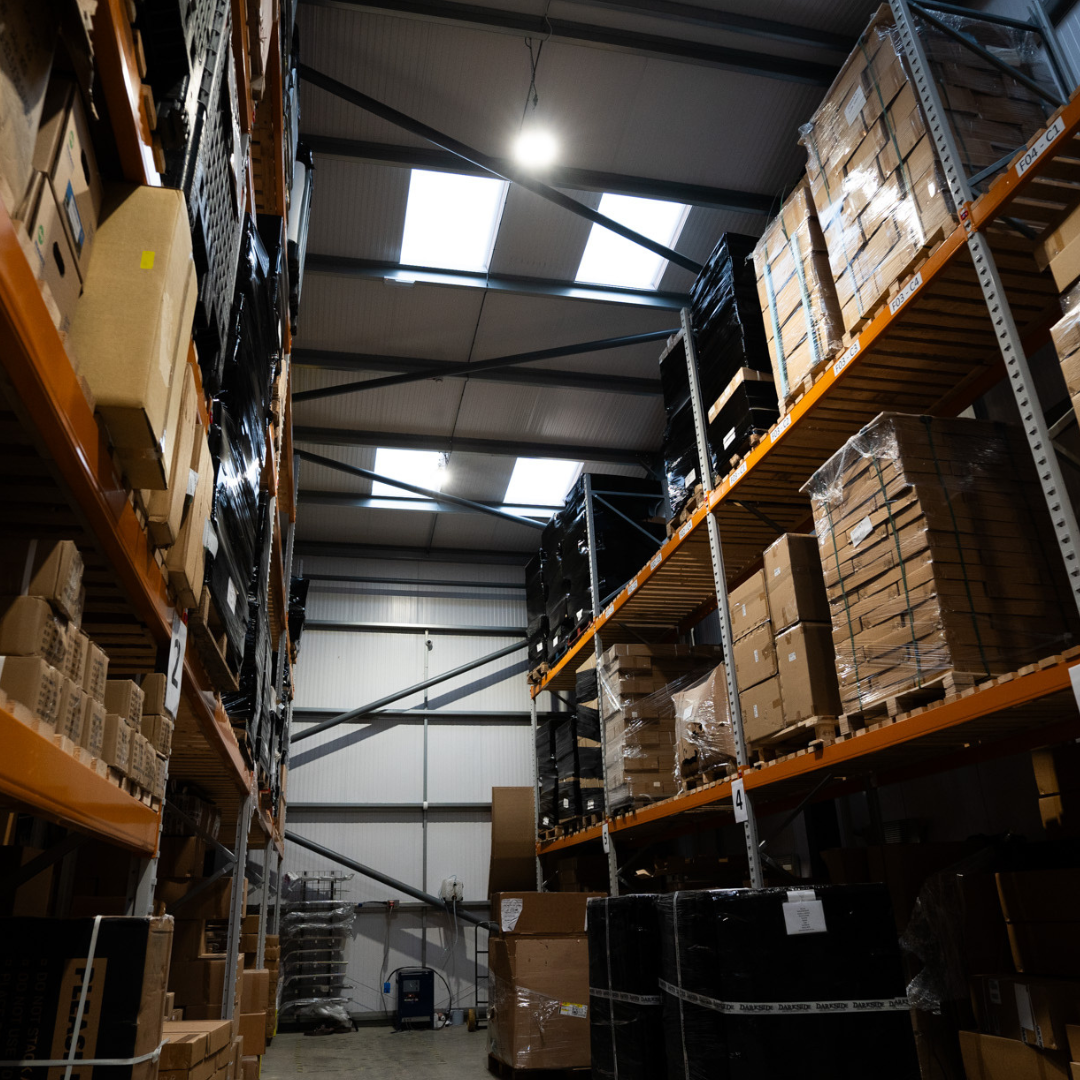

Case Study Image
