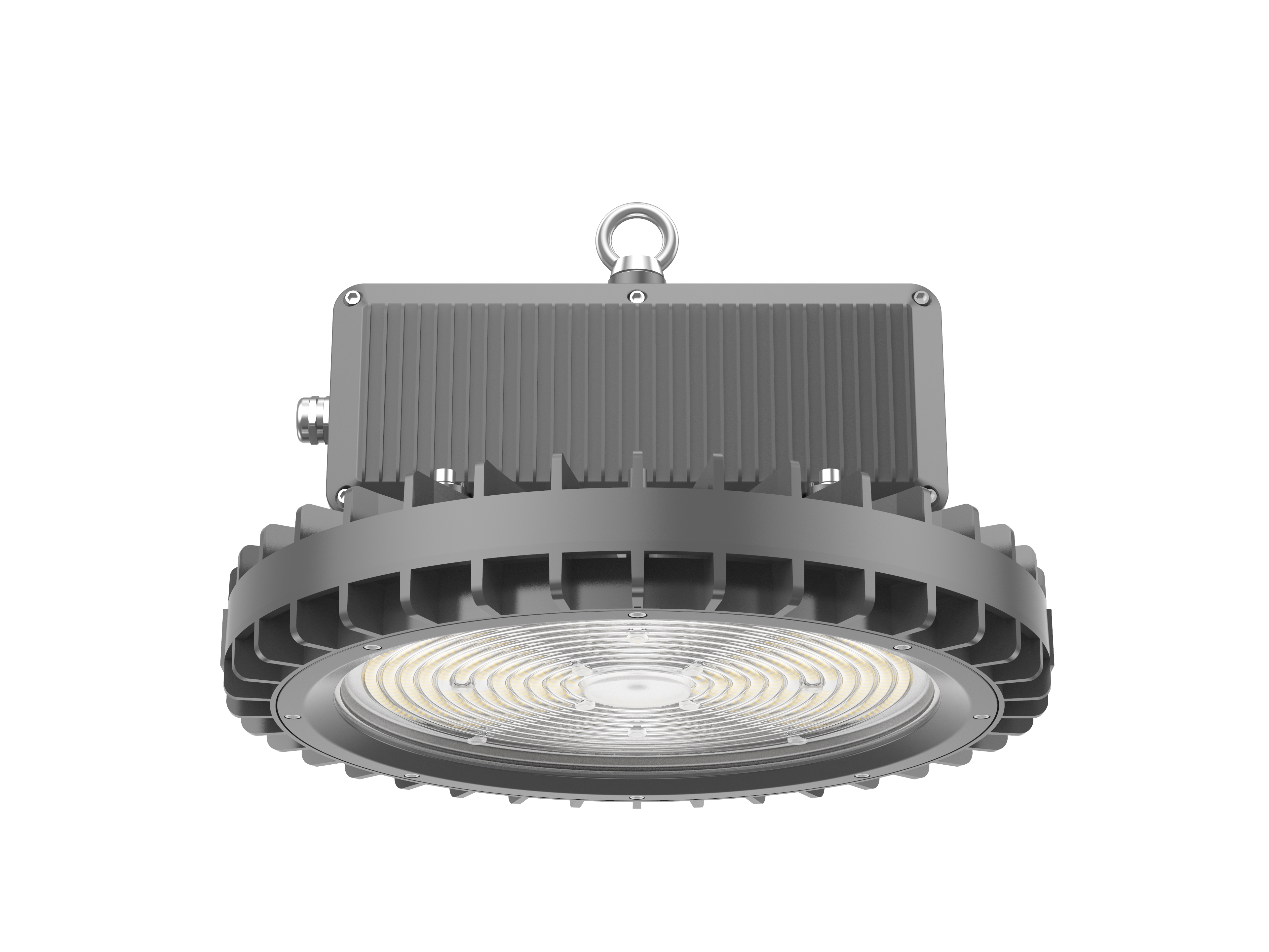

Illumina Calor V2 High Temperature High Bay

Illumina Calor V2 100/150/200W CCT High Temperature High Bay - 120° Lens

Code
70350
Next Delivery
15/03/2026 - 20 items
Technical Specification
Volts (V)
220/240
The Illumina Calor offers a sleek design coupled with high performance. With a high ambient temperature rating of 65°C, this fitting is perfect for applications where extreme high temperatures are encountered eg; foundries, steelworks and bottling plants.
Download Specification
Full Specification
Downloads
Name
Illumina Calor V2 100/150/200W CCT High Temperature High Bay - 120° Lens
Commodity Code
9405423990
EAN
5013588703503
Volts (V)
220/240
Life Hours
50000
Beam Angle
120°
CRI (Ra)
80
Switching Cycles
30000
Frequency (Hz)
50/60
LED Drive Current
85mA-126mA
Energy Consumption (kWh/1000h)
200
IP Rating
IP66
Height (mm)
262
Diameter (mm)
380
Electric Class
Class I
Individual Product Weight (kg)
6.6
Outer Box Weight (kg)
8.8
Outer Box Height (mm)
490
Outer Box Width (mm)
450
Outer Box Depth (mm)
260
Outer Box Volume
0.05733
Operating Temperature
-30°C to +65°C
Surge Protection
4kV
Primary Material
Die Cast Aluminium
Lumens per Watt (lm/W)
150-154
Wattage (W)
100/150/200
Colour Temperature (K)
4000/5000
Candelas
10457-10759 (at 200W)
IK Rating
IK08
Minimum Order Quantity
1
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
100W = 14889 (4000K) - 14500 (5000K) / 150W = 22333 (4000K) - 21750 (5000K) / 200W = 29777 (4000K) - 29000 (5000K)
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
LED High Bays
EDATA Product Range
Illumina Calor V2
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years (2 Years On Site)
