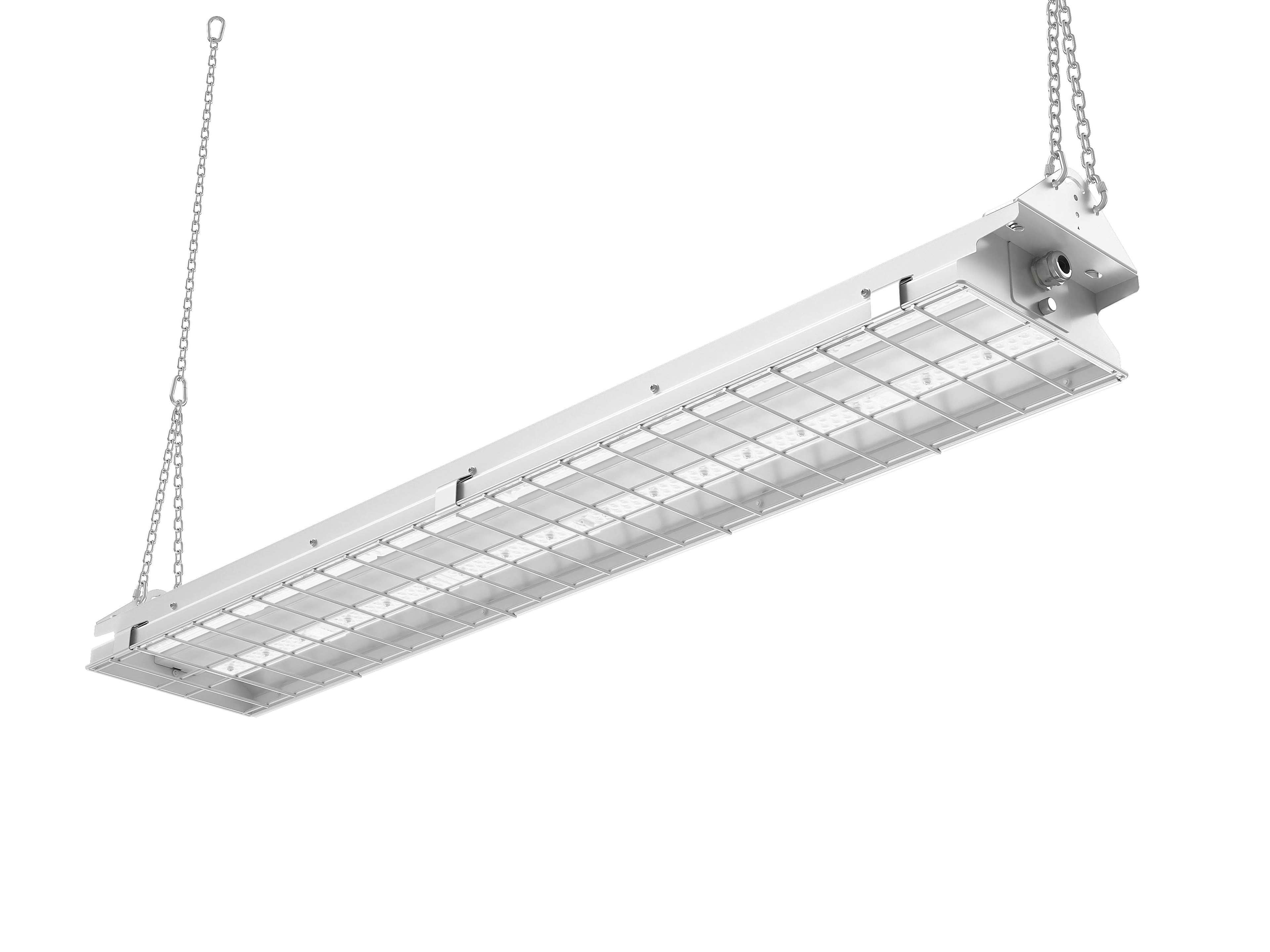

Illumina Icon Wattage Switchable Linear LED High Bay

Illumina Icon 100/150/200W Symmetric High Bay with DALI Dimming

Code
70360
Technical Specification
Volts (V)
220/240
The Illumina Icon is a wattage switchable high bay which is suitable for sports lighting areas that require low glare. The Icon is DALI dimmable as standard, and is perfect for badminton courts, cricket lanes, and various other sports lighting applications.
Download Specification
Full Specification
Downloads
Name
Illumina Icon 100/150/200W Symmetric High Bay with DALI Dimming
EAN
5013588001951
Commodity Code
9405423990
Volts (V)
220/240
Life Hours
50000
Beam Angle
90°
CRI (Ra)
80
Switching Cycles
30000
Frequency (Hz)
50/60
LED Drive Current
79mA
Energy Consumption (kWh/1000h)
200
Electric Class
Class I
Height (mm)
1320
Width (mm)
238
Depth (mm)
76
Individual Product Weight (kg)
8.6
Outer Box Weight (kg)
9.9
Outer Box Height (mm)
1390
Outer Box Width (mm)
260
Outer Box Depth (mm)
110
Outer Box Volume
0.039754
Dimming Option
DALI
Lumens per Watt (lm/W)
154
Surge Protection
6kV
IP Rating
IP23
Wattage (W)
100/150/200
Equivalent Wattage (W)
500
Colour Temperature (K)
4000
Candelas
20386
IK Rating
IK10
Minimum Order Quantity
1
Single Box Weight (kg)
9.9
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
UOM For Battery Weight
KG
Lumen output (lm)
15405 (100W) / 23128 (150W) / 30810 (200W)
Dimmable
Yes
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
No
Decorative
No
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
LED High Bays
EDATA Product Range
Illumina Icon
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
7 Years (2 Years On Site)
