LED Metal Halide

LED 29W ES Metal Halide/SON Lamp - 4000K (70W Alternative)

Code
61001
Technical Specification
Volts (V)
220/240
Watts (W)
29
Cap
ES
Colour Temp (K)
4000
Lumens (lm)
7745
Energy Rating
A
BELL LED Metal Halide/SON equivalent lamps offer a simple, cost-effective LED solution with a quick return on investment, designed to replace High-Intensity Discharge (HID) lamps. This next-generation LED post-top lighting provides all the advantages of LED-to-HID replacement, such as energy efficiency and long lifespan, while delivering immediate savings with a low upfront cost. BELL LED Metal Halide/SON equivalent lamps are engineered to match the size and light distribution of traditional HID lamps, and with our high-power LED filament technology, the difference is seamless. Additionally, their unique IP65-rated design allows them to be used in both indoor and outdoor applications.
Download Specification
Full Specification
Name
LED 29W ES Metal Halide/SON Lamp - 4000K (70W Alternative)
Volts (V)
220/240
Watts (W)
29
Cap
ES
Colour Temp (K)
4000
Lumens (lm)
7745
Lumens per Watt (lm/W)
267
Equivalent Watts (W)
70
Life Hours
50000
Beam Angle
360°
Energy Rating
A
CRI (Ra)
70
Switching Cycles
20000
Frequency (Hz)
50/60
LED Drive Current
60mA
Energy Consumption (kWh/1000h)
28
Height (mm)
223
Width (mm)
46
Length (mm)
46
Diameter (mm)
46
EAN
5013588610016
Country Of Origin
CN
Commodity Code
8539322000
Individual Product Weight (kg)
0.16
Single Carton Weight (KG)
0.211
Single Carton Height (mm)
245
Single Carton Width (mm)
60
Single Carton Depth (mm)
60
Individual Volume
0.000882
Outer Box Weight (kg)
0.301
Outer Box Height (mm)
255
Outer Box Width (mm)
237
Outer Box Depth (mm)
171
Outer Box Qty
6
Outer Box Volume
0.010334385
EPREL Registration Number
2122931
Product Category
Mercury or Sodium Vapour Lamps
Outer Carton Barcode
6100100000006
Product Application
LED Metal Halide Lamps
Guarantee
5 Years
Surge Protection
2kV

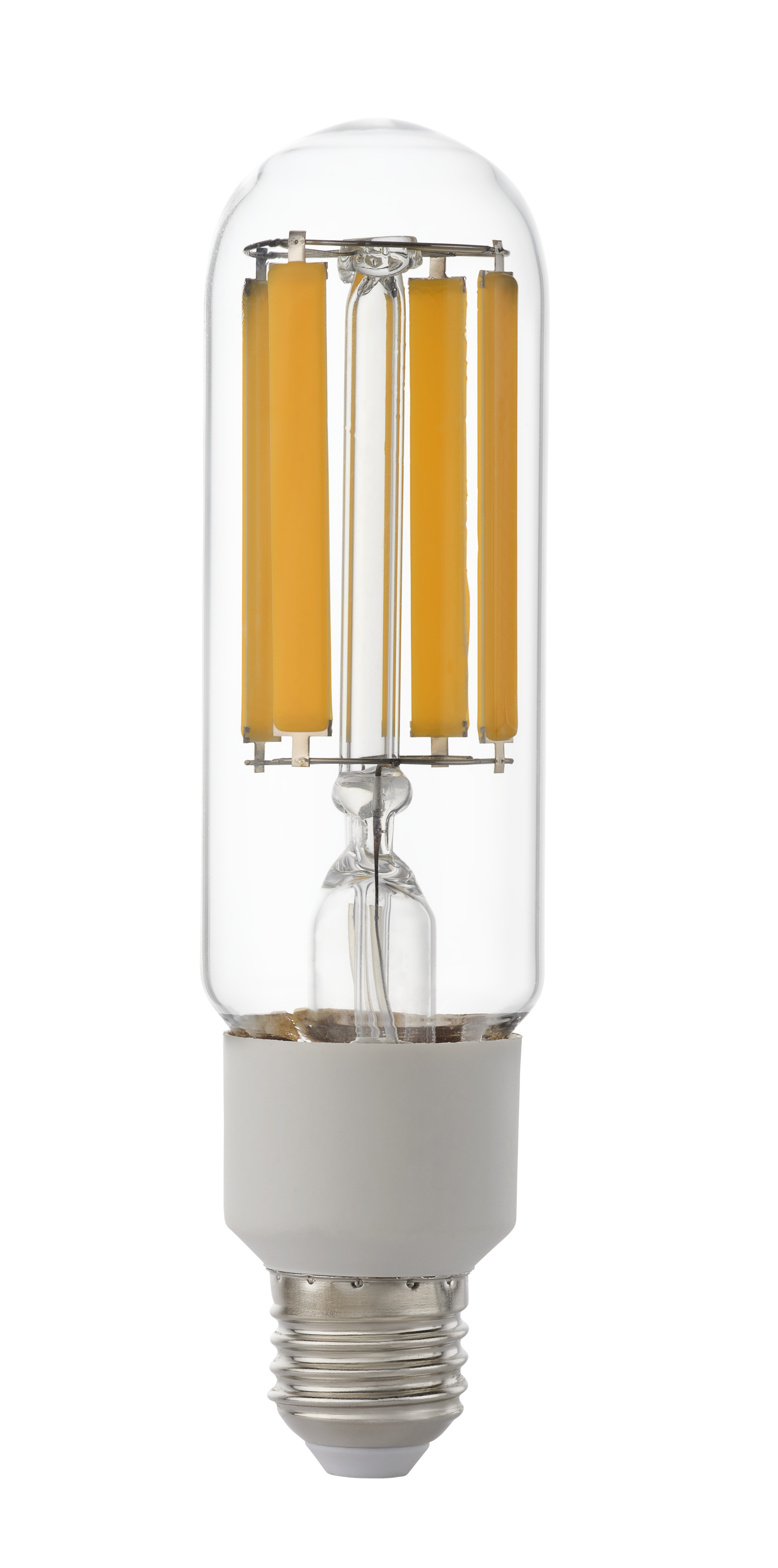

Product Image
