LED G9

LED 2.5W Open/Enclosed Dimmable G9 Pro Capsule - 2700K

Code
05674V2
Next Delivery
05/03/2026 - 16,000 items
Technical Specification
Volts (V)
240
Cap
G9
Energy Rating
F
Our sleek looking LED G9 Capsules can be used in both open & closed fixtures. The Opal finish enables them to seamlessly blend into any light fixture while providing a high light output.
Download Specification
Full Specification
Downloads
Name
LED 2.5W Open/Enclosed Dimmable G9 Pro Capsule - 2700K
Frequency (Hz)
50/60
Energy Consumption (kWh/1000h)
3
Commodity Code
8539520000
EAN
5063695004796
Volts (V)
240
Cap
G9
Life Hours
20000
Beam Angle
300°
CRI (Ra)
80
Height (mm)
55
Width (mm)
18
Depth (mm)
12
Lumens per Watt (lm/W)
108
Energy Rating
F
Individual Product Weight (kg)
0.0076
Inner Box Weight (kg)
0.15
Inner Box Height (mm)
118
Inner Box Width (mm)
52
Inner Box Depth (mm)
65
Outer Box Weight (kg)
2.5
Outer Box Height (mm)
275
Outer Box Width (mm)
130
Outer Box Depth (mm)
280
Inner Box Qty
10
Outer Box Qty
200
Outer Box Volume
0.01001
Inner Box Volume
0.0004
Wattage (W)
2.5
Colour Temperature (K)
2700
Candelas
22
Minimum Order Quantity
1
Single Box Weight (kg)
0.01
Single box Height (mm)
60
Single box Width (mm)
20
Single Box Depth (mm)
20
Single Box Volume
0.00002
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Order Unit
Unit
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
270
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Dimmable
Yes
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
Yes
Decorative
Yes
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
EDATA Product Family
Lamps
EDATA Product Range
LED Capsules
EDATA Quantity Interval
1
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
Domestic External Lighting
No
Retrofit Solutions
No
Apex
No
Cityline
No
Alto Street Light
No
Apex Dura CCT
No
Apex Mentor
No
Apex Ultra CCT
No
Arial Linus
No
Skyline Virtus CCT
No
GU10
No
Spectrum Downlight
No
Muro Wallpack
No
Warranty
3 Years
Linears
No
Skyline Target
No
Standard Deviation Colour Matching
6-step MacAdam ellipse
Catalogue Page

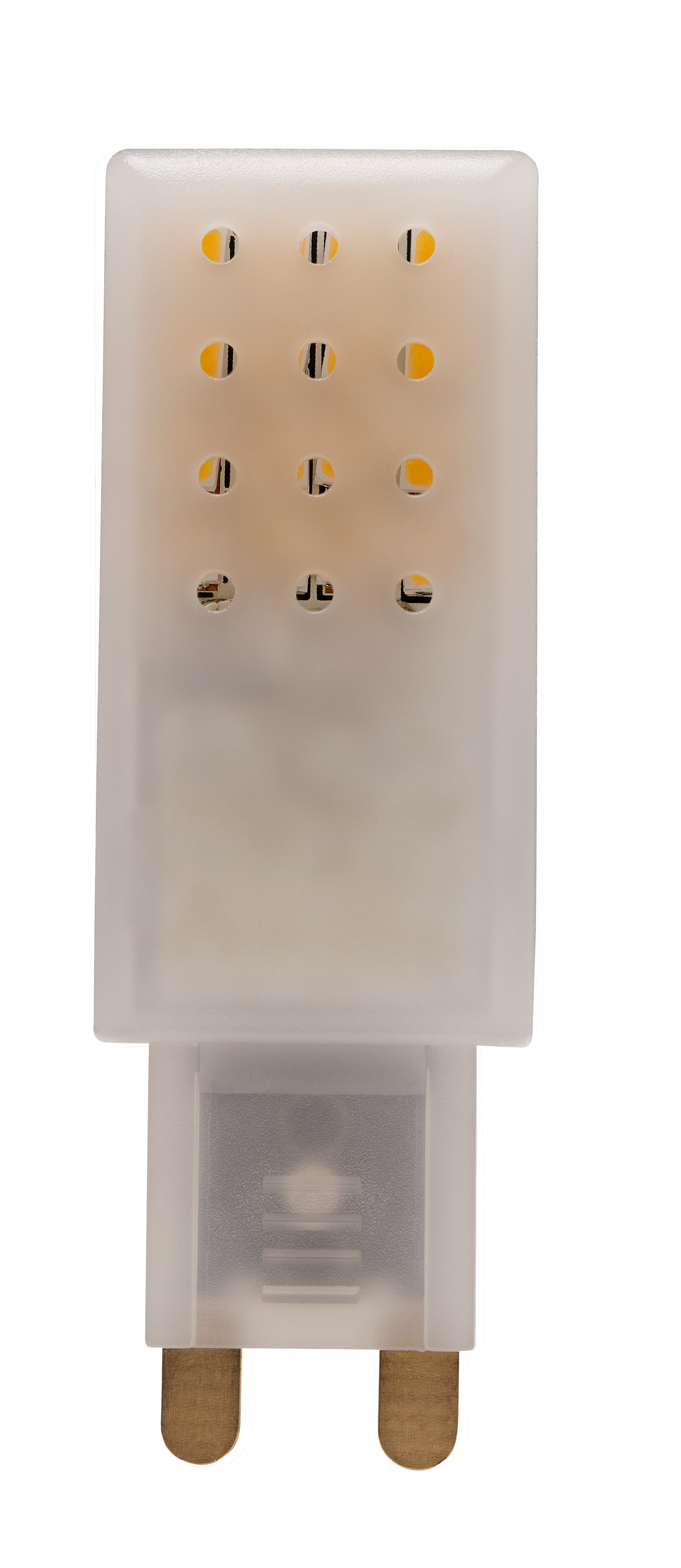

Product Image
