LED G9

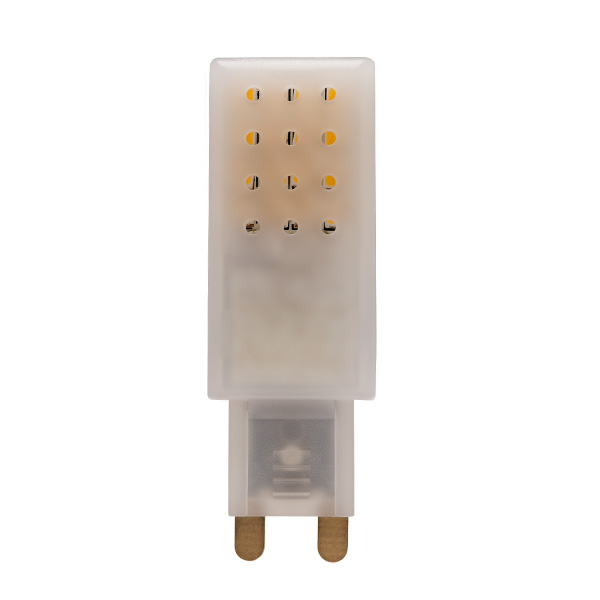

LED 2W Open/Enclosed G9 Capsule - 2700K

Code
05674
Stock
Discontinued
This product has been discontinued. Please see our alternative listed below:
05674V2 - LED 2.5W Open/Enclosed Dimmable G9 Pro Capsule - 2700K View product
Technical Specification
Volts (V)
240
Cap
G9
Energy Rating
F
Our sleek looking LED G9 Capsules can be used in both open & closed fixtures. The Opal finish enables them to seamlessly blend into any light fixture while providing a high light output.
Quantity
Download Specification
Full Specification
Downloads
Name
LED 2W Open/Enclosed G9 Capsule - 2700K
Volts (V)
240
Cap
G9
Life Hours
20000
Beam Angle
330°
Energy Rating
F
CRI (Ra)
85
Guarantee
3 Years
Switching Cycles
15000
Energy Consumption (kWh/1000h)
2
Commodity Code
8539520000
EAN
5013588056746
Outer Box Qty
200
Height (mm)
55
Individual Product Weight (kg)
0.005
Inner Box Height (mm)
118
Inner Box Width (mm)
52
Inner Box Depth (mm)
65
Outer Box Weight (kg)
2.5
Outer Box Height (mm)
275
Outer Box Width (mm)
130
Outer Box Depth (mm)
280
Inner Box Qty
10
Outer Box Volume
0.01001
Inner Box Volume
0.0004
Lumens per Watt (lm/W)
105
Frequency (Hz)
50/60
Width (mm)
16
Depth (mm)
10
Wattage (W)
2
Equivalent Wattage (W)
28
Colour Temperature (K)
2700
Minimum Order Quantity
1
Single Box Weight (kg)
0.0095
Single box Height (mm)
60
Single box Width (mm)
20
Single Box Depth (mm)
20
Single Box Volume
0.00002
EDATA Manufacturer ID Number
213673507
EDATA Manufacturer Name
BELL Lighting
EDATA Brand
BELL Lighting
EDATA Product Family
Lamps
EDATA Product Range
LED Capsules
EDATA Order Unit
Unit
EDATA Quantity Interval
1
EPREL Product Type
LIGHT_SOURCE_VERSION
EPREL - Registered As
Importer
UOM For Battery Weight
KG
Mains or Non-Mains
Mains
Connected Light Source
No
Colour Tunable Light Source
No
High Luminance Light Source
No
Anti-Glare Shield
No
Lumen output (lm)
210
Directional or Non-Directional
Non-directional
UOM For Packaging Dimensions
MM
UOM For Packaging Weights
KG
Made to Order
No
Arial Backlit
No
Arial Backlit IP65
No
Arial Backlit Plus
No
Arial Multi Plus
No
Arial T-Pro Multi
No
Candle
No
Capsule
Yes
Decorative
Yes
Dura Batten
No
Dura V2 Batten
No
Filament
No
Firestay Integrated
No
Firestay Integrated CCT
No
Firestay Integrated CCT V2
No
Firestay Slim
No
Firestay with PIR
No
Fluorescent
No
Genesis Lamp
No
GLS
No
Globe
No
Halogen
No
Incandescent
No
Lumo Wallpack
No
Lumo 2 Wallpack
No
Luna GU10 Spike Light
No
Luna GU10 Wall Light
No
Mentor Batten
No
Mentor V2 Batten
No
Platinum
No
Retro Lantern
No
Round
No
Skyline Mini
No
Squirrel Cage
No
Spectrum Bulkhead
No
Spectrum Exit Blade
No
Spectrum Exit Sign
No
Spectrum High Power Bulkhead
No
Spectrum Twin Spot
No
Tubes
No
Ultra Batten
No
Ultra V2 Batten
No
Single Box Packaging Material
Paper or cardboard
Inner Box Packaging Material
Paper or cardboard
Outer Box Packaging Material
Paper or cardboard
